5 Placement Heads
5.1 CPP Head
82 Technical Training SIPLACE TX-Series 10/2016

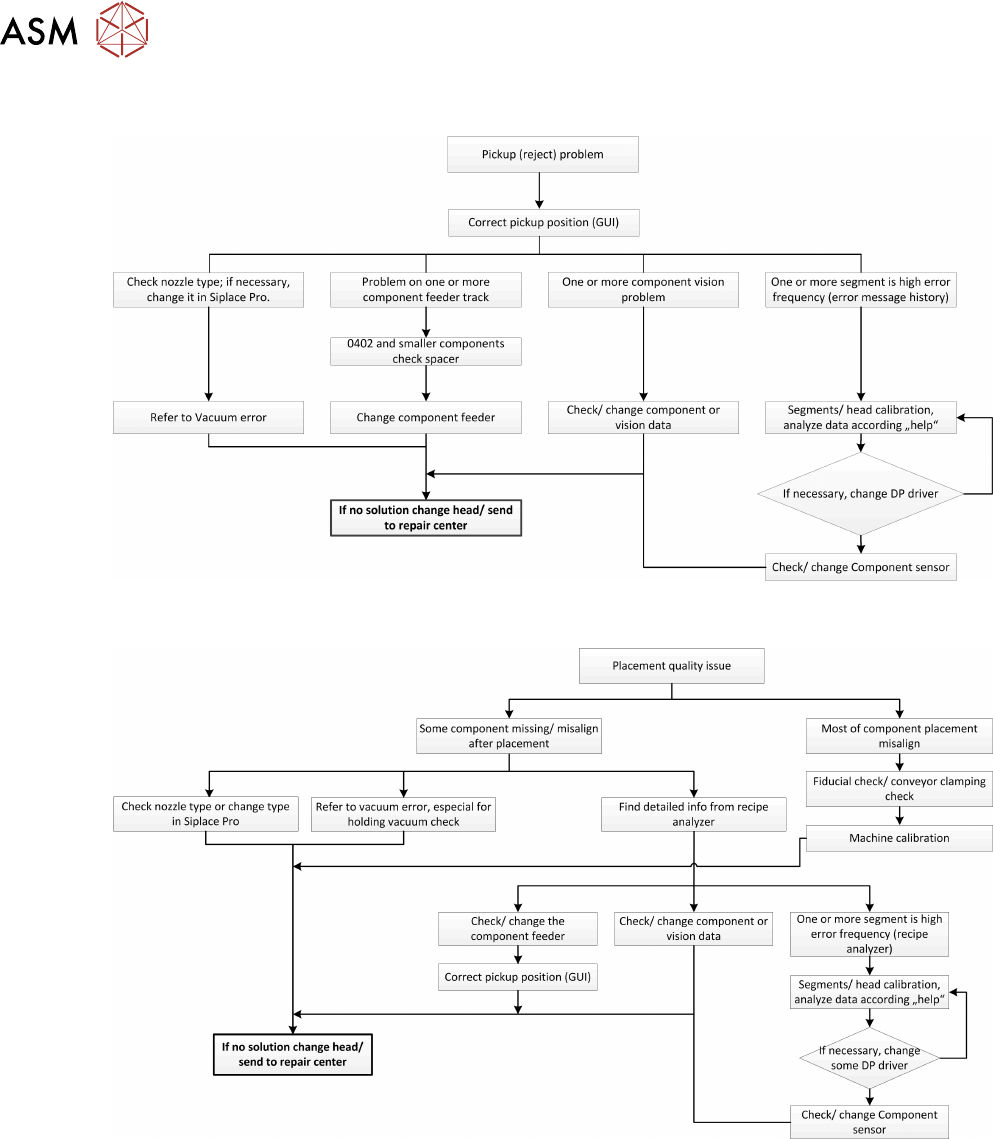

5.1.8.6 Pick Up Problem (High Reject Rate)
5.1.8.7 Placement Quality Issue
5 Placement Heads
5.1 CPP Head
Technical Training SIPLACE TX-Series 10/2016 83
5.1.9 Error List and Maintenance
5.1.9.1 Common Error List
No. Code Error Description Possible Cause Action
1 34439 Component present
before pick up
●
Nozzle dirty
●
Air kiss too low
●
Sticky component
●
Remove component and
clean/replace nozzle
●
Check air kiss circuit
●
Check relevant component
and exchange if necessary
34453 Component present
after placement
34459 Component present
after reject
34424 Cannot reject
component, segment:
2 34440 Component not
present after pick up
●
Nozzle leak / va-
cuum low
●
Wrong nozzle
type
●
Components /
feeder not ready
●
Inspect nozzle and replace
it if necessary / check
vacuum accordingly
●
Inspect and replace
relevant nozzle
●
Check feeder status of
relevant component
3 34488 Placement head is un-
able to continue
●
Head / axis issue
●
Components /
feeder not ready
●
Check error chain
messages, reference run
relevant head / axis
●
Check error chain
messages, check feeder
status and relevant
component
32570 Machine has stopped:
Placement head is
unable to continue
4 30820 Nozzle is not refer-
enced, segment:
●
Nozzle incorrect
●
DP drive problem
●
Check nozzle and replace
it if necessary
●
Check relevant DP drive,
execute reference run
5 34450 Component not
present before
placement
●
Worn nozzle /
leak
●
Holding vacuum
too low
●
Components /
feeder not ready
●
Inspect Nozzle and replace
it if necessary
●
Check holding vacuum
circuit accordingly
●
Check feeder status and
relevant component
6 32574 Machine has stopped:
Reference run has
failed
●
Head / axis issue
●
Wrong nozzle set
●
Implement reference run
for error inspection
●
Inspect nozzle and replace
it if necessary
●
Check error chain
messages
7 33365 Nozzle dirty Dirty / worn nozzle
●
Inspect nozzle and replace
it if necessary
●
Check error chain
messages
33367 Nozzle worn
8 30480 Component sensor
soiled
Defective / dirty
component sensor
●
Inspect component sensor,
clean or replace it if
necessary
30728 Component sensor
coated
30821 Component sensor is
heavily soiled
5 Placement Heads
5.1 CPP Head
84 Technical Training SIPLACE TX-Series 10/2016
No. Code Error Description Possible Cause Action
9 30524 Cannot reference DP
axis, segment:
DP drive defect
●
Inspect DP drive and
replace it if necessary
●
Check error chain
messages
10 30573 Skipping segment after
positioning error,
segment:
●
DP drive high
temp
●
DP drive defect
●
Try to enable relevant DP
drive, Inspect DP drive and
replace it if necessary
●
Check error chain
messages
11 30624 Nozzle scan failed
●
Dirty nozzle
●
Air kiss too low
●
Inspect nozzle and replace
it if necessary
●
Check error chain
messages
●
Check air kiss circuit
34401 Cannot scan nozzle
33368 Nozzle scanning
unsuccessful
