Test Research, Inc. 8 TR7600 SI II Series User G uide – Maintenance 1.8 Right Side View o f the System Figure 8: Right Side Vie w 1) Right Modul e Board Box 2) Emergency Stop 3) Right Gate
Test Research, Inc.
TR7600 SIII Series User Guide – Maintenance 7
1.7 Left Side View of the System
Figure 7: Left Side View
1) Left Module Board Box
2) Left Gate
3) Emergency Stop
4) Adjustable Computer Table Lock
Test Research, Inc.
8 TR7600 SIII Series User Guide – Maintenance
1.8 Right Side View of the System
Figure 8: Right Side View
1) Right Module Board Box
2) Emergency Stop
3) Right Gate
Test Research, Inc.
TR7600 SIII Series User Guide – Maintenance 9

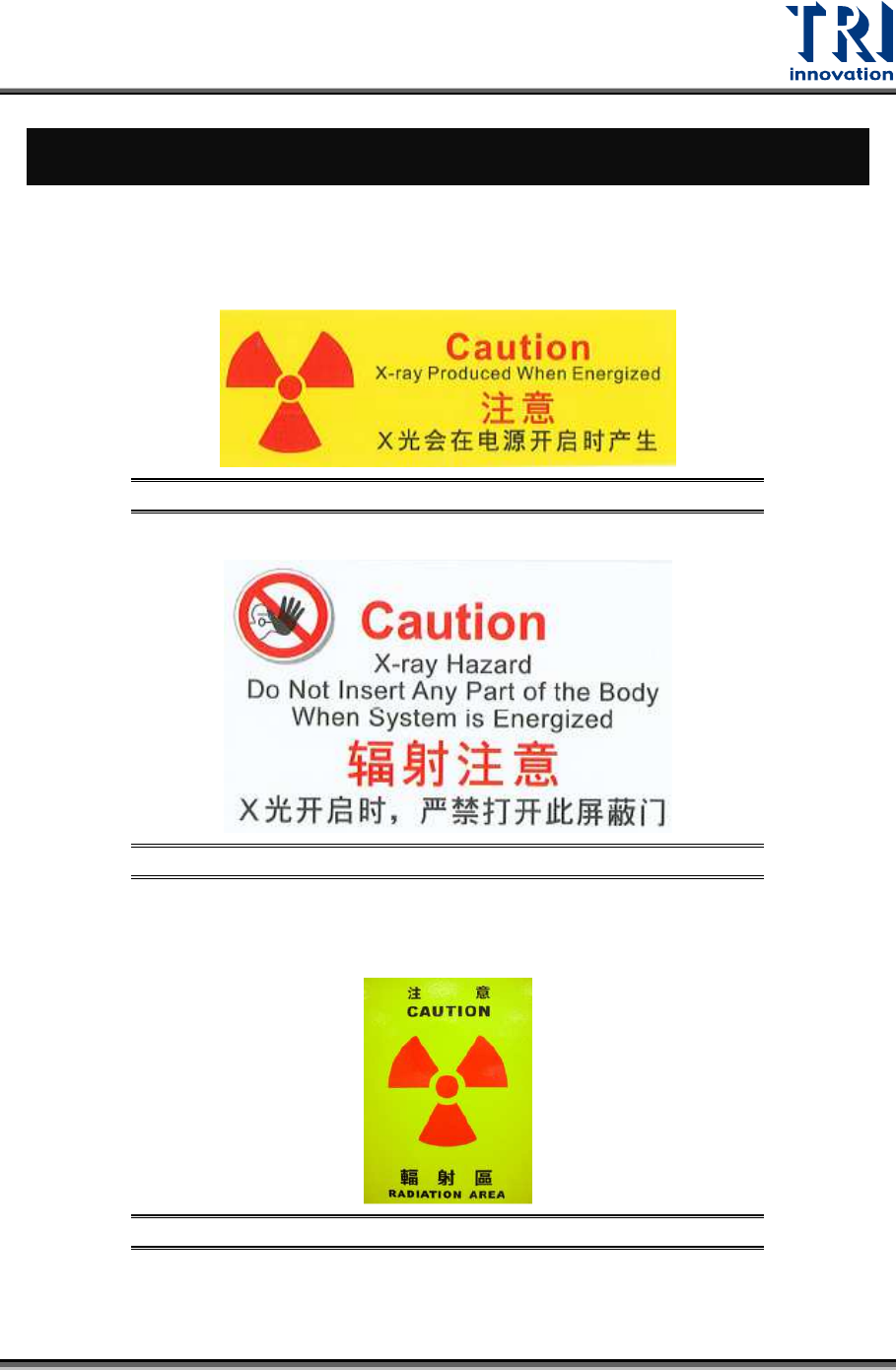

2 SAFETY LABEL
2.1 Introduction of Safety Labels
X-Ray Warning Label: Please note that there is an X-ray source inside. When the X-ray
is turned on, DO NOT opens the door.
Figure 9: X-Ray Caution
Figure 10: X-Ray Hazard Caution
Radiation Area: Notice that there is potential radiation exposure in this area.
Figure 11: Radiation Area
