Test Research, Inc.
30 TR7600 SIII Series User Guide – Maintenance

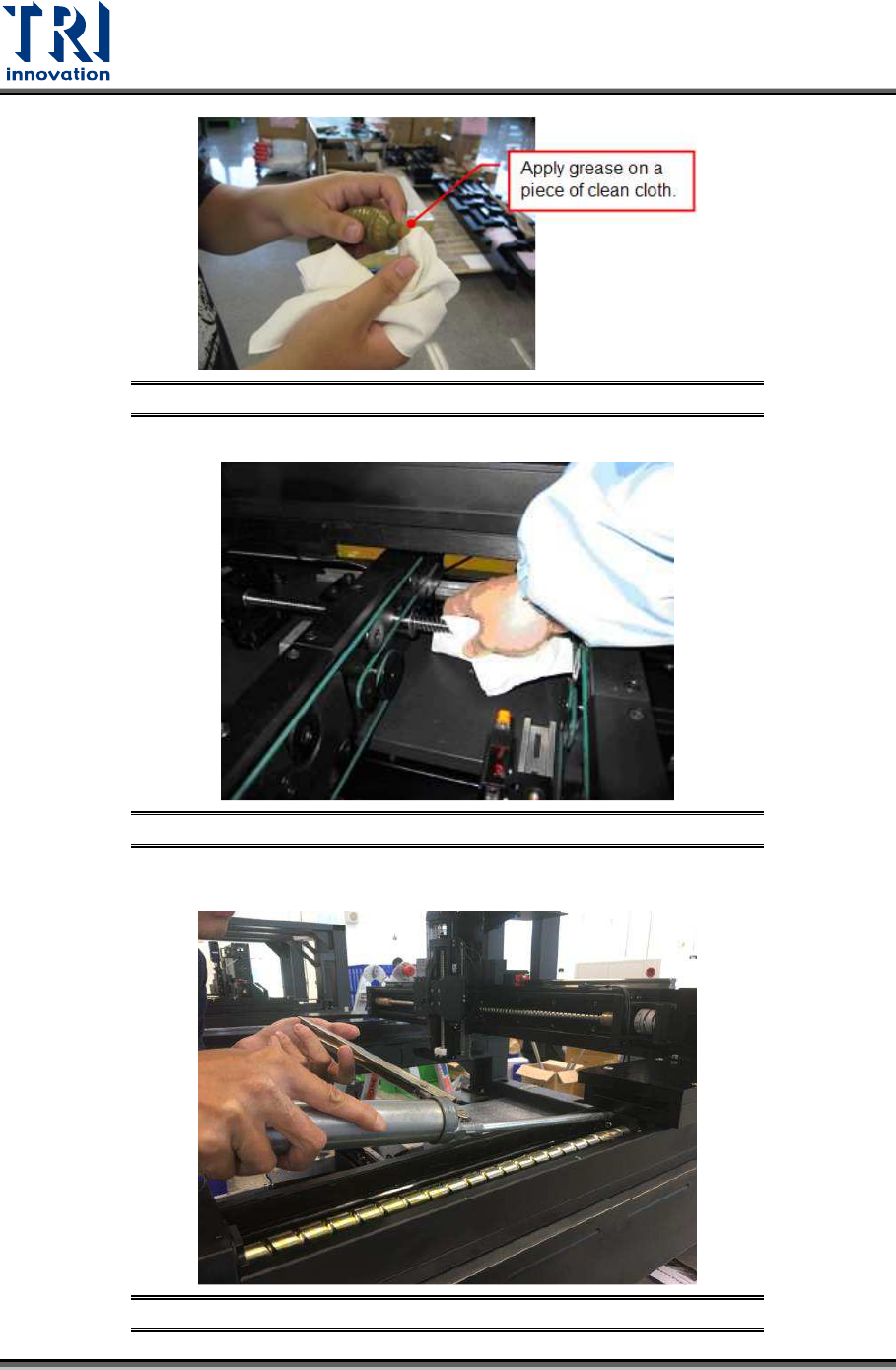

Figure 48: Apply Grease to Cloth
Figure 49: Apply Cloth to Track & Linear Guide
Figure 50: Apply Grease to Ball Screws
Test Research, Inc.
TR7600 SIII Series User Guide – Maintenance 31

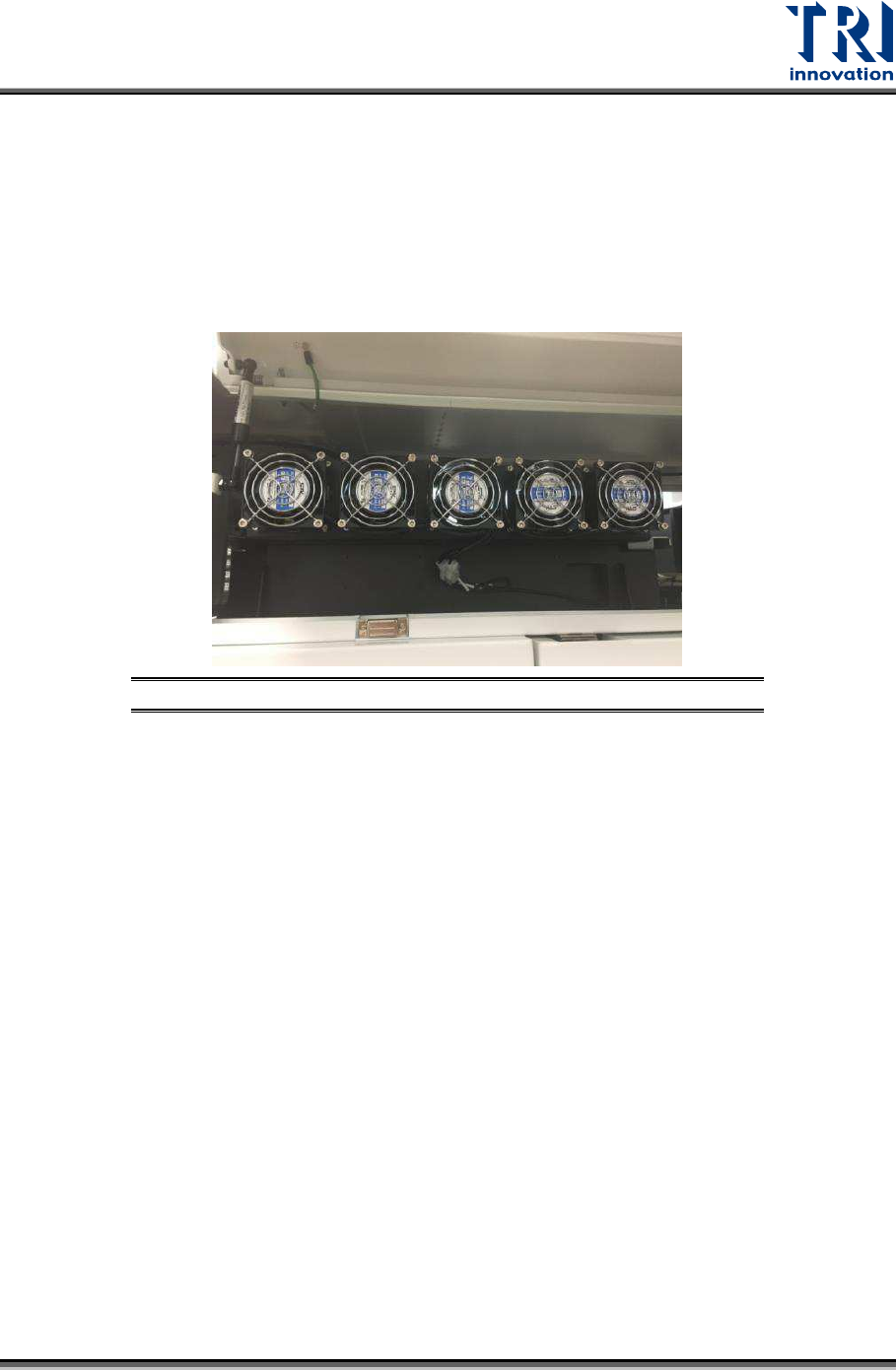

6.3 Clean Back Fans
Clean the dust on the back fans with a compressed air gun.
6.4 Clean Main PC Dust Filter and Fan
Use compressed air gun to clean dirt and dust on Main PC filter and fan in order to prevent
the computer from overheating.
Figure 51: Use Air Gun to Clean Dirt and Dust
6.5 Clean LCD Monitor
Use a clean soft cloth to wipe the LCD Monitor.
Test Research, Inc.
32 TR7600 SIII Series User Guide – Maintenance
7 Q
UARTERLY
M
AINTENANCE
Warning: Except for the parts specifically mentioned, the power
MUST be turned off during maintenance. Failure to do so may cause
mechanical or electrical damage.
Besides the daily, weekly and monthly maintenance activities, users also need to perform
maintenance activities discussed below during quarterly maintenance.
7.1 Clean and Lubricate X-Y Tables
NOTE: In order not to damage the mechanical units and to prolong the
lifespan of the mechanical units, use the grease pump and grease when
maintaining the ball screw and the linear guide way.
Before performing this operation, users must ensure that:
1) System’s power is turned off.
2) Emergency stop is enabled. This can ensure the safety of users when the power is
turned on again.
Tools
7.1.1
1) Screwdriver: about 10 cm length.
2) Soft Cleaning Cloth
3) Grease Pump

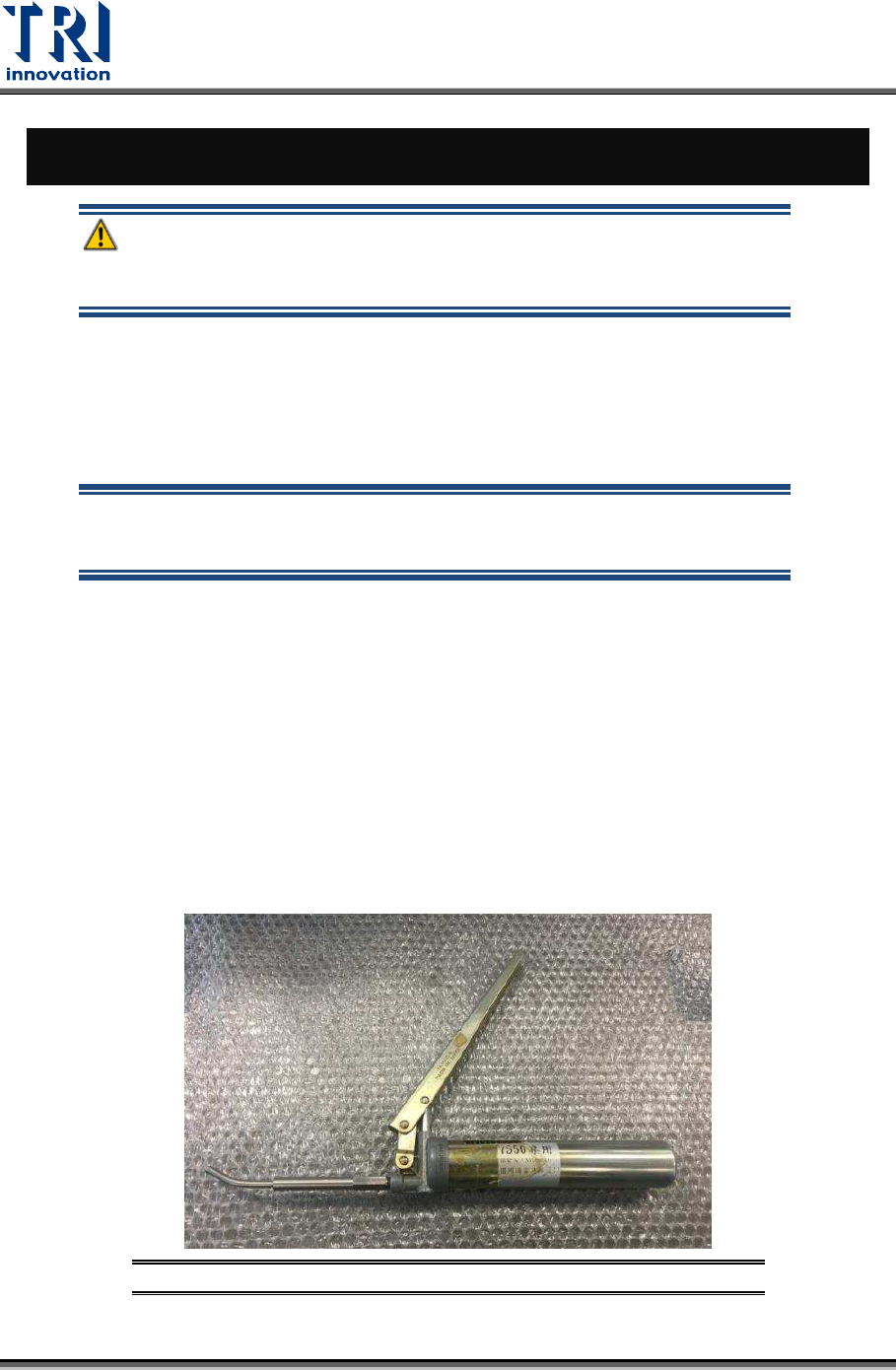

Figure 52: Small Grease Pump
