Test Research, Inc. TR7600 SIII Series User Guid e – Maintenance 53 11 816000001 40 PO W ER SUP PLY SDR-2 40-24 240 W DC24 V single phase; DEL TA 1 12 308000000 98 RELAY 607-2CC-DM-24 DIP SONG S HUAN RELAY 1 811000004 74…

100%1 / 74
Test Research, Inc.
52 TR7600 SIII Series User Guide – Maintenance

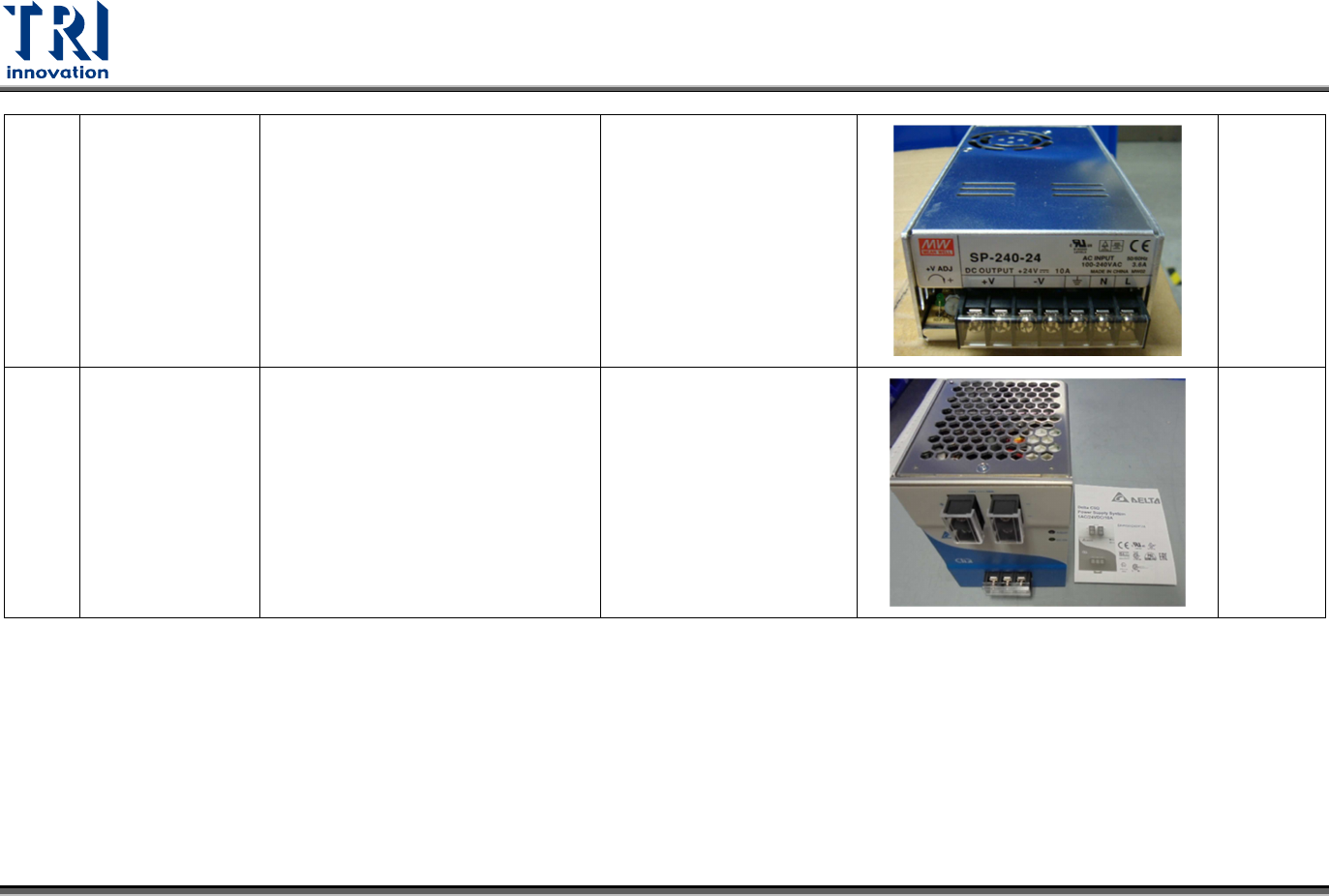

9 81600000161 POWER SUPPLY SP-240-24 MW
1
10 81600000321 POWER SUPPLY SDR-120-24
240W DC24V single
phase; DELTA
1
Test Research, Inc.
TR7600 SIII Series User Guide – Maintenance 53
11 81600000140 POWER SUPPLY SDR-240-24
240W DC24V single
phase; DELTA
1
12
30800000098 RELAY 607-2CC-DM-24
DIP SONG SHUAN
RELAY
1
81100000474 CN RELAY on P2RF-08
DIP OMRON (RELAY
STN607)
1
13 81600000138 POWER SUPPLY SP-320-15
15V/20A, MW (Note:
Hamamatsu Camera)
1
Test Research, Inc.
54 TR7600 SIII Series User Guide – Maintenance
14 31510000075 Camera
CAMERA MODULE
C10650-526 (Note:
Hamamatsu Camera,
20K)
1
15 8179030000182 Conveyor Belt (W=14 T=1.2 L=3495)
2
16 8179030000183 Timing Belt PG-8YU-3440-8
1
