2 PCB barcode scanner assembly instructions SIPLACE 2.11 PCB barcode scanner configuration 10/2009 Edition 228 For the CL V42x barco de scanner , cancel printing of th e footer so that you can print all 8 barc odes on a …

SIPLACE 2 PCB barcode scanner assembly instructions

10/2009 Edition 2.11 PCB barcode scanner configuration

227

: In the 'Barcode Printing Options' window, click on the 'Barcode dimensions' box.

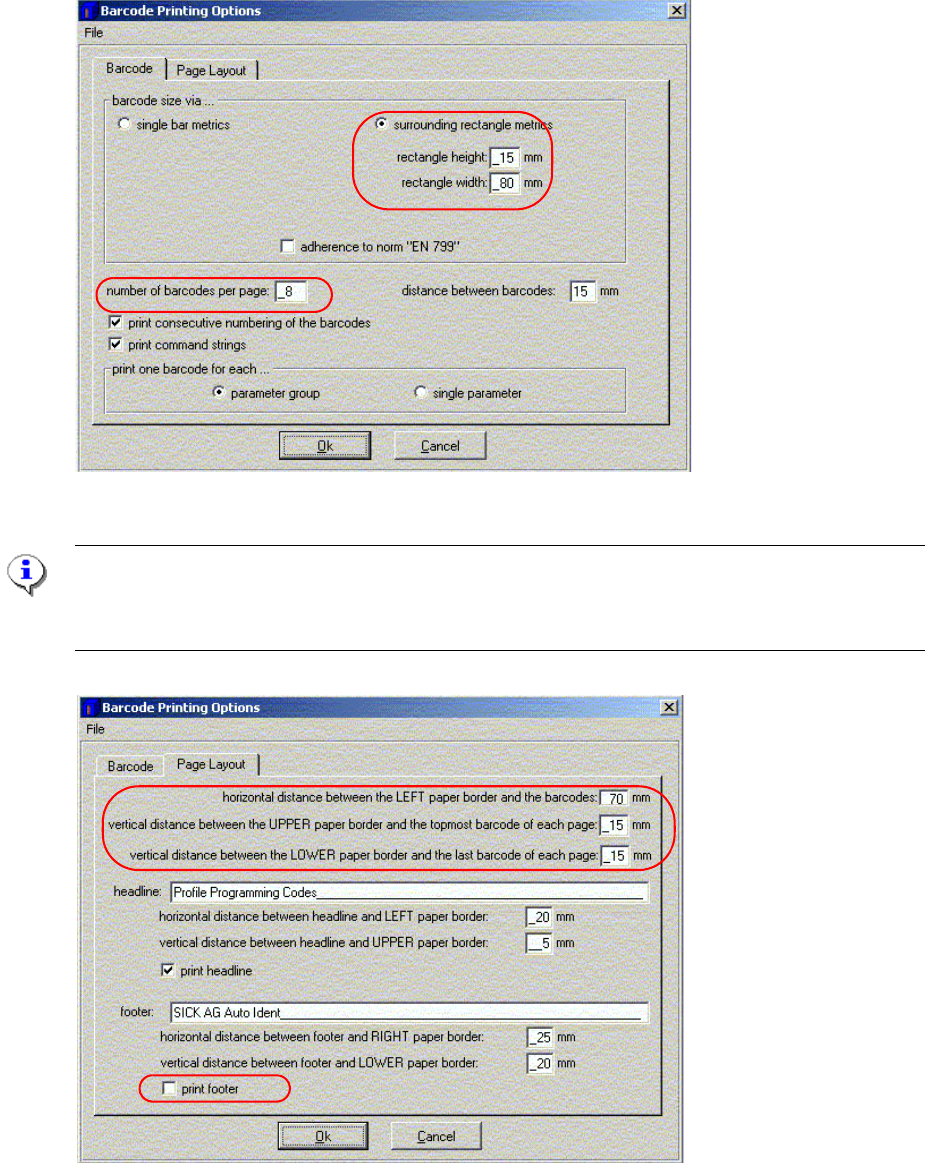

Fig. 2.11 - 14 Printer settings

NOTE:

For the CLV 41x barcode scanner, the number of barcodes per page is 5.

For the CLV 42x barcode scanner, the number of barcodes per page is 8.

Fig. 2.11 - 15 Layout settings

2 PCB barcode scanner assembly instructions SIPLACE

2.11 PCB barcode scanner configuration 10/2009 Edition

228

For the CLV42x barcode scanner, cancel printing of the footer so that you can print all 8 barcodes

on a single page.

: Click on OK to accept and save the current values.

: Click on the 'Profiles' pulldown menu on the CLV Setup title bar.

: Click on the ’Print profiles' menu and select the barcode labels.

: Enter 2, 3 or 4 in the 'Device no.' box in the ’Device configu

ration' window for any additional

barcode scanners installed.

Examples for CLV41x: 2

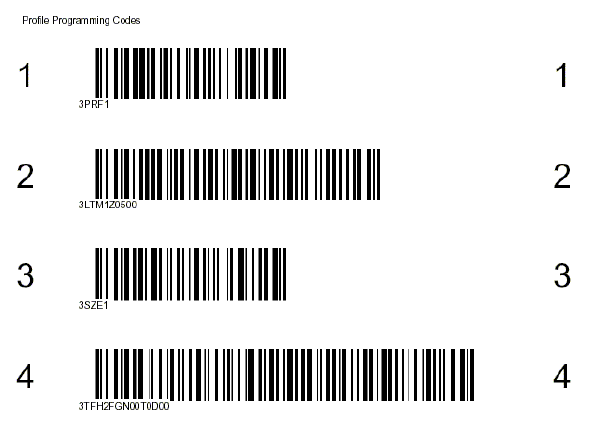

Fig. 2.11 - 16 1D barcode configuration for device 1 CLV41x (conveyor track 1 above)

SIPLACE 2 PCB barcode scanner assembly instructions

10/2009 Edition 2.11 PCB barcode scanner configuration

229

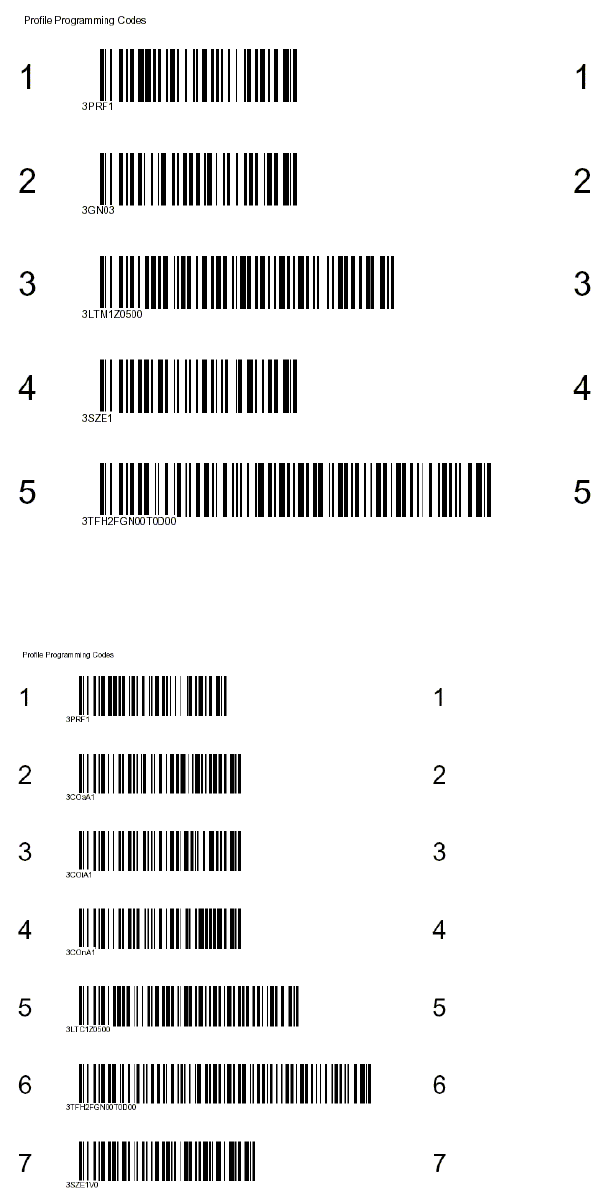

Fig. 2.11 - 17 1D barcode configuration for device 3 CLV41x (conveyor track 2 above)

Examples for CLV42x: 2

Fig. 2.11 - 18 1D barcode configuration for device 1 CLV42x (conveyor track 1 above)
