SIPLACE 2 PCB barcode scanner assembly instructions

10/2009 Edition 2.11 PCB barcode scanner configuration

235

2.11.7.5 Working with the CLV Assistant

Once you have installed the CLV software and established a connection to the device, you can

then use the CLV Assistant to check that the barcode scanner is at the correct focus height and

adjust it if necessary.

The 2D barcode scanner can also be automatically configured for a specific barcode type.

: From the pull-Down menu, select

--> "T

ools" --> "CLV Assistant" or click on the icon.

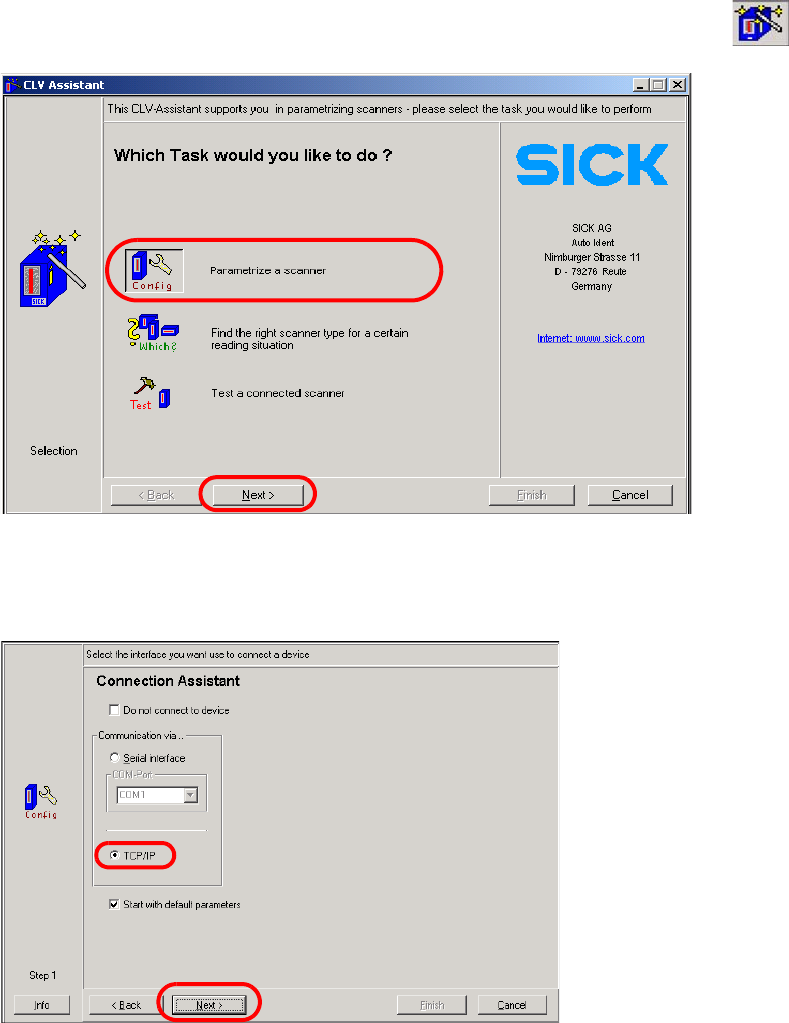

Fig. 2.11 - 25 CLV Assistant

: Select "Config" and carry out the following steps.

Fig. 2.11 - 26 Step 1 in the CLV Assistant

2 PCB barcode scanner assembly instructions SIPLACE

2.11 PCB barcode scanner configuration 10/2009 Edition

236

: Select "TCP/IP" as the protocol for establishing a connection.

: The software will then attempt to find all the barcode s

canners on the network and will list them

in the following dialog.

Fig. 2.11 - 27 Step 2 in the CLV Assistant

: Select the barcode scanner (Scanner Type) that you wish to configure.

: Click on the button at the bottom left to browse the network for barcode scanners again.

: A picture of the die scanner then appears.

Fig. 2.11 - 28 Step 3 in the CLV Assistant

: Click on "Next".

SIPLACE 2 PCB barcode scanner assembly instructions

10/2009 Edition 2.11 PCB barcode scanner configuration

237

2.11.7.6 Setting the focus height:

Now place a PCB with the "adjustment barcode" stuck on beneath the barcode scanner. The bar-

code scanner attempts to determine the distance between

the barcode lines and thus calculate

the current focus height. This is then displayed graphically and will have to be set mechanical (see

Fig. 2.11 - 29, Fig. 2.11 - 30 below).

PLEASE NOTE

The adjustment barcode for the focus heigh

t is not currently available.

You will have to check the focus height using the mechanical adjusting gauge.

Click on "Next" to skip this setting.

Fig. 2.11 - 29 Focus height not set correctly.
