Fig. 2.11 - 33 Result window on the right showing the barcode data

Fig. 2.11 - 34 Step 6 in the CLV Assistant

The settings found by the CLV Assistant only apply to this type of barcode.

: Click on "Next". This closes the CLV Assistant.

SIPLACE 2 PCB barcode scanner assembly instructions

10/2009 Edition 2.11 PCB barcode scanner configuration

241

2.11.7.8 Final tasks

: Make all the manual settings as described below.

: The automatically-determined parameters, i.e. co

nveyor velocity and module size and the op-

timization parameters for contrast, brightne

ss, etc. should not be changed again.

: Run a download to the barcode scanner (permanent).

2.11.7.9 Manual setting for the "DEMO" example if you are not using the CLV Assistant

Fig. 2.11 - 35 Reading configuration

: Enter the "Minimum cell size 2D" in 1/100 mm (size of a matrix dot - a tolerance of approx. 30%

is accepted)

e.g. barcode width (12 mm) divided by the number of columns (18)

: Enter the minimum and maximum code position. (Definition

of the size of the scanning win-

dow),

: The object velocity, i.e. the speed with which th

e barcode is scanned, corresponds to the con-

veyor velocity.

2 PCB barcode scanner assembly instructions SIPLACE

2.11 PCB barcode scanner configuration 10/2009 Edition

242

The scanning frequency is adjusted automatically.

PLEASE NOTE:

Once the configuration is complete,

an image of the defined barcode can be output.

The object velocity can be changed if the barcode appears squashed or stretched.

: Click on the "Code Properties Parameters" button.

This window is used to adjust the barcode quality.

Setting for 1D barcodes

Setting for 1/2D barcodes

Setting for 1/2D dot matrix

barcodes

Background hiding for 1/2D

barcodes

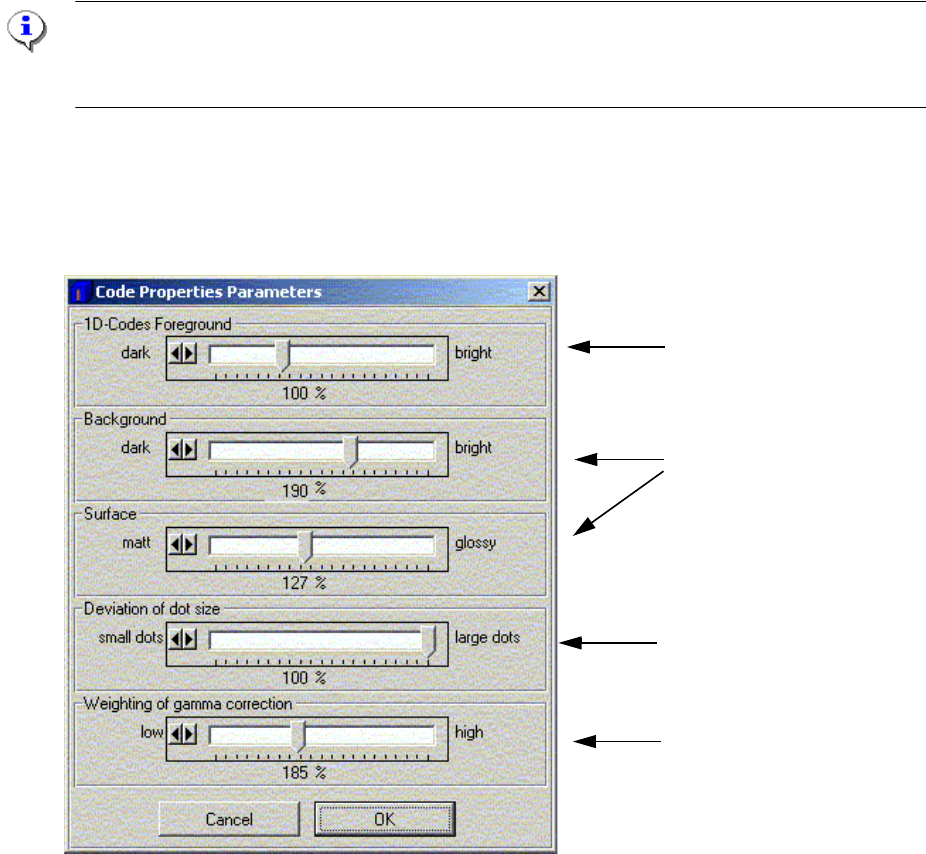

Fig. 2.11 - 36 Adjusting the barcode quality
