2.12.3 ICR850 scanner
Please note that there are two different type ICR850 scanners: 2
ICR850-1920S03: Item number 00119679-01 Focus height 60 mm for SIPLACE HS / HF / X2
ICR850-1920S04: Item number 00119689-01
Focus height
85 mm for SIPLACE S / F 2
2.12.4 Network settings
The notebook (server) is assigned IP address 192.168.0.2 2
and subnet mask 255.255.255.0. 2
The scanner will have entered the IP
address
192.168.0.1 when it was supplied. 2
First the notebook is
assigned IP address
192.168.0.2.
For a detailed description, see:
00193891-05
Retrofit instructions for PCB bar-
code section 1.11.6.2
Setting the network address
2
2
Then establish the connection using a cross-over cable between the notebook and scanner 2
and start the CLV_Setup software. 2
2
2
2
2
2 PCB barcode scanner assembly instructions SIPLACE
2.12 Tips & tricks for the barcode scanner 10/2009 Edition
260
2.12.5 CLV software
Double-click on the IP at the bottom left to open the window for the
interface settings.
Use these settings to connect via TCP/IP (cross-over cable).
2
2
SIPLACE 2 PCB barcode scanner assembly instructions
10/2009 Edition 2.12 Tips & tricks for the barcode scanner
261

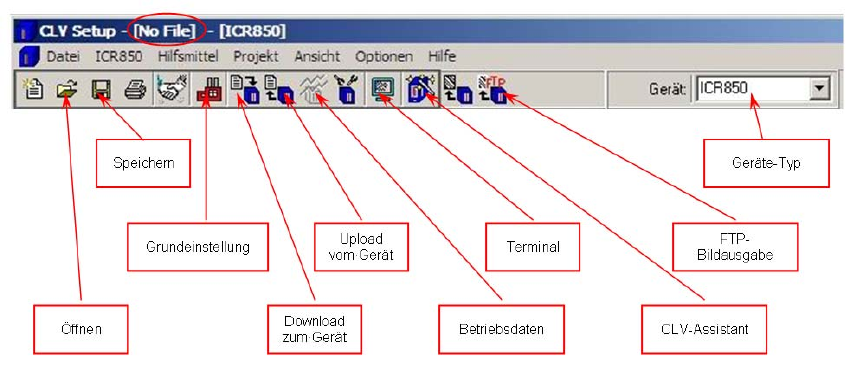

2.12.6 Important icons on the taskbar
2
2
– The "Open" button is used to open an existing setting on the computer.
– The "Save" button is used to save a setting you ha
ve created on the computer. You should
note, however, that the setting is saved to the file specified on the taskbar (see highlight / no
file has been selected yet in this example).
– Once the network connection has been established, first transfer the current scanner setting
to the comp
uter using the “Upload from device“ button and save it using the File / Save As
menu.
– You can then modify the settings as required. They will only c
hange on the computer, however,
and must then be transferred to the scanner using the “Download to device“ button.
– When you download, we recommend that you always select “Permanent“ so that the settings
are pe
rmanently saved on the scanner.
– Use the “Basic settings“ button to reset all th
e settings to the default values.
– Use the “Download to device“ to send the settings from the computer to the scanner.
