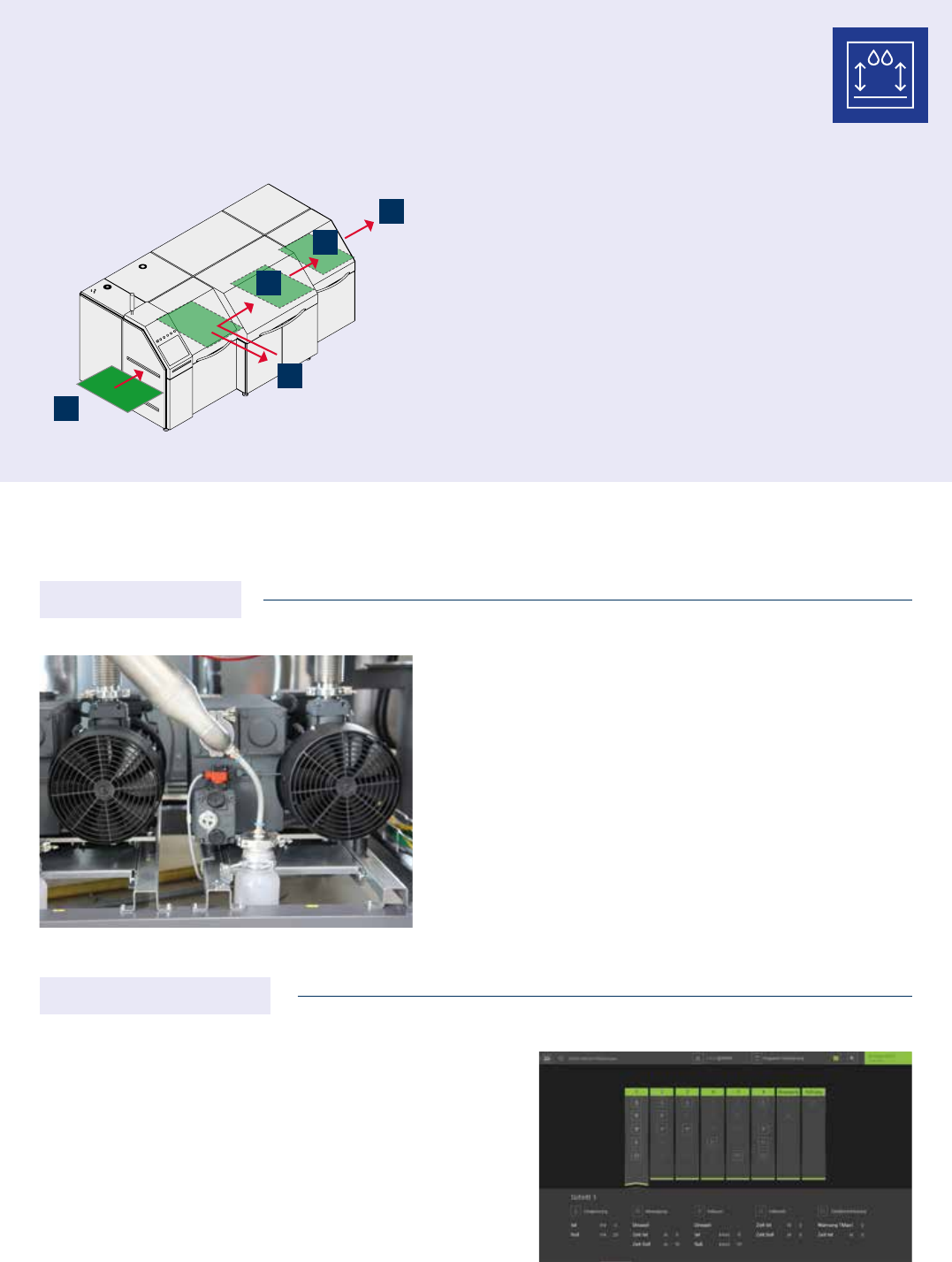

Loading Concept
The possibilities of CondensoXM smart
Vacuum pump
Software
The CondensoXM smart can be equipped with an additional
vacuum pump. This increases reliability, which is necessary
in particular for critical assemblies which make increased
demands on the vacuum process. Moreover, two vacuum
pumps can be used to reduce the cycle time and thus in-
crease productivity for vacuum applications under 10 mbar
in particular.
The option of a second vacuum pump is also available
with the CondensoXS smart, CondensoXS smartline and
CondensoX Line models.
With ViCON Condenso, Rehm offers a clear software pack-
age for the Condenso series that is intuitive to use with
its touchscreen interface. All messages, commands and
parameters are visible at a glance on the main screen with
its machine view. Simple proling with clearly structured
process stages is therefore possible – with or without the
vacuum option. With numerous other features, such as a
favourites bar that can be set up as required, structured
grouping of parameters and individual process monitoring
and documentation, ViCON offers you optimal support for
your manufacturing processes.
1.
4.
2.
3.
5.
1. Loading assembled workpiece carier
2. Soldering/Vacuum/Cooling under Liquidus
3. Unloading
4. Unloading workpiece carrier
5. Manual loading / unloading of single PCB's
16
Condenso series
Condenso smartline
Ideal for series production of power electronics
The Condenso smartline is designed for a production envi-
ronment that requires a fully automated inline connection.
Loading is carried out directly from the feed conveyor in front
of the system. The soldering process takes place in the pro-
cess chamber, which can be flooded with nitrogen. If cooling
under liquid is required, this can be integrated into the
process chamber as an option. After the soldering process,
the product carrier is moved into the cooling zone and the
assemblies are cooled down to the optimal temperature.
The assemblies are then removed automatically onto a
downstream conveyor belt. The empty product carrier is
moved back to the loading area in the system. With the
advantages of the inline condensation soldering process, a
high throughput and the integrated product carrier return, the
Condenso smartline meets the highest demands of series
production in power electronics.
Inline system with integrated goods carrier return transport
Fast product change possible
Traceability and MES connection
Inert process atmosphere during the soldering process
No Galden
®
carryover, active Galden
®
ltering
17
Loading Concept
The possibilities of Condenso smartline
Automatic Loading
Internal carrier return transport
The Condenso smartline works with a pusher for loading
the product carriers already in the system. The assemblies
are pushed from a feed conveyor onto the product carrier.
The product carrier can be equipped with a centre support
for each track. A maximum of 6 tracks are possible on each
product carrier. The max. assembly size is 650 x 650 mm.
Unloading of the product carriers is also carried out with
the pusher, which moves them onto the downstream con-
veyor belt.
The product carriers in the Condenso smartline are moved
internally from the unloading area back to the loading area.
As a result, no additional magazine modules or external
product carrier systems are required in the area around the
system. This saves space and also reduces the amount of
contamination of the product carriers thanks to the closed
loop system, thereby ensuring that little servicing work is
required and downtimes are reduced.
1. Loading
2. Inlet area
3. Soldering/Vacuum
4. Cooling
5. Unloading
