SPF 6.5 SC Timer T able SERVICE MANUAL 6.5−2 D54SEC−85−030−B0 No. Remarks SC address Setting value Name TM33 Parts transfer detection OFF (Carrying out) 0.10 5340 TM34 Not used 0.30 5341 Correspond to closed head TM35 Cl…
6.5 SC Timer Table
SERVICE MANUAL
SPF
6.5−1
D54SEC−85−030−B0
6.5 SC Timer Table
D54SEC−85−030−B0
Sentence No.
No. Name
Setting
value
SC address Remarks
TM01 Table belt OFF (Reference) 0.30 5300
When corresponding to end
face 3mm, M0.7 XL1.0
TM02 Rear readjustment stability 0.20 5301
TM03 Vacuum stability 0.20 5302
TM04 Vacuum OFF 0.10 5303
TM05 While carrying out 1.00 5304
TM06 Safety restart 0.50 5305
TM07 SST axis operation 1.00 5306
TM08 Blower motor ON 0.50 5307
TM09 Cleaner nozzle ascend timer 0.20 5310
TM10 Winding completion 0.50 5311
TM11 Maintenance circuit failure 0.50 5312
TM12
Support ascend (Valid when end
face positioning)
0.05 5313
TM13 ST axis brake 0.50 5314
TM14
Warp prevention descend (valid
when pin positioning)
0.20 5315
TM15 Flicker 1 0.50 5316
TM16 Flicker 2 0.50 5317
TM17 Loader transfer error 10.00 5320
TM18 Table transfer error 10.00 5321
TM19 Unloader transfer error 10.00 5322
TM20 Count up 3.00 5323 For LM−V
TM21
Parts transfer detection OFF
(Carrying in)
0.10 5324
TM22 Reference pin error 10.00 5325
TM23 Resolvent dispensing ON time 0.03 5326
Resolvent dispensing valve
signal ON time
TM24 Winding error 99.00 5327
TM25 PCB wait (Loader) 15.00 5330
TM26 P board detection 3 pass 0.20 5331
TM27 Positioning 2 descent timer 0.20 5332
TM28 Resolvent dispensing OFF time 0.01 5333
Resolvent dispensing valve
signal OFF time
TM29 Cleaner connection descent error 5.00 5334
TM30 Blower motor high speed 6.00 5335
TM31 PCB wait (Unloader) 15.00 5336
TM32 Carrying in wait timer 0.00 5337
SPF
6.5 SC Timer Table
SERVICE MANUAL
6.5−2
D54SEC−85−030−B0
No. RemarksSC address
Setting
value
Name
TM33
Parts transfer detection OFF
(Carrying out)
0.10 5340
TM34 Not used 0.30 5341 Correspond to closed head
TM35
Cleaner nozzle ascend / descend
error
1.00 5342
TM36 Resolvent dispensing timer 0.06 5343
Resolvent dispensing total
time
TM37
Squeegee stop time timer
(Count except while printing)
60.00 5344
Set value ´ count of No.10 in
counter table (*1)
TM38
Resolvent dispensing completion
® to paper feed
0.50 5345
TM39 Interval time between valve ON 0.10 5346
TM40
Ring blow low speed ® high speed
rotation changeover timer
(energy−saving type)
0.20 5347
TM41
After vacuum OFF of cleaner
vacuum, cleaner nozzle descent
timer
1.50 5350
TM42
Rear stopper descent detection
time−up
5.00 5351 Correspond to closed head
TM43
Front stopper descent detection
time−up
5.00 5352 Correspond to closed head
TM44
The time until SST axis moves
from reference pin valve set
0.20 5353 Valid when pin positioning
TM45 Not used 0.20 5354
TM46 Not used 0.20 5355
TM47 Not used 0.20 5356
TM48 Stop timer after printing 0.00 5357
=HINT=
*1 : SPF counter setting table
No.
Name
Setting
value
SC address Remarks
10
Squeegee stop time timer
(Count except while printing)
20 5369 TM37 ´ setting count (sec.)
6.6 P783 Jumper Setting List
SERVICE MANUAL
SPF
6.6−1
D54SEC−85−040−B0

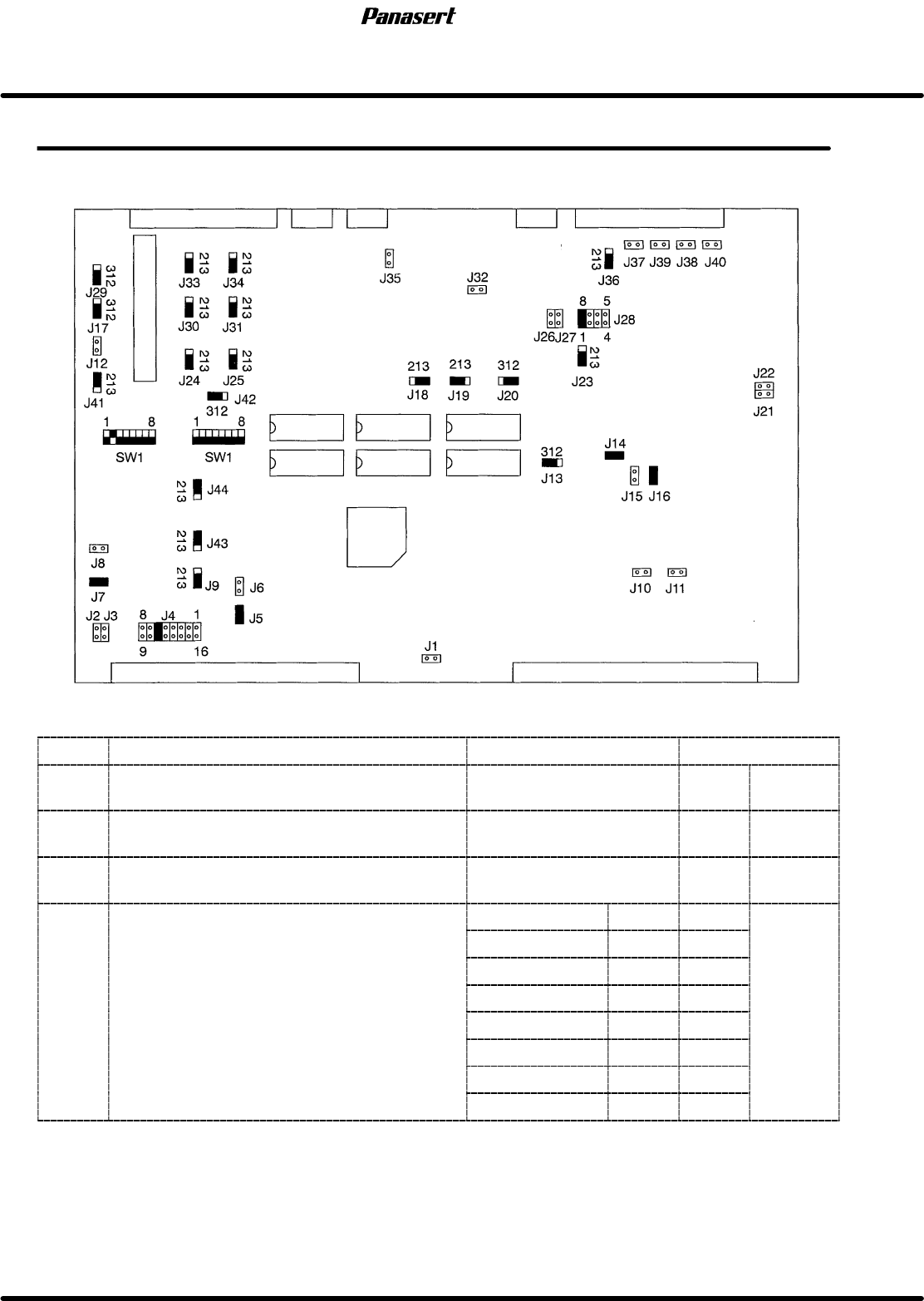

6.6 P783 Jumper Setting List
D54SEC−85−040−B0
Sentence No.
MMI JA−M00105 1/4
Jumper setting contents
No. Functions Contents Settings
JP1 FD select
OFF : 2HD
ON : 2DD
OFF 2HD
JP2 CCLK
OFF : Ineffective
ON : Effective
OFF Ineffective
JP3 BCLK
OFF : Ineffective
ON : Effective
OFF Ineffective
1−16 ON INT0 OFF
2−15 ON INT1 OFF
Interrupt
level
to
PanaBus
of
2
−
port
RAM
3−14 ON INT2 OFF
JP4
Interr
u
pt
le
v
el
to
PanaB
u
s
of
2
−
port
RAM
interrupt
4−13 ON INT3 OFF
INT5
JP4
interrupt
All
OFF
at
master
5−12 ON INT4 OFF
INT5
All OFF at master
6−11 ON INT5 ON
7−10 ON INT6 OFF
8− 9 ON INT7 OFF
