3.PREPARED MATERIALS
This chapter describes prepared materials for maintenance.

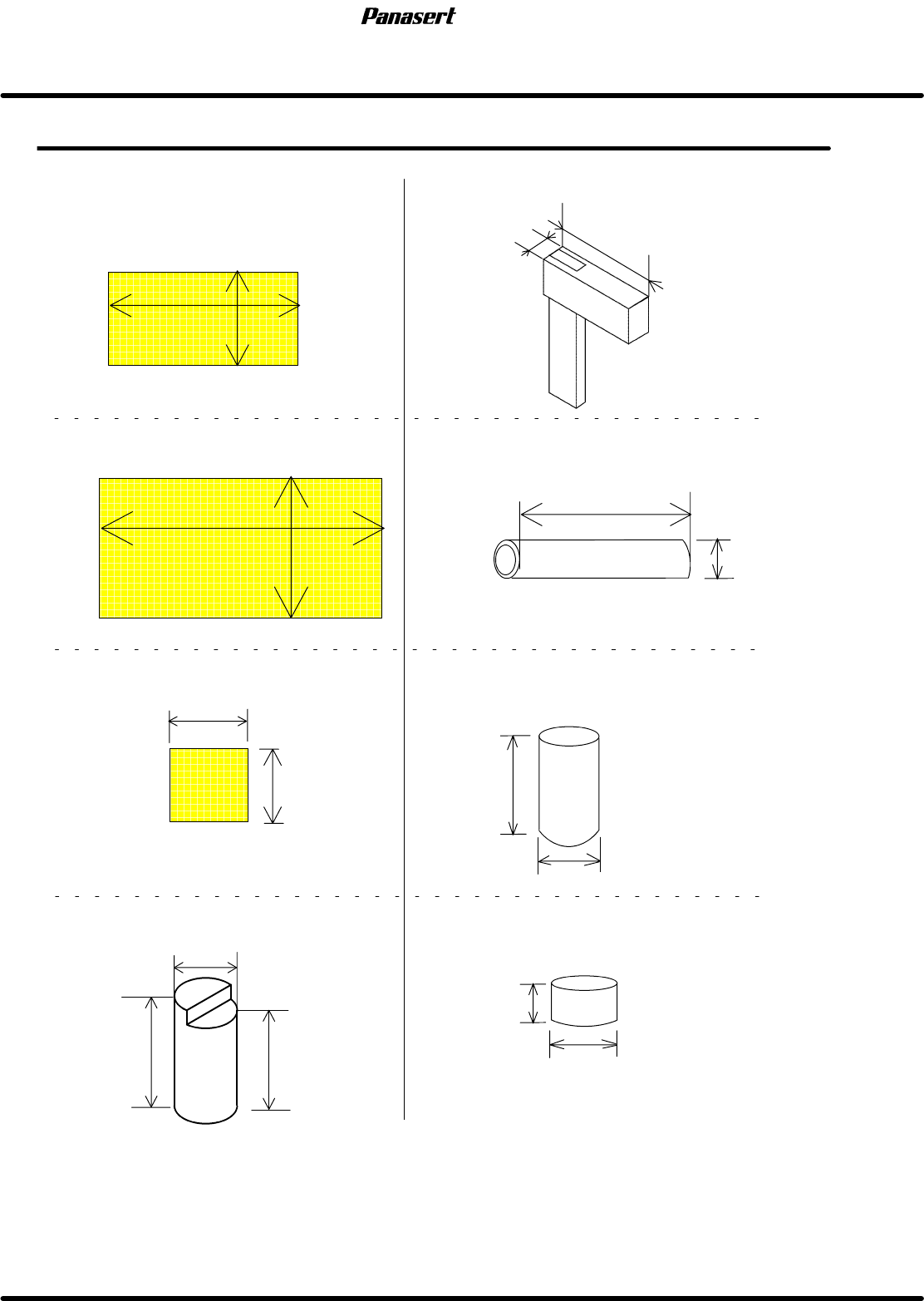

3.1 List of Special Jigs and Tools (for Service Engineer)
SERVICE MANUAL
SPF
3.1−1
D54SEC−87−030−B0
3.1 List of Special Jigs and Tools (for Service Engineer)
D54SEC−87−030−B0
Sentence No.
250mm
330mm
460mm
510mm
50mm
50mm
Support height adjustment jig : 108088401101
Squeegee angle adjustment jig : N903YYYY−080
X−q plate positioning pin : 1080884002
70mm
Æ8
60mm
Æ30
Sub stage fall prevention jig : 1080884502
Stage fall prevention jig : 1080884503
´ 2 pcs.
´ 2 pcs.
Æ25
Maximum PCB (M size)
Maximum PCB (XL size)
Minimum PCB
80mm
20mm
´ 2 pcs.
65.4mm
f30
55.9mm
15mm
=CHECK=
This list does not include jigs and tools attached to this PANASERT machine.
SPF
3.1 List of Special Jigs and Tools (for Service Engineer)
SERVICE MANUAL
3.1−2
D54SEC−87−030−B0

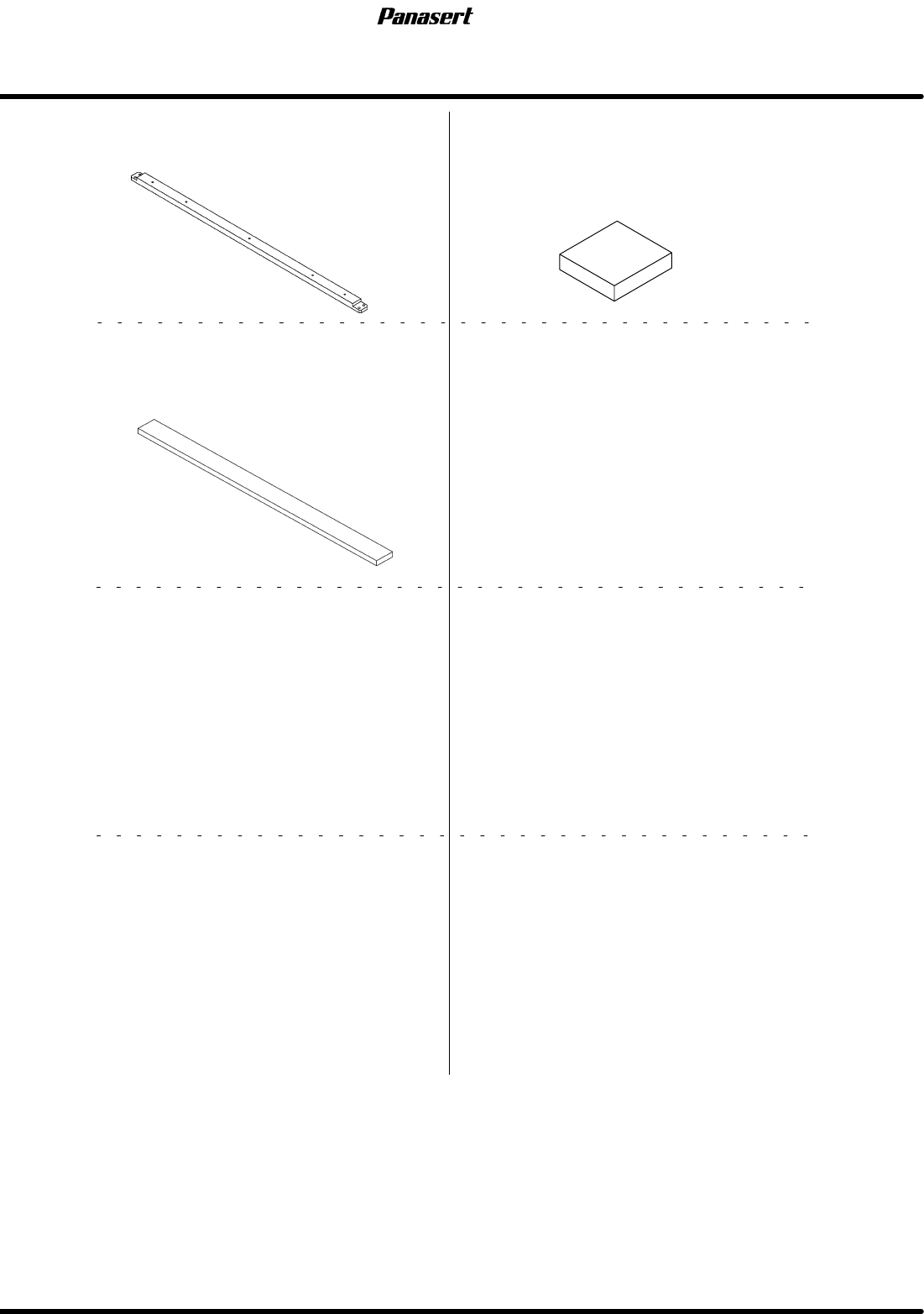

Mark plate jig : M10808−84−004
Brightness adjustment jig : 1028179059
Cleaner head height adjustment jig
(Faltness Plate can be substitutable.)
=CHECK=
This list does not include jigs and tools attached to this PANASERT machine.
