4.2 Lower Section Unit : Others
SERVICE MANUAL
SPF
4.2−1
D54SEC−W4−600−B0
4.2 Lower Section Unit : Others
D54SEC−W4−600−B0
Sentence No.
4.2.1 SY Axis (Stage Y Axis) Motor Replacement
Unit No. 1080804200
SY Axis (Stage Y Axis) Motor
Replacement
4.2.4 SY Axis (Stage Y Axis)
Origin Adjustment
SY axis motor replacement
1. Turn the power [ON] and return to origin.
2. Turn the power [OFF].
3. Disconnect the motor connectors.
4. Loosen the coupling bolt on the motor side.
5. Remove the motor bolts (3 pcs.) and remove
the motor from the motor bracket.
6. Replace the motor.
7. Tighten the motor bolts and coupling bolt.
8. Connect the motor connectors.
Stage Y axis motor
Coupling
Motor bolt
Stage Y axis motor
SPF
4.2 Lower Section Unit : Others
SERVICE MANUAL
4.2−2
D54SEC−W4−600−B0
4.2.2 ST Axis (Stage Up/Down Axis) Motor Replacement
Unit No. 1080804100
ST Axis (Stage Up/Down Axis)
Motor Replacement
4.2.3 ST Axis (Stage Up/Down
Axis) Origin Adjustment
=Preparation=
1. Sonic tension meter
2. Vinyl tape
ST axis motor replacement
1. Remove the power supplier upper protection
cover.
=REMARKS=
To prevent from the short circuit inside the
power supplier, be sure to cover with the
insulating protection sheet to the power
supplier.
2. Turn the power [ON].
3. Turn “SERVO MOTOR” on the main control
panel [OFF].
4. Move the ST axis motor to any place where you
can remove it easily.
5. Turn the power [OFF].
6. Insert the stoppers between the support plate
frame and lifter section.
=REMARKS=
When removing the motor, the frame may fall
off. Be sure to handle with care.
7. Mark the motor bracket position.
8. Loosen the bolt (B) to remove the bolts (A).
9. Remove the motor with the motor bracket.
10. Mark the cotter position on the motor pulley to the
motor bracket.
11. Remove the motor bracket and the pulley from the
motor and replace the motor.
=CHECK=
When attaching the motor, the cotter position
should be matched with the marking on the
motor bracket.

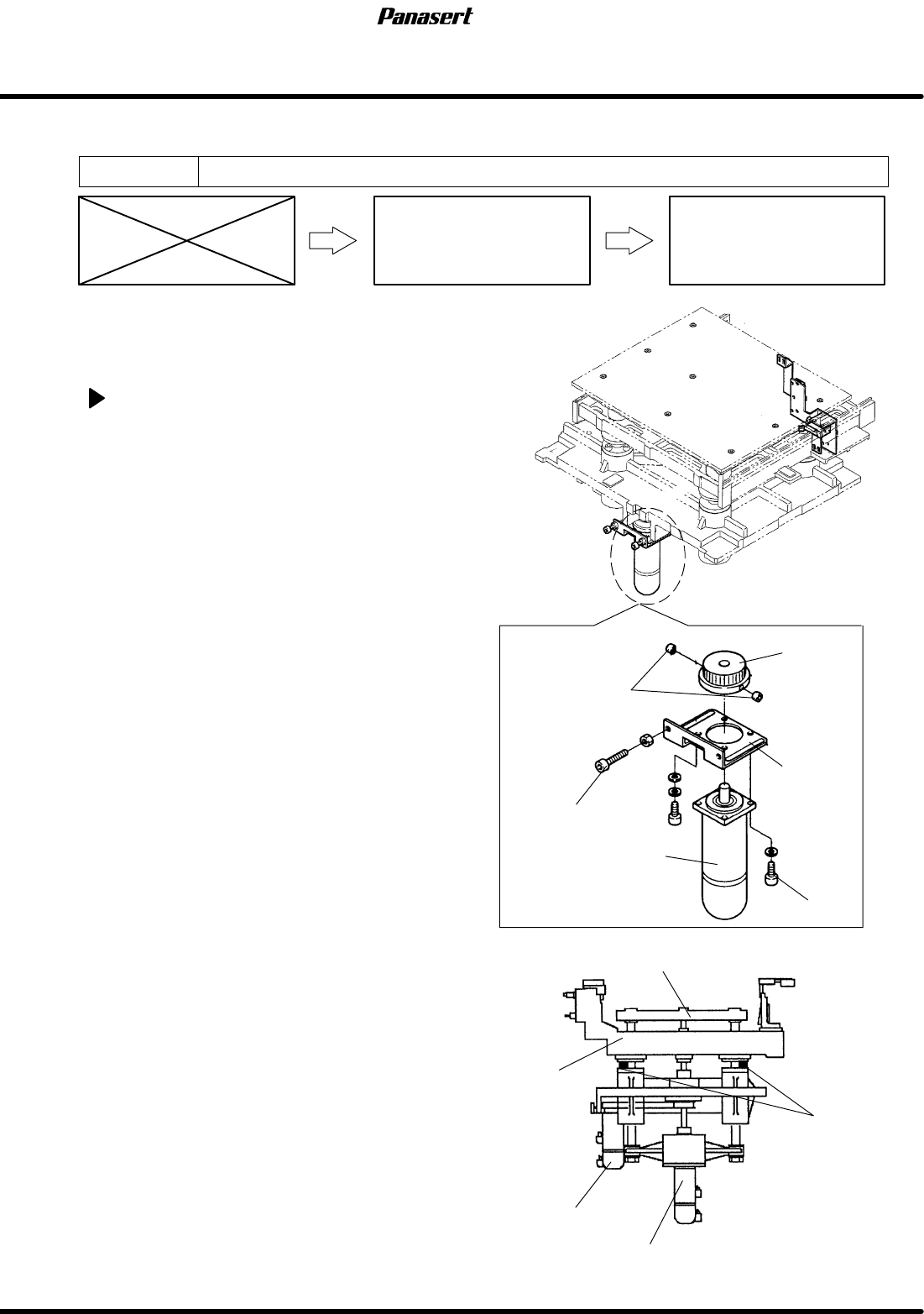

Cotters
ST axis motor
Pulley
Bracket
Bolt (A)
Bolt (B)
Sub stage table
Support
plate
frame
ST axis motor
SST axis motor
Stoppers
