4.2.2 ST Axis (Stage Up/Down Axis) Motor Replacement
Unit No. 1080804100
ST Axis (Stage Up/Down Axis)
Motor Replacement
4.2.3 ST Axis (Stage Up/Down
Axis) Origin Adjustment
=Preparation=
1. Sonic tension meter
2. Vinyl tape
ST axis motor replacement
1. Remove the power supplier upper protection
cover.
=REMARKS=
To prevent from the short circuit inside the
power supplier, be sure to cover with the
insulating protection sheet to the power
supplier.
2. Turn the power [ON].
3. Turn “SERVO MOTOR” on the main control
panel [OFF].
4. Move the ST axis motor to any place where you
can remove it easily.
5. Turn the power [OFF].
6. Insert the stoppers between the support plate
frame and lifter section.
=REMARKS=
When removing the motor, the frame may fall
off. Be sure to handle with care.
7. Mark the motor bracket position.
8. Loosen the bolt (B) to remove the bolts (A).
9. Remove the motor with the motor bracket.
10. Mark the cotter position on the motor pulley to the
motor bracket.
11. Remove the motor bracket and the pulley from the
motor and replace the motor.
=CHECK=
When attaching the motor, the cotter position
should be matched with the marking on the
motor bracket.

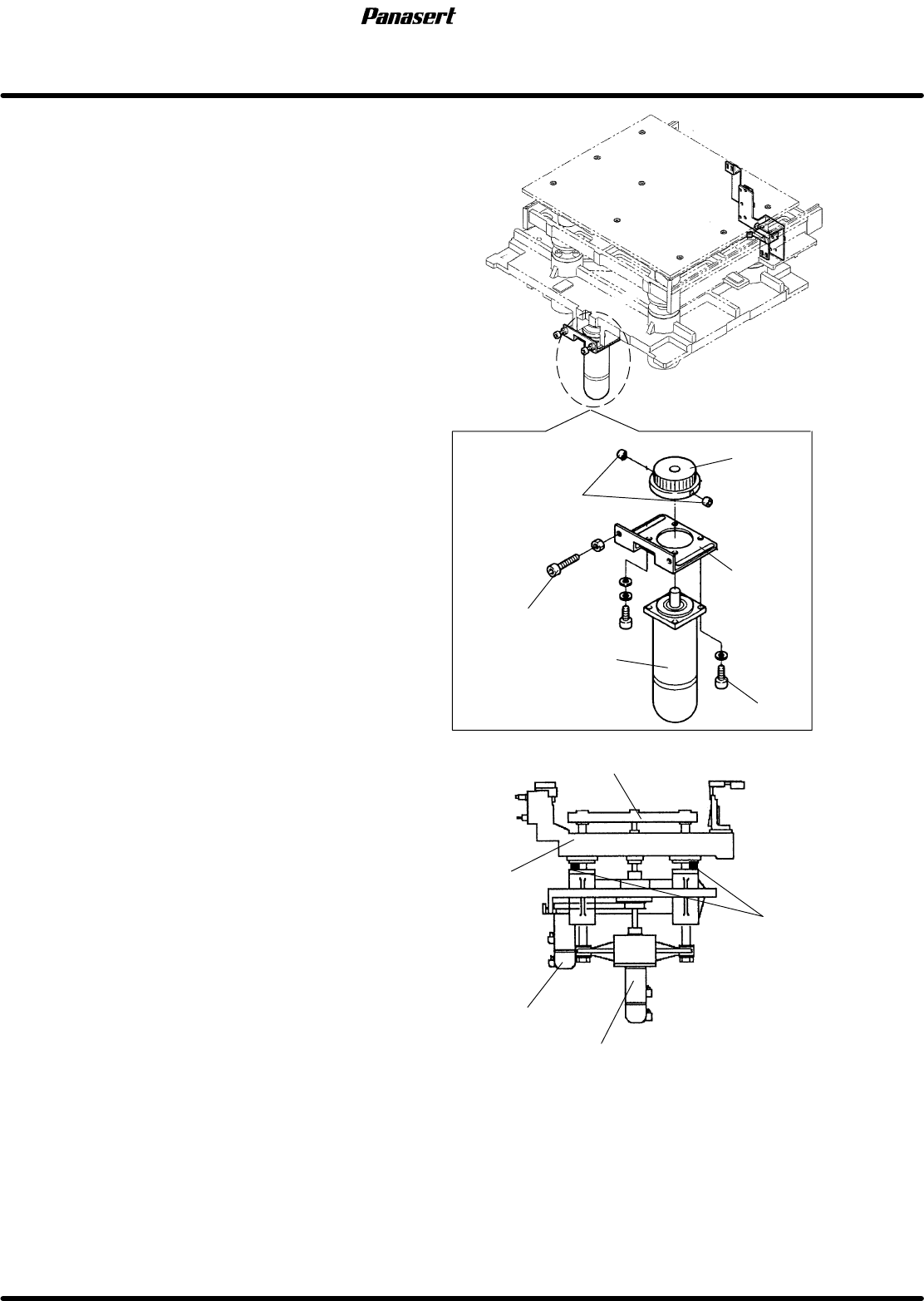

Cotters
ST axis motor
Pulley
Bracket
Bolt (A)
Bolt (B)
Sub stage table
Support
plate
frame
ST axis motor
SST axis motor
Stoppers
4.2 Lower Section Unit : Others
SERVICE MANUAL
SPF
4.2−3
D54SEC−W4−600−B0
12. Connect the motor connectors.
13. Block the ST axis origin sensor with the vinyl tape.
14. Turn the power [ON] and return to origin.
=REMARKS=
No fingers inside machine.
15. Match the ST axis cotter with the marking on the
motor bracket.
16. Attach the motor with the motor bracket.
17. Tighten the bolt (A) temporarily.
=REMARKS=
Be sure to check that the pulley cotter can be
tightened from the front.
18. Adjust the ST axis timing belt tension with rotating
the bolt (B).
=Specification=
Tension : 96.0 ± 9.8 N (9.8 ± 1.0kgf)
19. Input the following values to the sonic tension
meter.
=REFERENCE=
Belt width : 15mm
Belt span : 202mm
Unit weight : 0.4gf/cm
2
20. Tighten the bolt (B) and bolt (A).
21. Remove the stoppers.
22. Peel off the vinyl tape from the ST axis origin
sensor.
23. Do the ST axis (stage up/down axis) origin
adjustment.
=REFERENCE=
Referto’4.2.3STAxis(StageUp/Down
Axis)OriginAdjustment’.
24. Attach the power supplier protection cover.
Cotters
ST axis motor
Pulley
Bracket
Bolt (A)
Bolt (B)
Sub stage table
Support
plate
frame
ST axis motor
SST axis motor
Stoppers

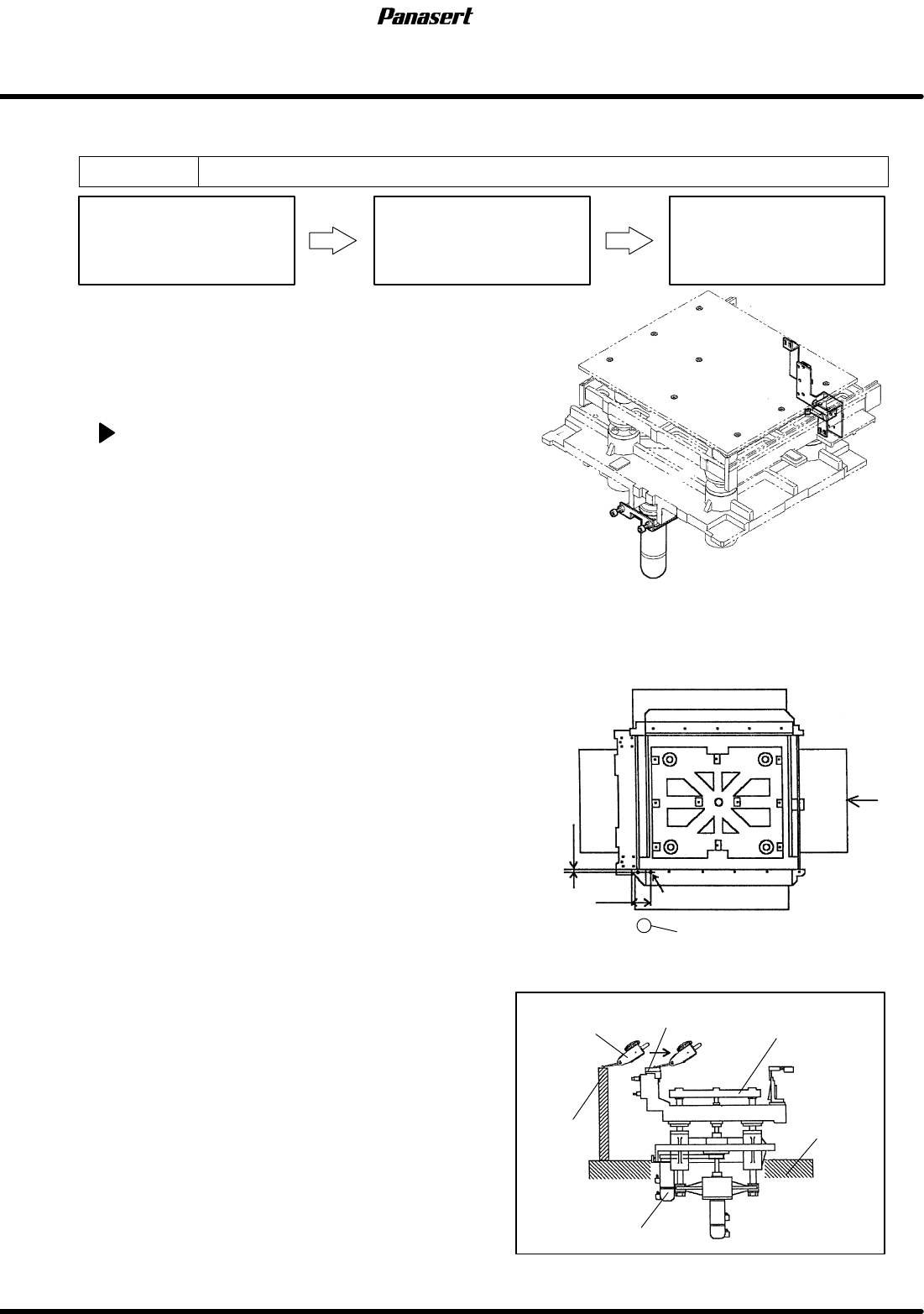

2mm
45mm
Reference 0
Main stage section
A
Height measuring jig
Dial gauge
Height
measuring
jig
Rail guide
LM guide
attachment
surface
ST axis motor
View from A
Sub stage table
SPF
4.2 Lower Section Unit : Others
SERVICE MANUAL
4.2−4
D54SEC−W4−600−B0
4.2.3 ST Axis (Stage Up/Down Axis) Origin Adjustment
Unit No. 1080804100
ST Axis (Stage Up/Down Axis)
Origin Adjustment
Maintenance Manual /
MAINTENANCE GUIDE /
Screen Holder Coplanarity and
Height Adjustment
4.2.2 ST Axis (Stage Up/Down
Axis) Motor Replacement
=Preparation=
1. Dial gauge
2. Magnet stand
3. Height measuring jig
4. Vinyl tape
ST axis origin adjustment
1. Remove the power supplier protection cover.
=REMARKS=
To prevent from the short circuit inside the
power supplier, be sure to cover with the
insulating protection sheet to the power
supplier.
2. Turn the power [ON] and return to origin.
3. Move the SY axis to 200mm.
4. Attach the magnet stand to the camera axis.
5. Touch the dial gauge at the left reference surface
on the fixed rail guide (the position where 2mm
from within the rail guide and 45mm from the left
side).
6. Zero the dial gauge.
7. Check the height from the X axis LM guide
attachment surface to the rail guide upper
surface.
=Specification=
Height : 349.05 to 349.10mm
=HINT=
Be sure to use the height measuring jig. Be
sure to adjust the height 349.0mm to the
screen holder upper surface as the setting
reference.
