SPF SERVICE MANUAL 5.0−2 D54SEC−84−000−A0 D54SEC−84−000−A0 Sentence No. 5.MAINTENANCE GUIDE (CONTROLS) This chapter includes explanations about adjustment procedures which are related to the control system. · Improper ma…
SERVICE MANUAL
SPF
5.0−1
5ダミー(Sectionのレベル1)
5.0ダミー(Sectionのレベル2)
SPF
SERVICE MANUAL
5.0−2
D54SEC−84−000−A0
D54SEC−84−000−A0
Sentence No.
5.MAINTENANCE GUIDE
(CONTROLS)
This chapter includes explanations about adjustment procedures which are
related to the control system.
· Improper machine operation could result in personal injury.
· Be sure to read ’Safety Precautions’ in this manual carefully.
5.1 AC Servo Gain Adjustment
SERVICE MANUAL
SPF
5.1−1
D54SEC−84−040−A0
5.1 AC Servo Gain Adjustment
D54SEC−84−040−A0
Sentence No.
=Preparation=
1. Oscilloscope
=HINT=
When the machine is in the following status, AC servo gain adjustment is required.
1. ’Driver error’ or ’Motor movement impossible’ is displayed.
2. Motor is noisy.
3. Motor or driver is replaced.
4. Motor movement is abnormal.

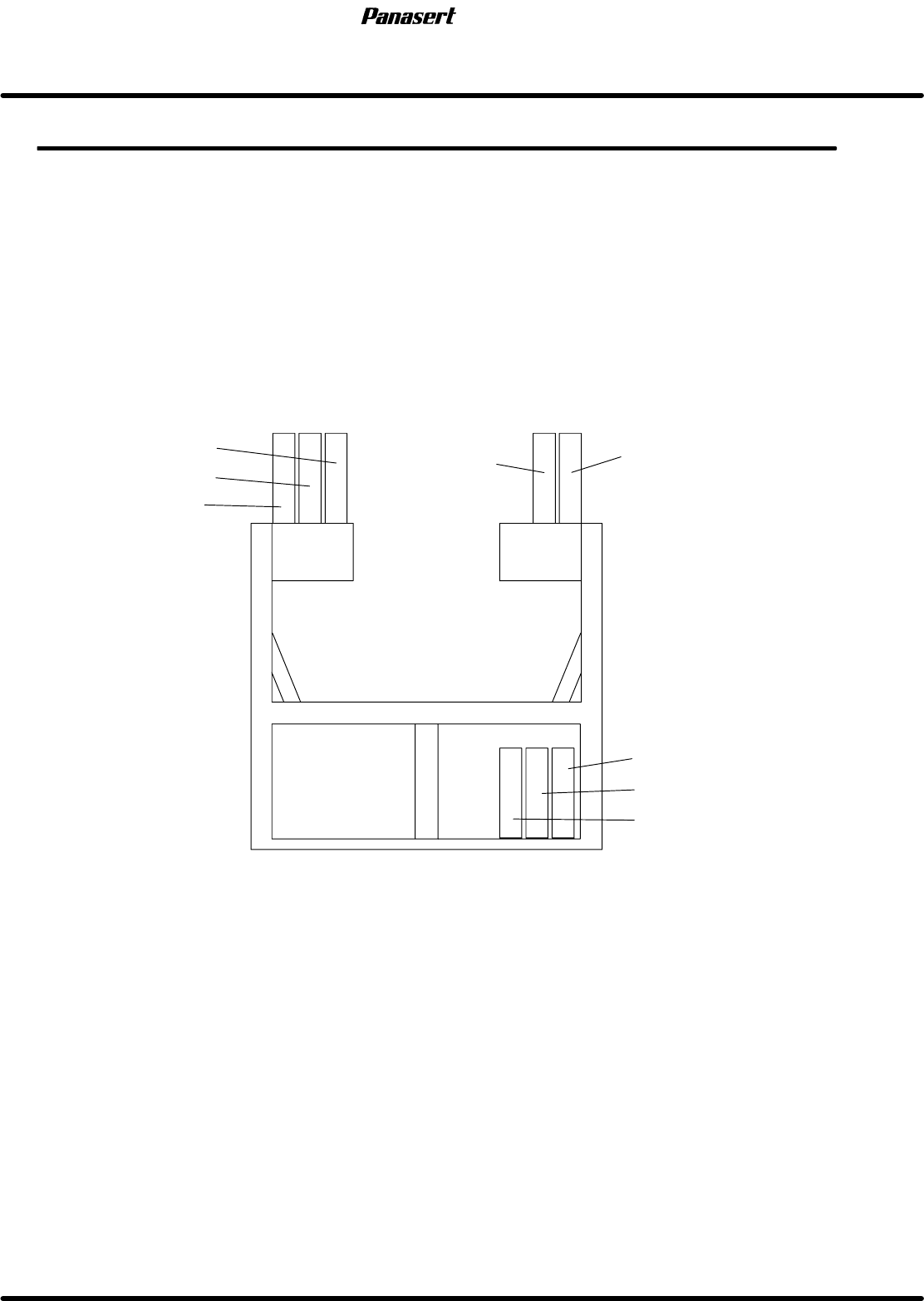

SY axis
ST axis
SST axis
CX axis
CY axis
SCX axis
SCR axis
SQ axis
Main body rear
AC servo motor drivers location
