SIPLACE 80 S-20 / S-23HM/ F4 / F4-6 / F5 2 Retrof itting Instructions for Ceramic S ubstrate Centering Unit (Optional) 04/2000 Issue 2.6 Appendix: Cables and Circuit Drawings, Conversion P CB 67 Fig. 2.6.3 Layou t: Con…
2 Retrofitting Instructions for Ceramic Substrate Centering Unit (Optional) SIPLACE 80 S-20 / S-23HM/ F4 / F4-6 / F5
2.6 Appendix: Cables and Circuit Drawings, Conversion PCB 04/2000 Issue
66

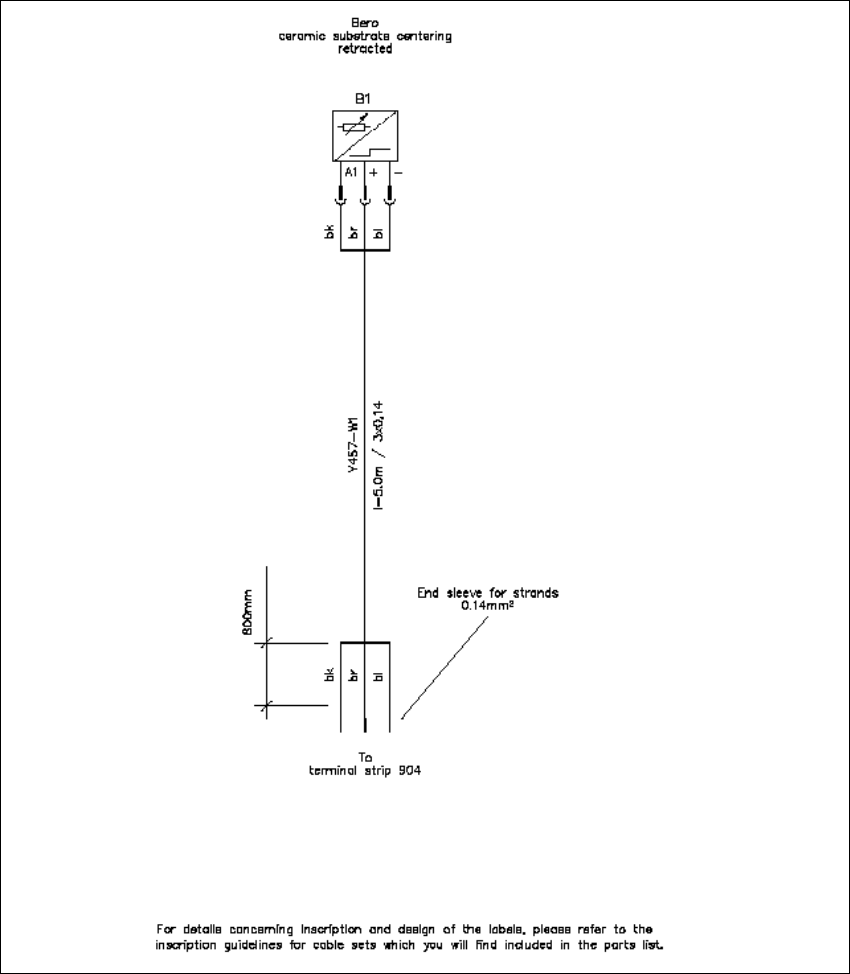

Fig. 2.6.2 Cable for Proximity Switch for SIPLACE 80 F4/F4-6/F5 and S20/S23HM
SIPLACE 80 S-20 / S-23HM/ F4 / F4-6 / F5 2 Retrofitting Instructions for Ceramic Substrate Centering Unit (Optional)
04/2000 Issue 2.6 Appendix: Cables and Circuit Drawings, Conversion PCB
67

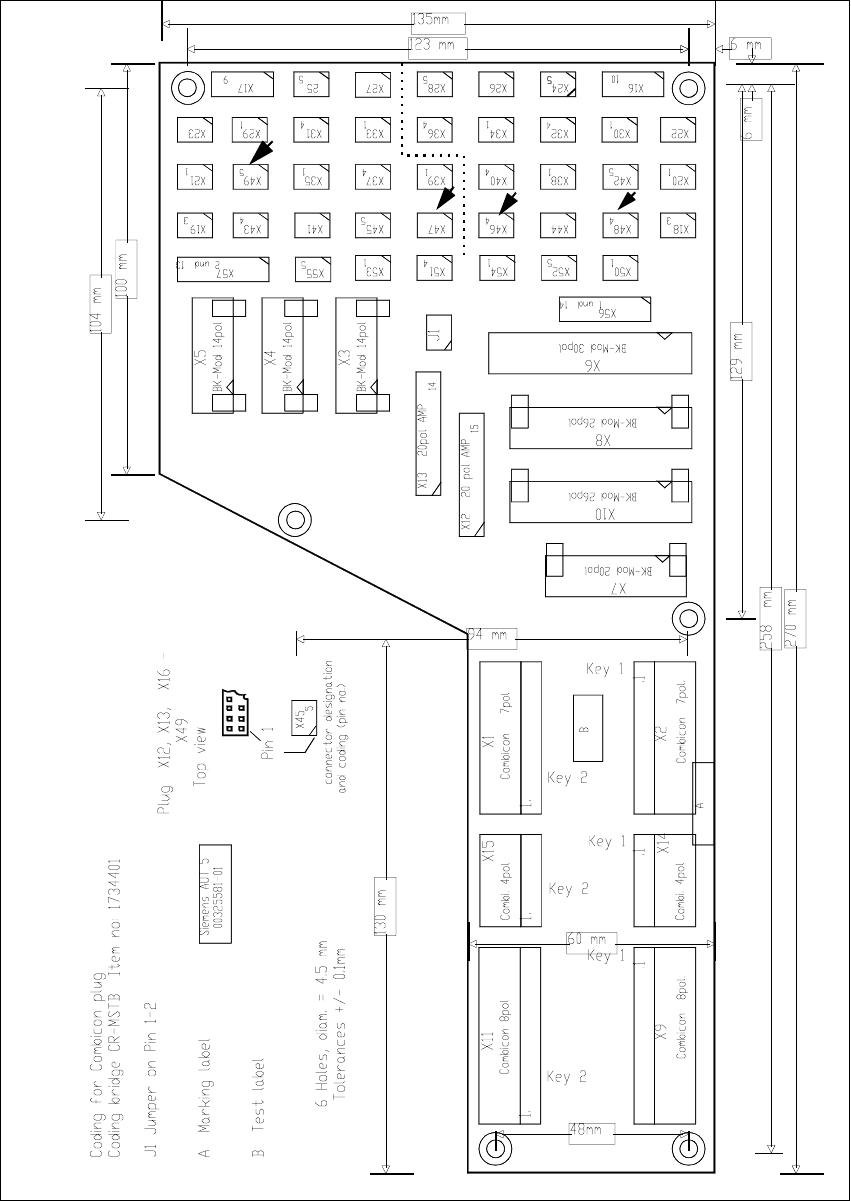

Fig. 2.6.3 Layout: Conversion PCB Conveyor Control (SIPLACE 80 S20/F4)
2 Retrofitting Instructions for Ceramic Substrate Centering Unit (Optional) SIPLACE 80 S-20 / S-23HM/ F4 / F4-6 / F5
2.6 Appendix: Cables and Circuit Drawings, Conversion PCB 04/2000 Issue
68

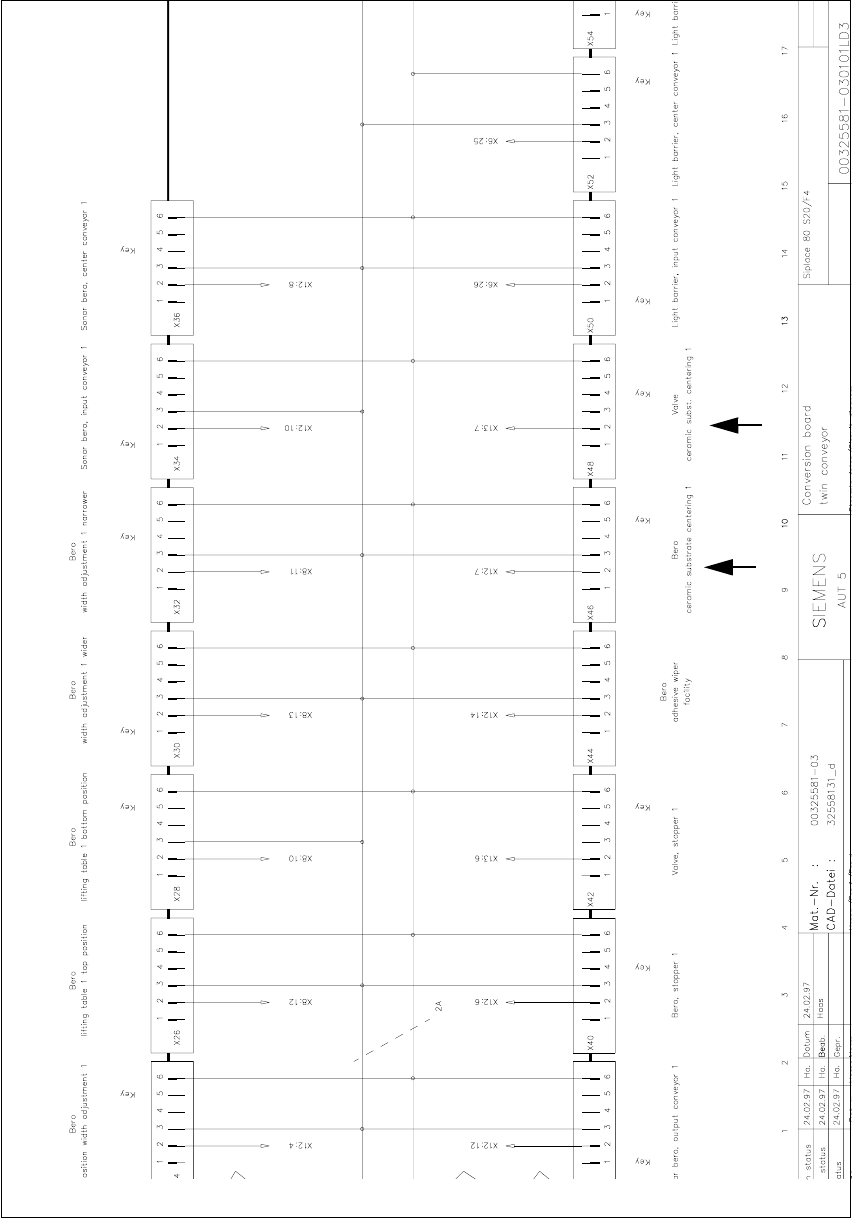

Fig. 2.6.4 Conversion PCB, Dual Conveyor: Connection of Ceramic Substrate Centering Units 1 and 2
