Samsung Component Place r SM421 Maintenance Refer ence 7.3.8 VISION MUX. (INTER Pin ON. Signal Description . F ACE) Board 给 使 用 于 本 设 备 的 6 个 Fly Camera 和 Fiducial Camera 及 2 个 Fix Camera 提 供 Sync. Signal ，总共 9 个 Camera …

100%1 / 140
7-25
 基板状态诊断LED信息
LED ON
DESCRIPTION Remark LED ON DESCRIPTION Remark
LED1-Y
+5V
LED1-G +1.5V
LED2- Y
+3.3V
LED2-G +COM
LED3- Y SKEW_FAULT1 LED3-G INTS
LED4- Y LED4-G SKEW_DIR1
SKEW_FAULT2
LED5- Y SKEW_INT_EN1 LED5-G SKEW_DIR2
LED6- Y SKEW_INT_EN2 LED6-G CLK
 SWITCH 及 JUMPER SETTING信息
SWITCH1 DESCRIPTION Remark SWITCH1 DESCRIPTION Remark
1 OFF 2 ON
3 OFF 4
OFF
5 OFF 6 OFF
7 OFF 8 OFF
SWITCH2 DESCRIPTION Remark SWITCH2 DESCRIPTION Remark
1 ON 2 ON 1
3 ON 4
ON
JUNPER DESCRIPTION Remark JUMPER DESCRIPTION Remark
1 ON 2 ON
3 ON 4 ON
Samsung Component Placer SM421 Maintenance Reference

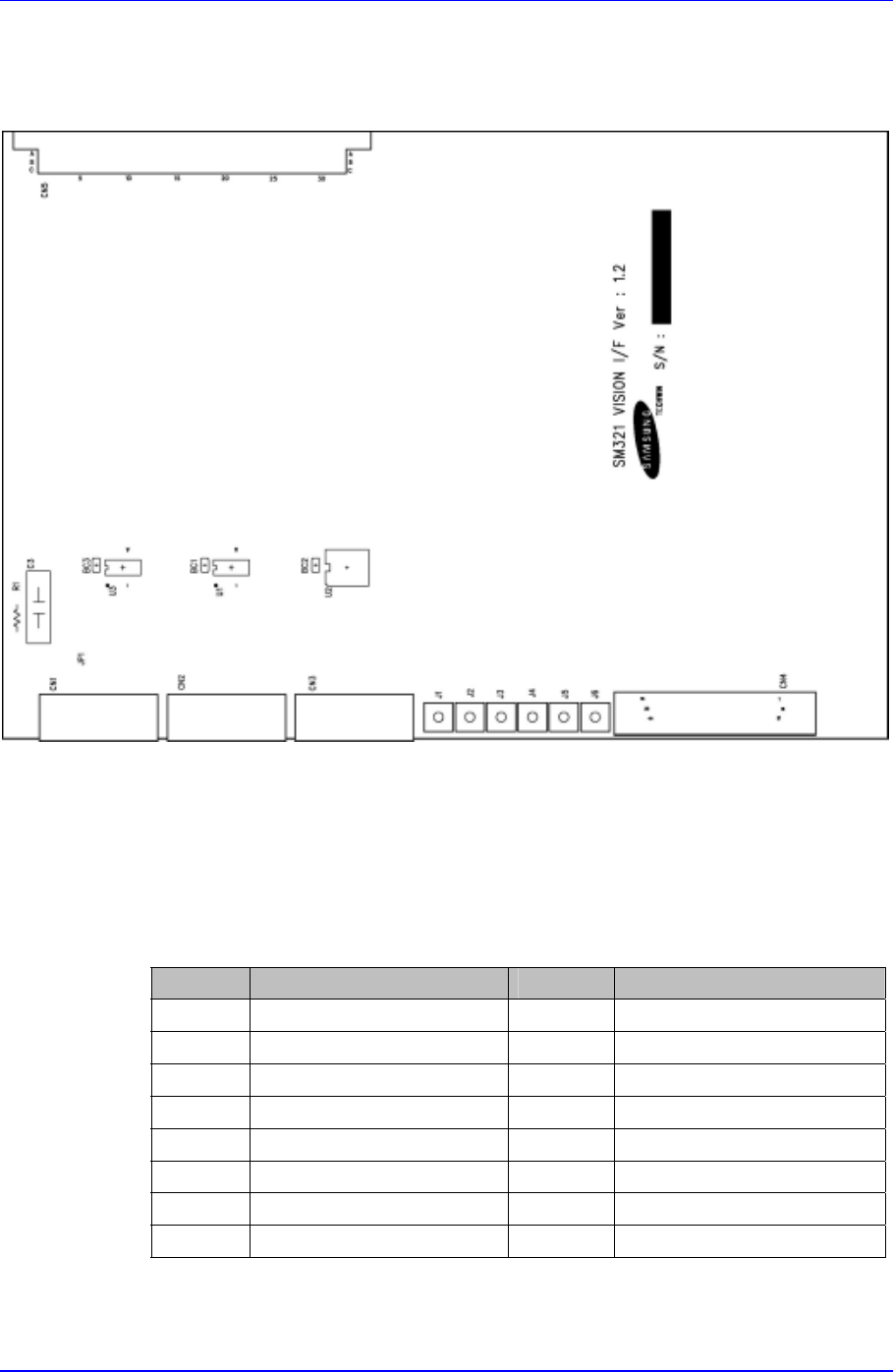

7.3.8 VISION MUX. (INTER
Pin ON. Signal Description
. FACE) Board
给使用于本设备的6个Fly Camera和Fiducial Camera及2个Fix Camera 提供Sync.
Signal，总共9个 Camera中输入的Analog Image Signal传达给Vision Grabber。
.
使用的电源
外部输入电源: 无须输入其他电源。.
内部使用的电源: +5.0VDC, +12VDC
主要功能说明
 CON1 (HIROSE DB-15P/FR-100) – Fiducial Camera Part
Pin ON. Signal Description
1 GND 2
+12VDC
3 GND 4
Hsync2
5 GND 6
M2_Hsync_2
7 GND 8
N.C
9 GND 10
+12VDC
11 GND 12
M2_VID2_IN2
13 GND 14
Vsync_2
15 GND
7-26
7-27
 CON2 (HIROSE DB-15P/FR-100) – Fix Camera #1,2 Part
Pin ON. Signal Description Pin ON. Signal Description
1
GND
2
+12VDC
3
GND
4
M1_VID2_IN1
5
GND
6
Hsync_0
7
GND
8
N.C
9
GND
10
+12VDC
11
GND
12
M1_VID2_IN2
13
GND
14
Vsync_0
15
GND
Camera Power Part  CON3 (HIROSE DB-15P/MR-100) – Fly
Pin ON. Signal Description Pin ON. Signal Description
1 VSync+ 2 VSync-
3 HSync+ 4 HSync-
5 N.C 6 HRS+
7 HRS- 8 TRIG+
9 TRIG- 10 N.C
11 +12VDC 12 +12VDC
13 N.C 14 GND
15 GND
 CN4( HIROSE DB-44P/MR) – Vision Grabber Part
Pin ON. Signal Description Pin ON. Signal Description
1 CAM0_A 2 GND
3 CAM0_B 4 GND
5 CAM1_A 6 GND
7 CAM1_B 8 GND
9 CAM2_A 10 GND
11 CAM2_B 12 GND
13 CAM3_A 14 GND
15 CAM3_B 16 GND
17 HDO0 18 GND
19 VDO6 20 GND
21 HDO6 22 GND
23 EXPO 24 GND
25 CAM5_A 26 GND
27 EXP1 28 GND
29 CAM4_A 30 GND
31 VDO0 32 GND
33 HRS 34 GND
