7. Controller Section

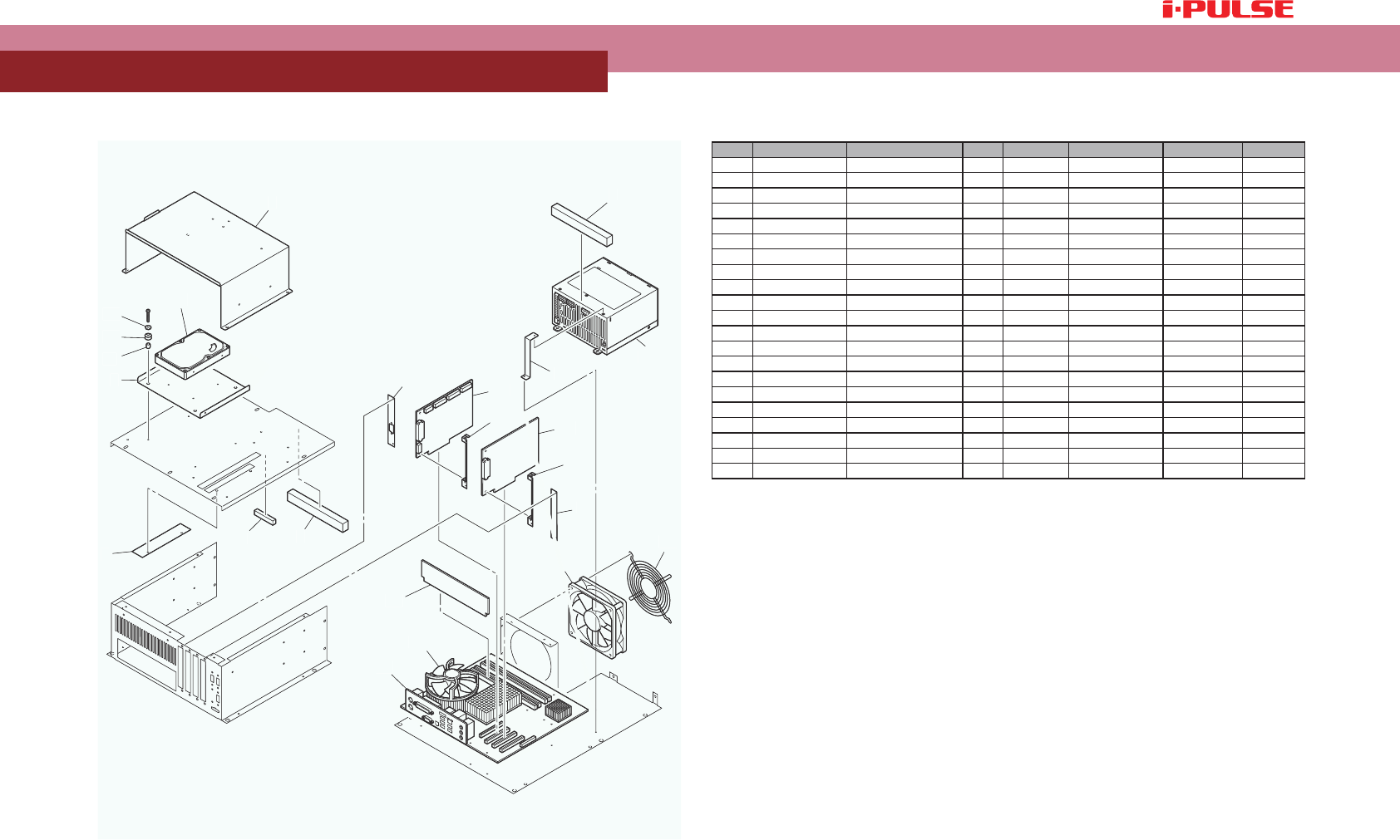

7-1. Control Box
M4008
17
2
2
16
12
10
11
6
7
8
9
5
4
21
1
20
15
13
14
19
3
18
3
17
2
2
16
12
10
11
6
7
8
9
5
4
21
21
1
20
15
13
14
19
3
18
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M410G-00X BRKT, ATX 1
2 LE3-M400H-00X GOM, CTRL BOX 2
3 LE3-M400A-01X BRKT, BOARD 1 2
4 LE3-M400B-01X BRKT, BOARD 2 1
5 LE3-M400P-00X BRKT, PORT 1
6 LE3-M400E-01X PLATE 1 1
7 LE3-M400C-00X GOM, BOARD 1
8 LE3-M400M-00X COVER, BOX 1 1
9 LC1-M4006-01X PANEL, HDD (2) 1
10 LC1-M40A3-00X H.E.D. 4
11 LC1-M40A2-00X SPACER, HED 4
12 LC2-M510R-01X WASHER 4
13 LE1-M40H7-00X MOTHER BOARD1 1
14 LE3-M65E2-00X CPU 1
15 LE3-M65E3-00X MEMORY 1
16 LE3-M65E4-00X SERIAL ATA HDD 1
17 LE3-M65E5-00X ATX POWER SUPPLY 1
18 LC3-M40HJ-00X BOARD, VM7 1
19 LE3-M40H0-00X BOARD, MCB 1
20 LG0-M11HC-00X GAURD, FINGER 1
21 LE3-M6515-00X FAN ASSY. 1
25

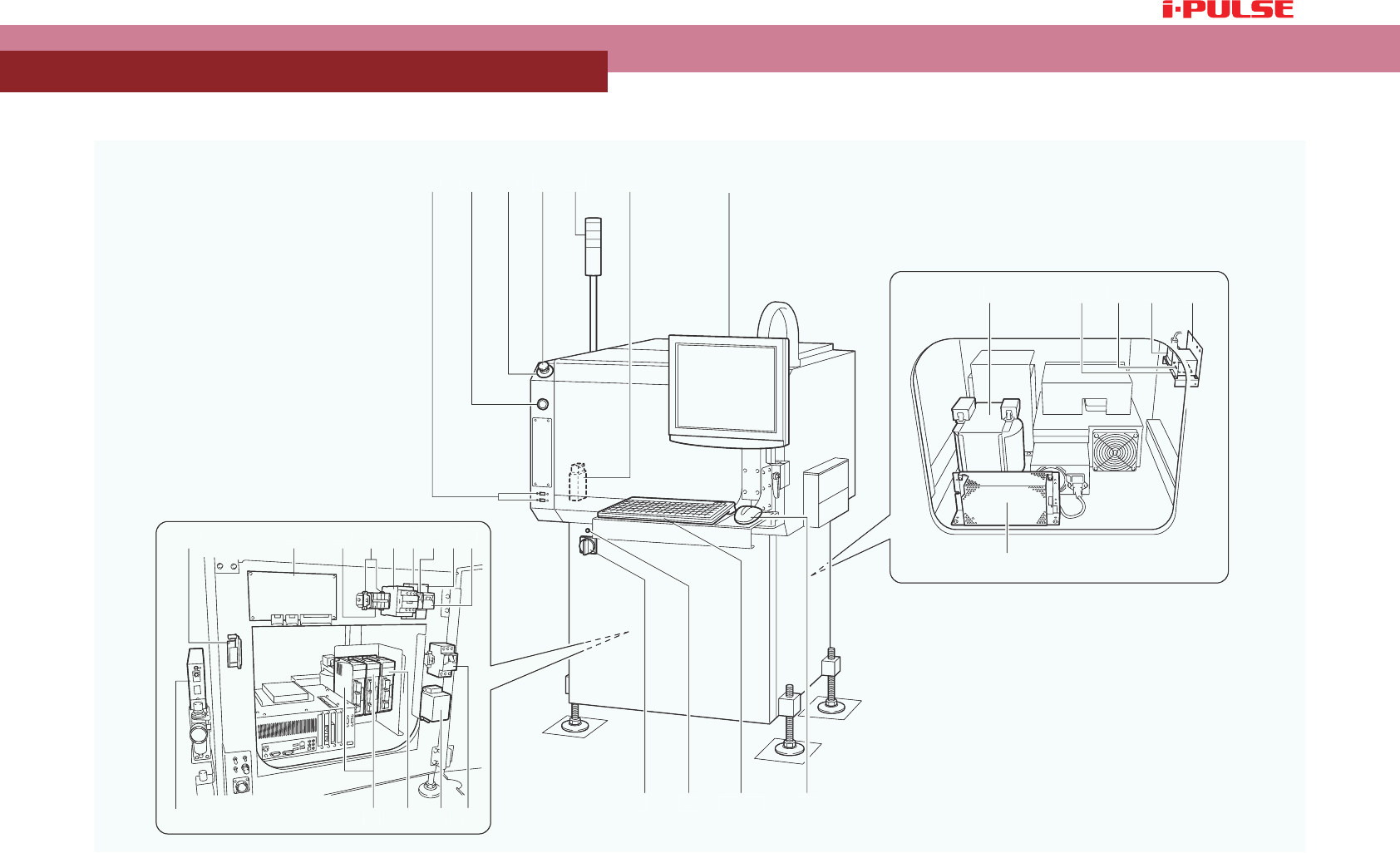

8. Exterior, etc Section
8-1. Exterior, etc
1713
1 21
2018,19
9
3 212
68292810 577
1124
27
4 26 253130
142322 15 16
17
13
1
21
20
18,19
9
3
2
12
6
8
29
28
10
5
7
7
11
24
27
4
26
25
31
30
14
23
22
15
16
26
8. Exterior, etc Section
8-1. Exterior, etc
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM5-M6554-10X MAIN SWITCH 1
2 KM6-M6514-00X CIRCUIT PROTECTOR, 4 1
3 LC2-M537A-00X NOIZE FILTER 1
4 LC2-M5319-00X POWER TRANSFORMER 1
5 KH1-M6515-00X CIRCUIT PROTECTOR 5 1
6 KGS-M6514-00X CIRCUIT PROTECTOR 4 1
7 KH1-M539M-30X PROTECTOR ACCES. 2P 2
8 LC3-M6510-00X CONTACTOR 1
9 LE3-M6562-00X POWER SUPPLY 1
10 LE3-M40H2-00X BOARD, DIS 1
11 LE2-M65H1-00X SERVO AMP 2
12 LE2-M65H2-00X SERVO AMP 1
13 LC1-M13H2-00X SWITCH, EMG ASSY. 1
14 KGK-M5381-00X EMG PLATE 1
15 LE3-M6541-00X LIGHT 1 ASSY. 1
16 LE3-M6542-01X SAFETY SW ASSY. 1
17 LE3-M6581-00X TOUCH PANEL LCD 1
18 KW3-M5150-50X KEYBOARD J 1
19 KW3-M5150-60X KEYBOARD E 1
20 LE3-M65F1-00X MOUSE 1
21 LE3-M66H2-01X LED. POWER ASSY. 1
22 LC1-M40H2-00X HNS.EX-USB 2
23 KGA-M669V-14X HNS, SWITCH READY 1
24 LG0-M53H4-01X UPS2 1
25 LE3-M400F-00X BRKT, SRA 1
26 LG0-M5303-00X COVER,SRA 1
27 LC2-M9133-00X DRIVER 1
28 KG2-M643A-00X PARTS 3-1 4
29 K44-M643E-00X PARTS 3-2 (END PLATE) 2
30 LG0-M53H5-00X PB. ASSY, SRA 1
31 LE3-M66M2-01X HNS. TC11-OUTLET 1
