8 3. Moving-axis Section 3-1. X-axis No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 LG7-M2201-02X LM. GUIDE, X1 1 2 LG0-M26F0-00X NYLOCK BOLT (M5x18) 20 3 LG0-M26A5-00X CAP 20 4 LG7-M2202-…
7

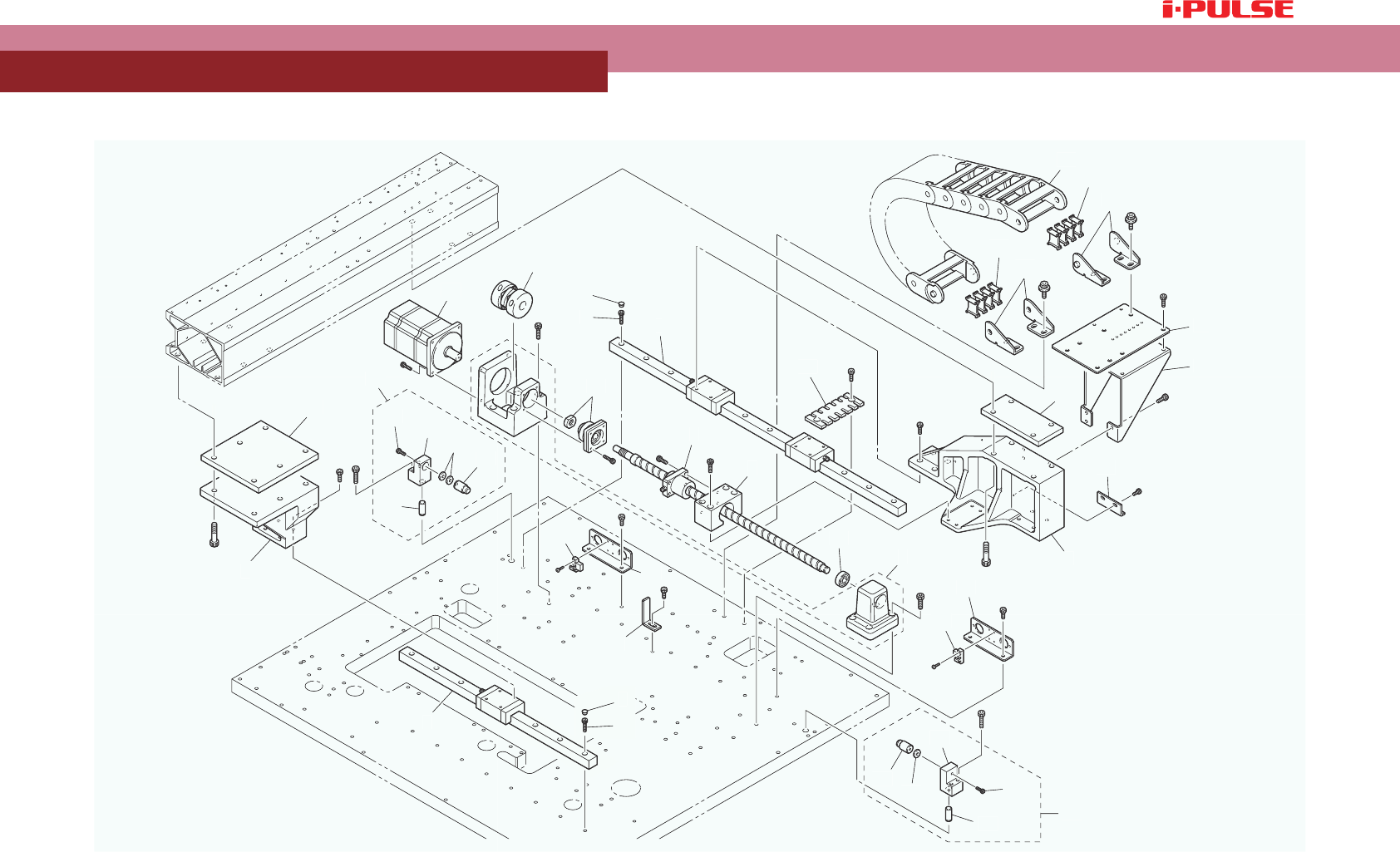

3. Moving-axis Section
3-1. X-axis
16
1
3
2
3
2
21
12
11
20
22
22
19
4
23
17
29
30
32
31
28
27
14
5
7
34
37
35
36
38
33
10
13
25
8
13
24
26
9
6
15
18
18
16
1
3
2
3
2
21
12
11
20
22
22
19
4
23
17
29
30
32
31
28
27
14
5
7
34
37
35
36
38
33
10
13
25
8
13
24
26
9
6
15
18
18
8
3. Moving-axis Section
3-1. X-axis
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LG7-M2201-02X LM. GUIDE, X1 1
2 LG0-M26F0-00X NYLOCK BOLT (M5x18) 20
3 LG0-M26A5-00X CAP 20
4 LG7-M2202-01X SLIDER-L 1
5 LG7-M2203-02X SLIDER-R 1
6 LG7-M2204-10X BALL SCREW, X 1
7 LG7-M2205-02X LM. GUIDE, X2 1
8 LG7-M220A-01X HOLDER SET, X-AXIS 1
9 LG7-M2209-00X HOLDER, NUT X 1
10 LG7-M220B-01X BLOCK PLATE, X 1
11 LG7-M220C-02X HOLDER, BEAR U 1
12 LE3-M220D-00X HOLDER, BEAR B 1
13 LG7-M220H-01X PLATE, SENSOR X 2
14 LE3-M2220-00X SPACER F 1
15 LE3-M2221-00X SPACER R 1
16 LG7-M22A4-00X CLAMP, CABLE 1
17 LG7-M22A1-10X COUPLING, X-AXIS 1
18 LG7-M22A2-00X SUPPORT UNIT 1
19 LG7-M22A3-00X CABLE BEAR, X 1
20 LG0-M22A4-00X BRACKET FIX 1
21 LG0-M22A5-00X BRACKET MOV. 1
22 LG0-M22A6-00X SEPARATER, X 15
23 LE3-M6521-01X MOTOR ASSY. 1
24 LG9-M220F-00X BRACKET, FIXED 1
25 LE3-M653A-01X SENSOR ASSY. 1
26 LE3-M653E-01X SENSOR ASSY. 1
27 LG7-M2211-00X STOPPER L ASSY. 1
28 KV7-M2651-10X DAMPER, STOPPER 1
29 KV7-M2652-00X BRACKET, STOPPER Y 1
30 KV7-M2653-00X PIN, PARALLEL 1
31 LG7-M22A5-00X WASHER 2
32 91317-04014 BOLT HEX. SOCKET HEAD 1
33 LG7-M2212-00X STOPPER R ASSY. 1
34 KV7-M2651-10X DAMPER, STOPPER 1
35 KV7-M2652-00X BRACKET, STOPPER Y 1
36 KV7-M2653-00X PIN, PARALLEL 1
37 LG7-M22A5-00X WASHER 1
38 91317-04012 BOLT HEX. SOCKET HEAD 1
