KGT_11_1

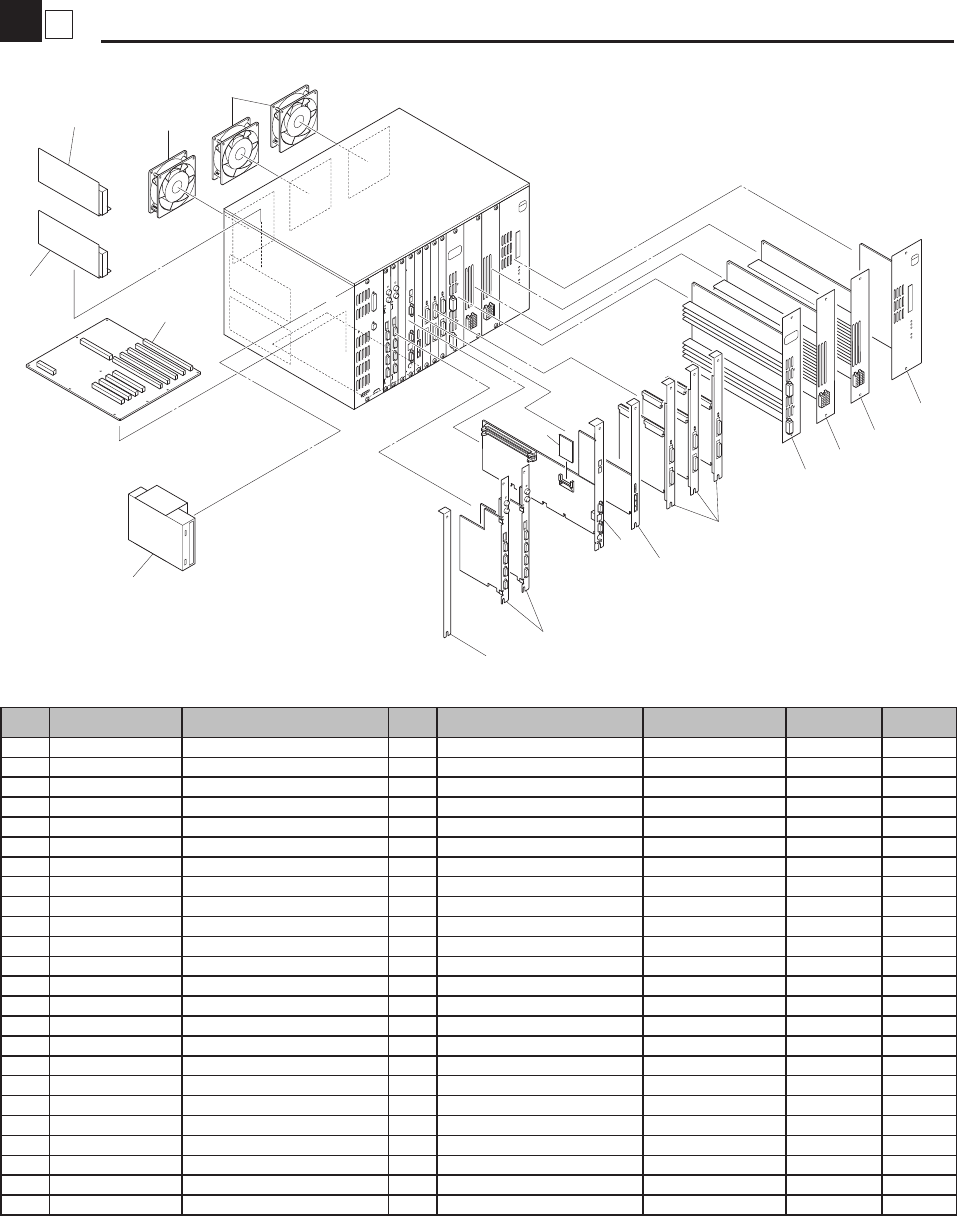

1 1 1 Control Box Controller KGT -081 105 1 10 8 4 4 5 2 3 6 7 9 12 15 15 14 13 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGK-M4510-00X MOTHER BOARD ASSY 1 2 KGN-M5840-02X SER VO BOAR…
1
11
Control Box
Controller
KGT-081105
1
10
8
4
4
5
2
3
6
7
9
12
15
15
14
13
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2
KGN-M5840-02X SERVO BOARD ASSY 3
2-1 KGN-M5840-04X SERVO BOARD ASSY 3 (2006/4/10) MC40013 OK
3 KGK-M4200-00X SYSTEM UNIT ASSY 1
3-1 KGS-M4200-00X SYSTEM UNIT ASSY 1 (2006/3/15) MC20176 NG
3-2
KGS-M4200-20X SYSTEM UNIT ASSY 1 (2007/8/29) MD80036 NG
3-3 KGS-M4209-C0X SPARE SYSTEM UNIT 1 1 SPARE (2007/11/15) MD90073 OK
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 KGN-M5810-10X DRIVER BOARD ASSY 1
6
KGJ-M441H-02X VISION BOARD ASSY 2
6-1 KGJ-M441H-03X VISION BOARD ASSY 1 (2004/6/16) MA60030 OK
6-2 KGJ-M441H-03X VISION BOARD ASSY 2 (2004/7/16) MA70080 OK
7 KGR-M4530-01X INTERFACE BOARD ASSY 1
8 KGN-M5880-00X D. POWER BOARD ASSY 1
9 KGK-M4136-10X PANEL NO VISION 1
10 KW3-M4256-00X CD-ROM DRIVE 1
12 KGK-M4255-00X FLASH DISK 1
12-1 KGK-M4255-20X FLASH DISK 1 (2004/10/20) MA00085 OK
12-2
KHL-M4255-00X FLASH DISK 1 (2007/6/20) MD60085 OK
13
KGA-M5303-00X SW POWER DC5 1 PAA 150 F-5
13-1
KGS-M5303-00X SW POWER DC5 1 PBA 150 F-5 (2007/1/22) MCY0159 NG
14 KGK-M5303-10X SW POWER DC12 1
15 KGA-M4185-10X FAN MOTOR ASSY 3
