3 Setting up and Commissioning
64 Montageanleitung / Assembly Instructions WPC an/on SIPLACE SX1/SX2 - 03/2025
Fig.18: Mounting the waste tape chute
► Install the waste tape slide. For more infor-
mation, read section 5.1.4 "Replacing the
Waste Tape Chute" [}78].
► Move the WPC5 into the machine (see also 4.1 "Docking the WPC5/WPC6" [}65]).
CAUTION
Camera
Take care not to damage the stationary camera.
► Plug the WPC5 into the machine.
► Connect the WPC5 safety chain to the machine.
► Crank the WPC5 down.
► Switch on the WPC/WPCs and the machine.
NOTICE
Start up sequence with two WPCs
In case of two WPCs on one machine the start up sequence has to be observed. Otherwise some er-
rors (CAN switch errors) may occur.
► Always switch on the WPCs first and then the machine.
► On machines of type SX1/SX2 as well as DX1/DX2 with two WPCs, both WPCs must be
switched on simultaneously with the machine (within 12 sec.).
If not, the CAN switch switches into the "error" state.
► Move the changeover table into the machine.
► Perform a function check.
4 Operator Tasks
Montageanleitung / Assembly Instructions WPC an/on SIPLACE SX1/SX2 - 03/2025 65
4 Operator Tasks
4.1 Docking the WPC5/WPC6
When installing and removing the WPC5/WPC6, make sure that the arms of the feed axis do not hit
any parts (e.g. stationary cameras etc.).
► If the WPC5/WPC6 is not yet standing on its wheels, fasten the hexagonal shaft (crank handle) to
the lifting mechanism and turn in a clockwise direction, to lift the WPC5/WPC6.
► Stop turning when you have enough room to dock the WPC5/WPC6 onto the machine.
► Open the machine cover on the relevant location.
► If there is a height limiter present in the WPC5/WPC6 location, this needs to be turned over and
fixed into place upside down. Make sure that the height limiter does not touch the cover plate. To
do this, loosen the three screws fastening the height limiter and fit it into the same place upside
down (with two fastening screws).
► Move the WPC5/WPC6 into the location and connect the energy and data supply cable. Make
sure that the arms of the feed axis do not collide with any machine parts.
► Lower the WPC5/WPC6 until it is standing on its feet. Turn the crank handle on the lifting mech-
anism until the wheels are about 1 cm above the ground.
Aligning the WPC5/WPC6
Fig.19: Checking the position of WPC5/WPC6
1. Circular spirit level
► Check the position of the WPC5/WPC6
with the help of the integrated spirit level
(1), which is between the two rails of the
feeder axis.
NOTICE!
The cover on the feed axis arms is not
shown in the diagram.
.
Fig.20: Adjustable feet
1. Foot with 30 mm nut
2. 36 mm locknut
3. Hexagonal shaft (crank handle)
► If the WPC5/WPC6 is not level, use a 30
mm and 36 mm open-ended wrench to ad-
just the feet in turn, until more than half of
the bubble is in the circle of the spirit level.
4 Operator Tasks
66 Montageanleitung / Assembly Instructions WPC an/on SIPLACE SX1/SX2 - 03/2025
Setting the exact height of the WPC5/WPC6

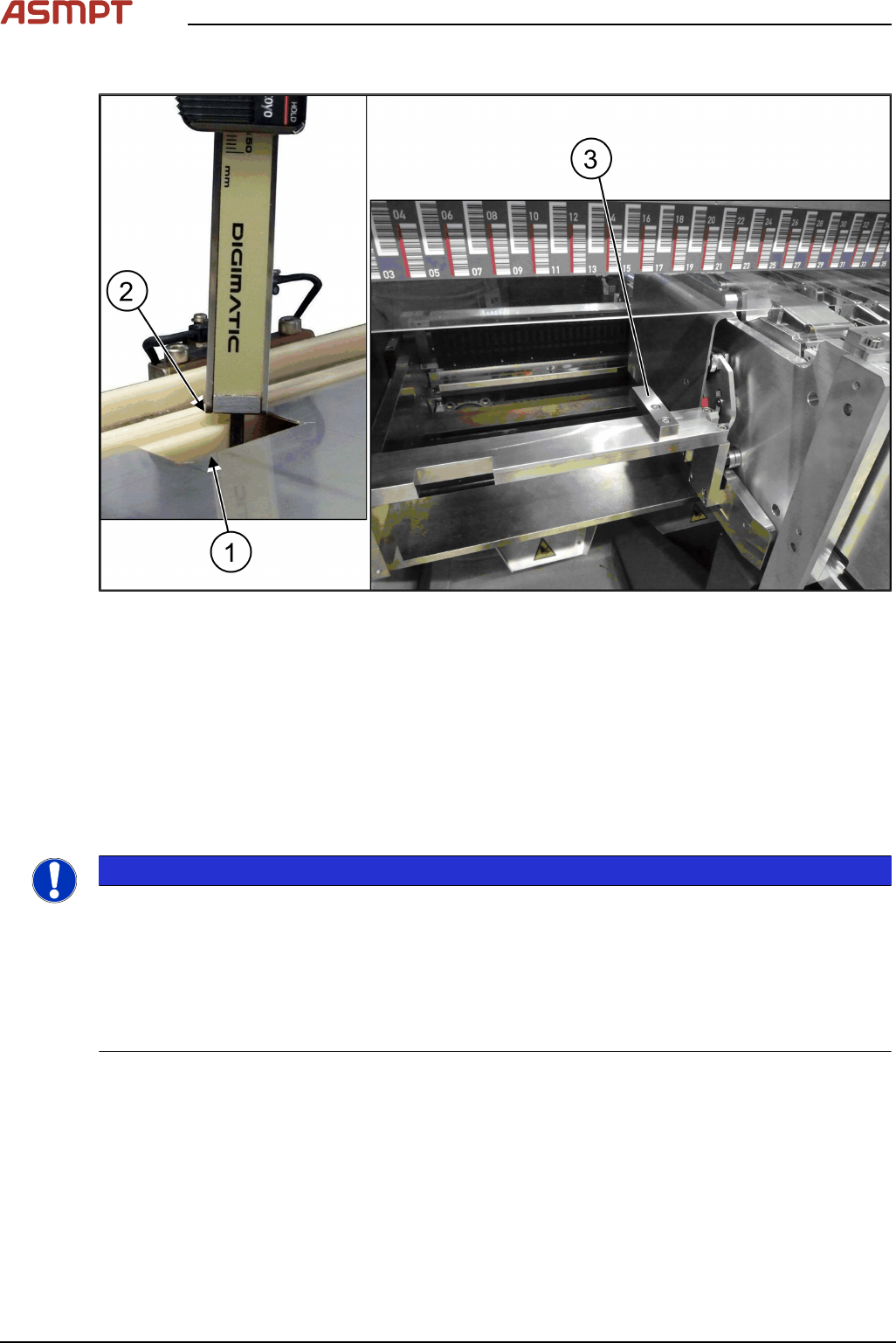

Fig.21: Setting the height of the WPC5/WPC6
► Use a measuring scale to adjust the WPC5/WPC6 to the correct height through the opening (1)
on the cover plate of the feed axis.
► Use the gauge to measure the height of the WPC5/WPC6 from the white sliding surface of the
waffle pack tray carrier (2) to the aluminum block on the changeover table insert (3). The correct
height should be 87±0.5mm.
► If the height is outside the specified value, adjust each foot accordingly to lower or raise the
WPC5/WPC6 to the correct height.
4.2 Switch on the WPC5/WPC6
NOTICE
Start up sequence with two WPCs
In case of two WPCs on one machine the start up sequence has to be observed. Otherwise some er-
rors (CAN switch errors) may occur.
► Always switch on the WPCs first and then the machine.
► On machines of type SX1/SX2 as well as DX1/DX2 with two WPCs, both WPCs must be
switched on simultaneously with the machine (within 12 sec.).
If not, the CAN switch switches into the "error" state.
