G -S172-04,14
0805-002
351
361
352
357 362
356
352
"DETAIL"
Special Specifications
G -S172-04,14
372
.
373
.
374
363
.
364
.
365
367
.
368
.
369
ビーム
X
部

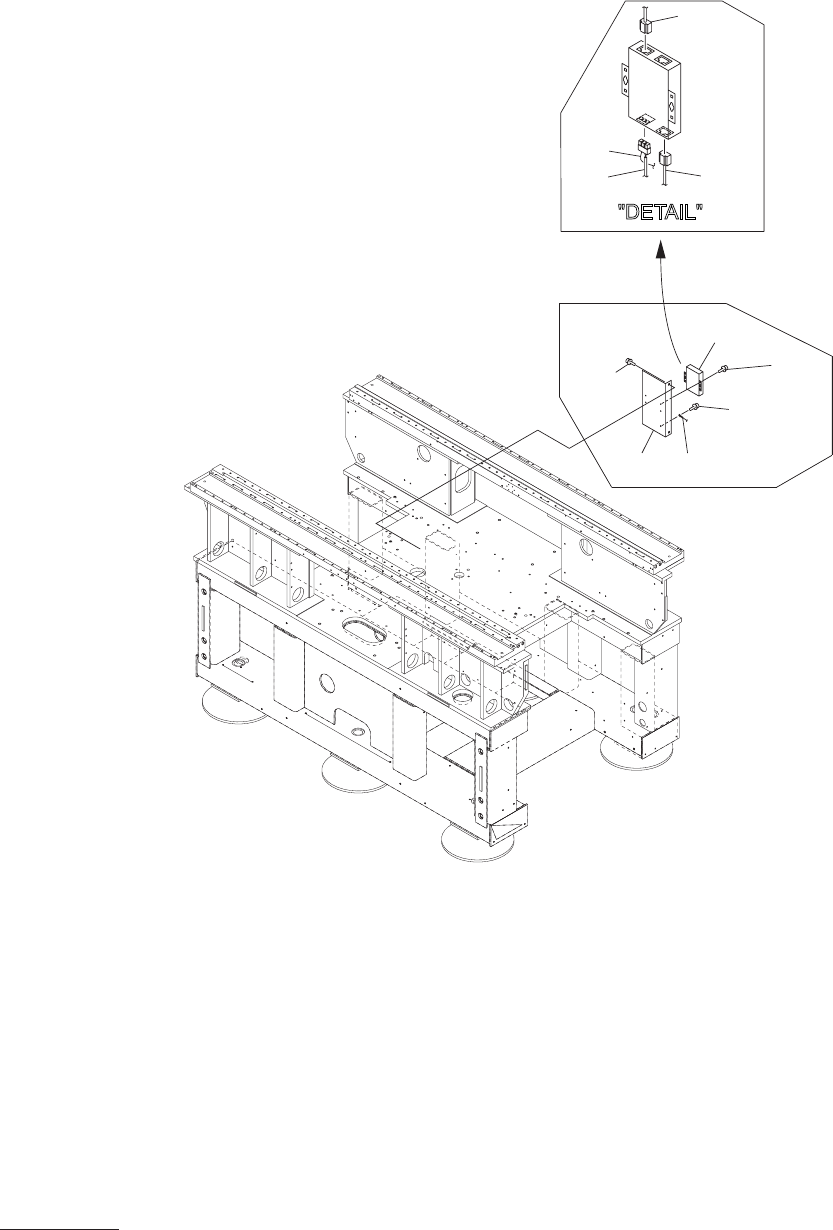

BEAM X SECTION
Fig. CX-4
ケーブル
Cable
CX-4 illust-1
G -S172-04,14
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
CX-4 list-1
351 6301619866 PLATE 1
858C-A100010-A051
211DD505
351 6301619866 PLATE 1
858C-A100020-A051
211DD505
352 6301524412 ASSY,CORD 1
858C-A100010-A052
0W201496
352 6301524412 ASSY,CORD 1
858C-A100020-A052
0W201496
356 6301602974 ASSY,CORD 1
858C-A100010-A056
0W201809
356 6301602974 ASSY,CORD 1
858C-A100020-A056
0W201809
357 6301602981 ASSY,CORD 1
858C-A100010-A057
0W201810
357 6301602981 ASSY,CORD 1
858C-A100020-A057
0W201810
361 6301344102 UNIT,I/O 1 U65
858C-A100010-A151
4U250180
361 6301344102 UNIT,I/O 1 U65
858C-A100020-A151
4U250180
362 6301116334 CORD(LAN 3M) 1
858C-A100010-A152
4W202217
362 6301116334 CORD(LAN 3M) 1
858C-A100020-A152
4W202217
363 4110418908 SCR PAN 3X6 4
858C-A100010-A153
221E0497
363 4110418908 SCR PAN 3X6 4
858C-A100020-A153
221E0497
364 4110864408 WASHER SPR 3 4
858C-A100010-A154
221H0280
364 4110864408 WASHER SPR 3 4
858C-A100020-A154
221H0280
365 4111191909 WASHER V 3X7X0.5 4
858C-A100010-A155
221H0311
365 4111191909 WASHER V 3X7X0.5 4
858C-A100020-A155
221H0311
367 6300007749 BOLT,HEX-SCT 2
858C-A100010-A156
221A0029
367 6300007749 BOLT,HEX-SCT 2
858C-A100020-A156
221A0029
368 4111416705 WASHER SPR 5 2
858C-A100010-A157
221H0287
368 4111416705 WASHER SPR 5 2
858C-A100020-A157
221H0287
369 6300010220 WASHER 1
858C-A100010-A158
221H0005
369 6300010220 WASHER 1
858C-A100020-A158
221H0005
372 4111131400 SCR PAN 4X6 1
858C-A100010-A159
221E0509
372 4111131400 SCR PAN 4X6 1
858C-A100020-A159
221E0509
373 4110081706 WASHER SPR 4 1
858C-A100010-A160
221H0283
373 4110081706 WASHER SPR 4 1
858C-A100020-A160
221H0283
374 4111192104 WASHER V 4X9X0.8 1
858C-A100010-A161
221H0314
374 4111192104 WASHER V 4X9X0.8 1
858C-A100020-A161
221H0314
GXH-3JPH
G -S172-04
G -S172-14
CX-4
G -S172-04,14
0805-002
2
3
4
5
21
9
52
・
60
・
56
23
10
7
6
13
8
1
54
・
61
・
57
52
・
60
・
56
51
・
59
55
・
62
・
58
53
・
61
・
57
14
BLOCK1
22
72
73
.
74
.
Special Specifications
G -S172-04,14
31
架台上全体

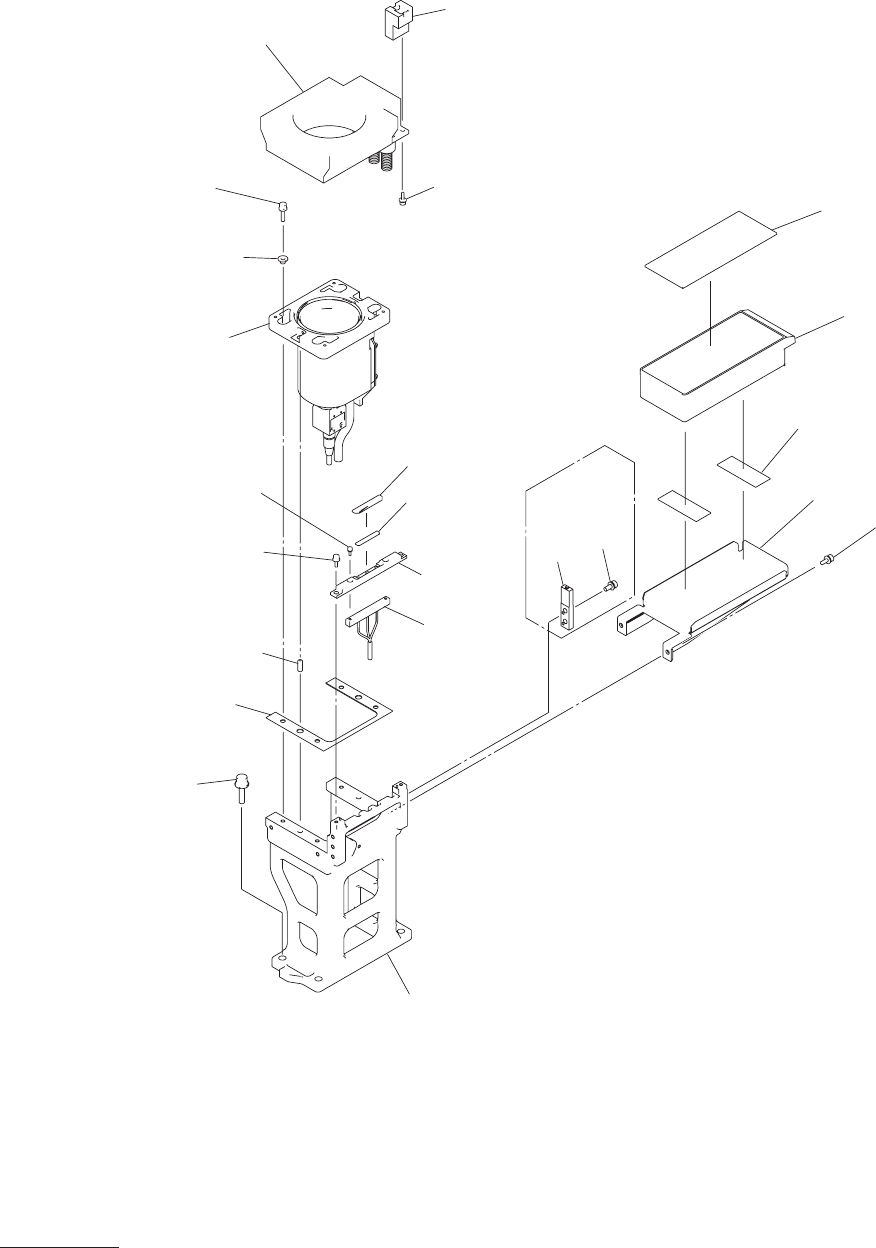

OVERALL UPPERFRAME
Fig. D-1
部品認識カメラ
1
Recognition Camera 1
D-1 illust-1
