2 Brief description

2.3 Tools and equipment required

86 Assembly Instructions / Montageanleitung SIPLACE TX2i V1 SIPLACE TX2 V2 Option Mixed-Mode 01/2019

2.3 Tools and equipment required

The following tools and equipment are required for the work described in this manual:

T Standard tooling

T31 00376492-xx Hexagon L-wrench set 1,5-10

T 03079617-xx Depth measuring gauge 300mm

T 00381443‑xx Pipe/hose cutters Festo ZRS 7658

C 03092492-xx Loctite 55

Service manual for your machine

00198147-xx Assembly instructions Vacuum Pump SIPLACE TX V1/V2-Series

2.4 Required Working Time

The complete installation will take approx. 5 hours.

2.5 Prerequisites and restrictions

The mixed mode option can be installed in the following machines:

●

SIPLACE TX2i V1

●

SIPLACE TX2 V2

Assembly on other machines of the TX series is not possible.

3 Installation

3.1 Sealing the Pneumatic Screwed Connections

Assembly Instructions / Montageanleitung SIPLACE TX2i V1 SIPLACE TX2 V2 Option Mixed-Mode 01/2019 87

3 Installation

Please observe the following steps:

●

Modifying the hose connections for the mixed mode

●

Installing the vacuum pump

●

Installing the vacuum control valve

●

Replacing the side sections of the NC (CPP)

●

Replacing the holder for the nozzle reject station

NOTICE

Assembly instructions for the vacuum pump

► Please also observe the assembly instructions for the "Option Vacuum Pump

SIPLACE TX V1/V2-Series" [DE+EN: 00198147‑xx]

3.1 Sealing the Pneumatic Screwed Connections

NOTICE

Sealing the pneumatic screwed connections

If pneumatic screwed connections are loosened, these will need to be sealed again after-

wards. Always use the same sealing technique as was used before they were removed.

The following sealing techniques are available:

► Sealing ring (rubber or plastic)

These are either supplied or you can use the ones used before. Check the condition of

used sealing rings for damage.

► Sealant

There are several variants of this:

Loctite 567 [03097172-xx] and Loctite 55 [03092492-xx]

After loosening the pneumatic screwed connection, clean the screwed thread and seal

it with Loctite. The sealing thread for Loctite 55 must be wound on in the direction of

the screwed thread.

There may also already be a sealant on the screwed thread.

3.2 Adapting the hose connections at the pneumatics block

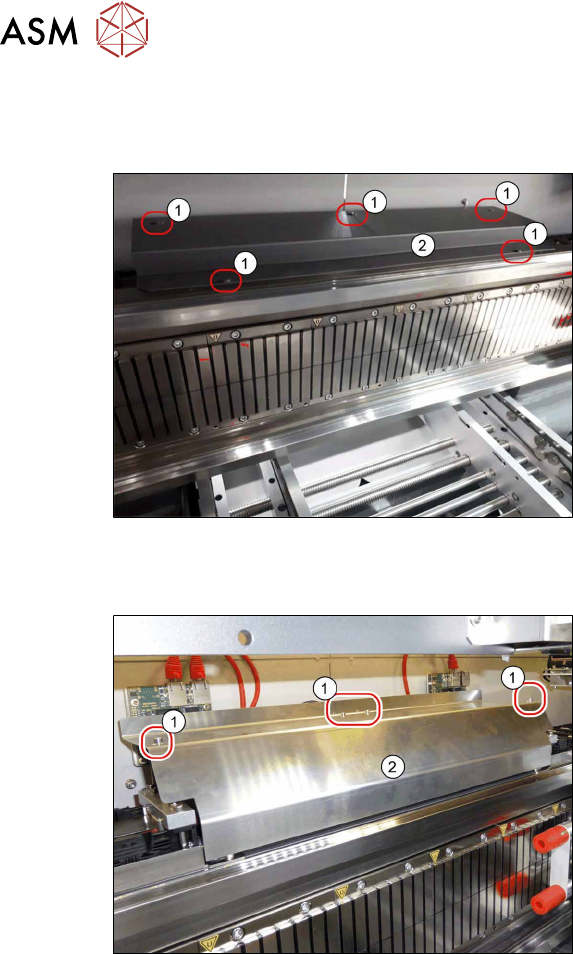

The pneumatics block is located underneath the trailing interfaces. For this reason, you have to

partially dismantle the interfaces as described in the following sections.

For details about the trailing interface on the SIPLACE TX V1, please refer to section 4.1.2.1 "Re-

placing the Trailing Cable Interface" [}105] (excerpt of the service manual).

For details about the trailing interface on the SIPLACE TX V2, please refer to section 4.1.3.1 "Re-

placing the Trailing Cable Interface" [}118] (excerpt of the service manual).
