3 Installation
3.2 Adapting the hose connections at the pneumatics block
Assembly Instructions / Montageanleitung SIPLACE TX2i V1 SIPLACE TX2 V2 Option Mixed-Mode 01/2019 89
3.2.2 Creating access to the pneumatics block and modifying the hose
connections
NOTICE
The following description shows the conversion for configuration of gantry1 with C&P20x
head (vacuum pump) and gantry2 with CPP head.
The procedure for configuration of gantry2 with C&P20x head (vacuum pump) and gantry1
with CPP head is the same.
NOTICE
Do not loosen the screws of both trailing interfaces at the same time.
► Begin with the trailing interface for the gantry without vacuum hoses (gantry with
CPP).

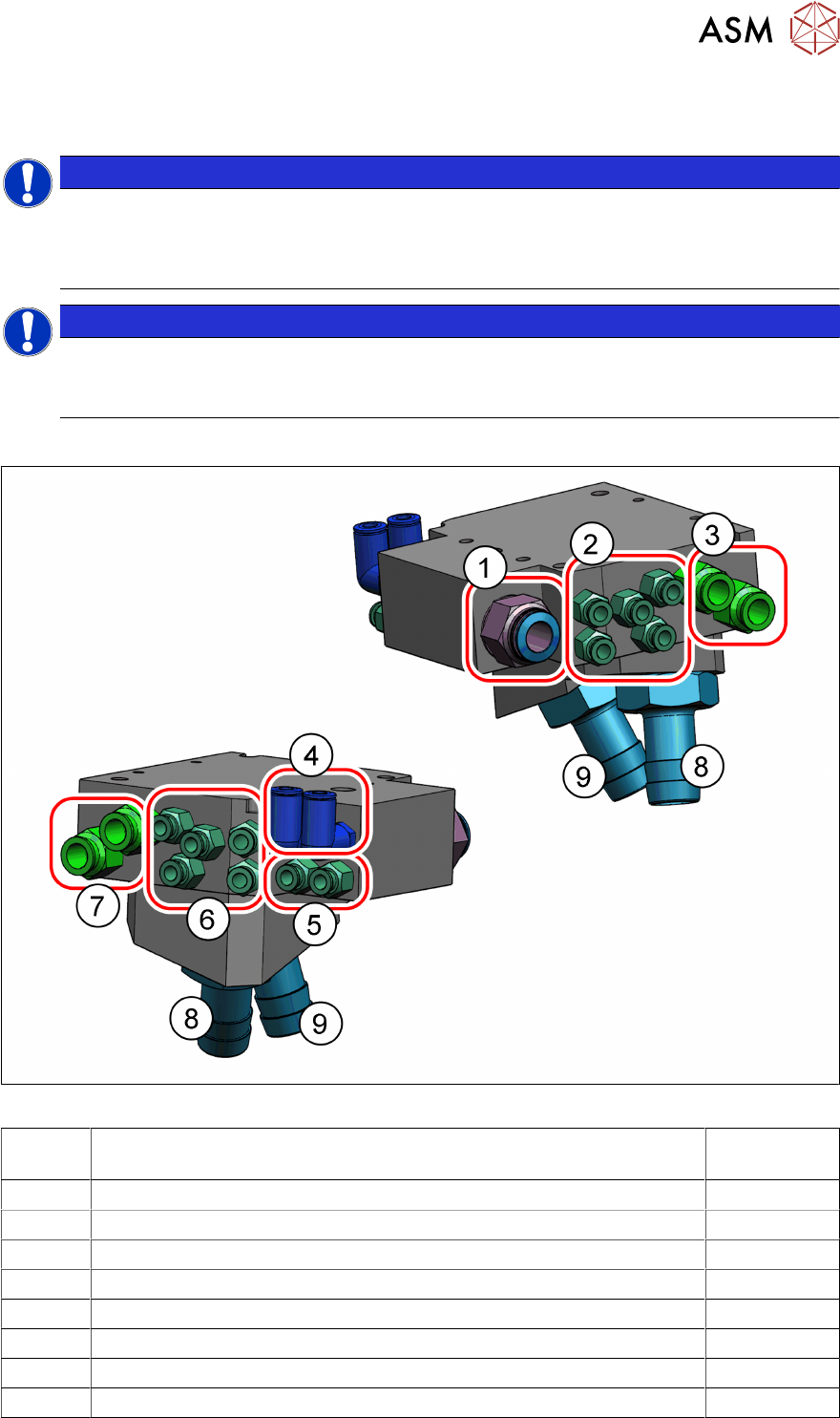

Overview - pneumatics block
Fig.15: Connections on the pneumatics block (using a SIPLACETXV2 as example)
1 Pneumatic hose PUN12 from proportional valve (compressed air place-
ment circuit inlet)
2 5x connections for the 7-fold hose in the trailing cable Gantry 1
3 2x vacuum hoses (Camozzi) Gantry 1
4 2x connections 7-fold hose (placement circuit outlet) Gantry 1
5 2x connections 7-fold hose (placement circuit outlet) Gantry 2
6 5x connections for 7-fold hose Gantry 2
7 2x vacuum hoses (Camozzi) Gantry 2
8 Fabric hose vacuum
9 Fabric hose compressed air or vacuum
3 Installation
3.2 Adapting the hose connections at the pneumatics block
90 Assembly Instructions / Montageanleitung SIPLACE TX2i V1 SIPLACE TX2 V2 Option Mixed-Mode 01/2019
Fig.16: Overview of the three chambers in the pneumatics block with the according connections (Using a
SIPLACETXV2 as example)
Item in
figure
Initial situation With mixed mode
Without vacuum pump With vacuum pump
1 Compressed Air Compressed Air Compressed Air
2 Compressed Air Vacuum Compressed Air
3 Not connected Vacuum Vacuum
3 Installation
3.2 Adapting the hose connections at the pneumatics block
Assembly Instructions / Montageanleitung SIPLACE TX2i V1 SIPLACE TX2 V2 Option Mixed-Mode 01/2019 91
Overview - conversion of the hose connections
Fig.17: Overview of pneumatics block conversion (using aSIPLACETXV2, as example with gantry 1: vacuum,
gantry 2: compressed air)
1. Removing the Camozzi hoses 6 and 7 (gantry 2')
2. Connecting the two hoses using Y pieces
3. Disconnecting the hoses 1 to 5 (gantry 1)
4. Sealing the connections 1 to 5 (gantry 1)
5. Sealing hose 5
6. Disconnecting the hoses 1 to 4 (gantry 1) to the Y pieces
Steps 1 and 2 are described in section 3.2.2.1 "Gantry without vacuum hoses (gantry with
CPP)" [}92].
Steps 3 to 6 are described in section 3.2.2.2 "Gantry with vacuum hoses(gantry with
C&P20x)" [}94].
