Controller 2 Assembly Instructions Tape cutter frequency cont rolle r SIPLACE S / F / HS / C- / HF- / X- / D-series 02/2008 Edition 19 : Connect the added cabl e to the controller unit: Each connec tor is marked with a n…
2 Assembly Instructions Tape cutter frequency controller SIPLACE S / F / HS / C- / HF- / X- / D-series Controller
02/2008 Edition
18
2.4 Assembly
: Remove all 6 connectors for electronic valves and cylinder sensors from the control board.
2
2
2
2
2
2
2
2
2
2
2
2
Controller 2 Assembly Instructions Tape cutter frequency controller SIPLACE S / F / HS / C- / HF- / X- / D-series
02/2008 Edition
19

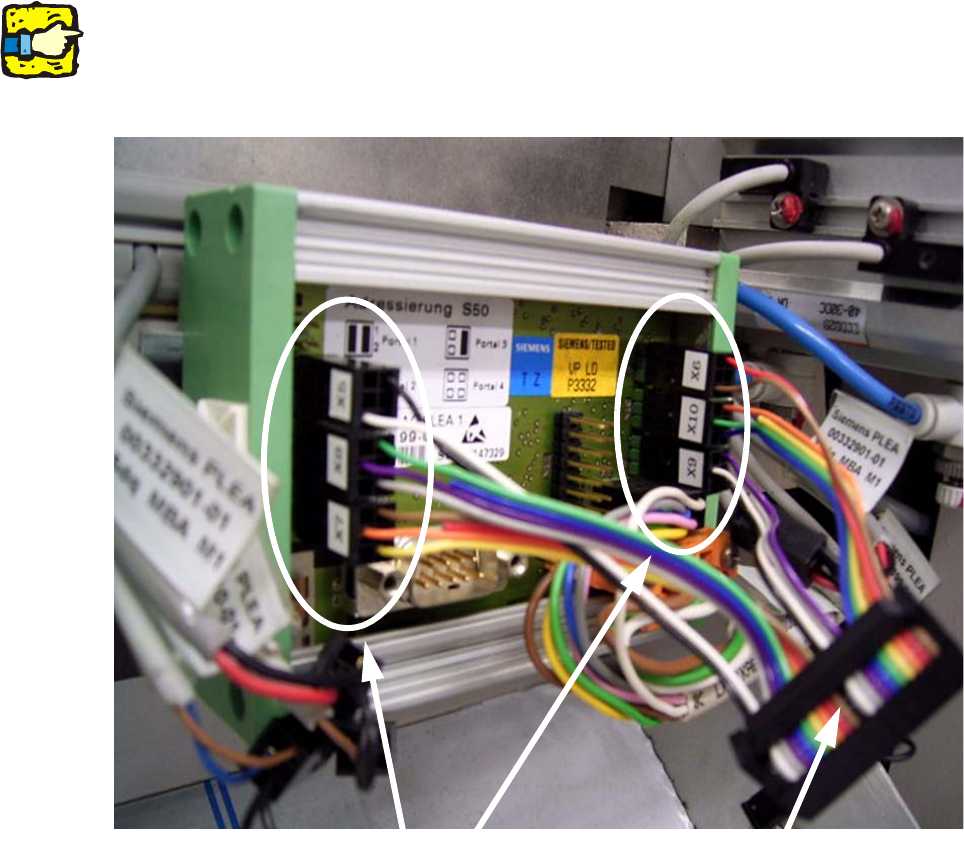

: Connect the added cable to the controller unit:
Each connector is marked with a number. This number must be the same as the number at the
controller unit.
2
Please be careful about the electronic valve connector direction. The connector can be connected
in reverse direction. 2
Verify each connector via number and connection configuration. 2
2
2
2
2
2
2
connectors for
control board
new tape cutter frequency controller
cable with connectors
2 Assembly Instructions Tape cutter frequency controller SIPLACE S / F / HS / C- / HF- / X- / D-series Controller
02/2008 Edition
20

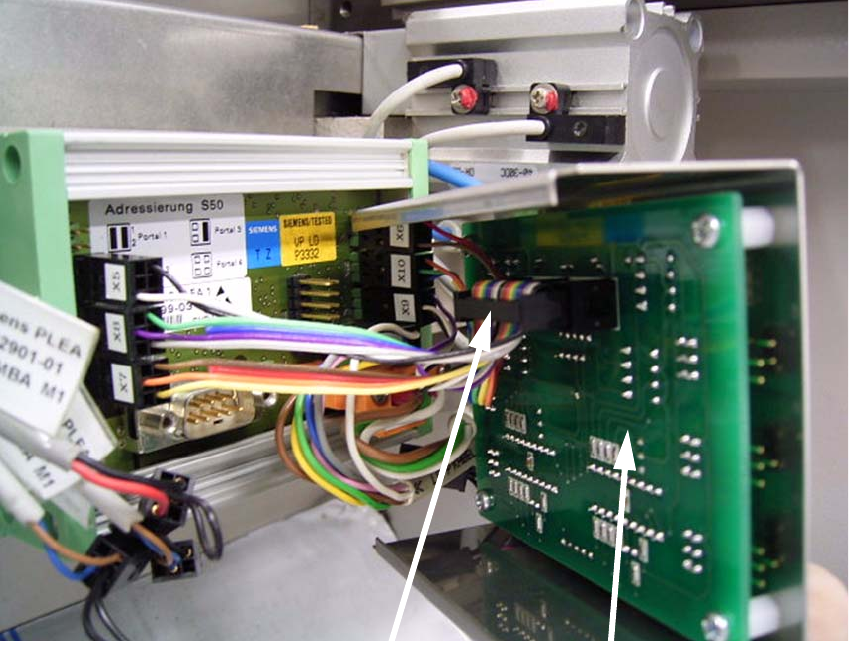

: Connect the adapter cable of the new tape cutter frequency controller with the new controller
unit.
2
2
2
2
2
2
2
2
2
2
2
2
new controller unit
connector
