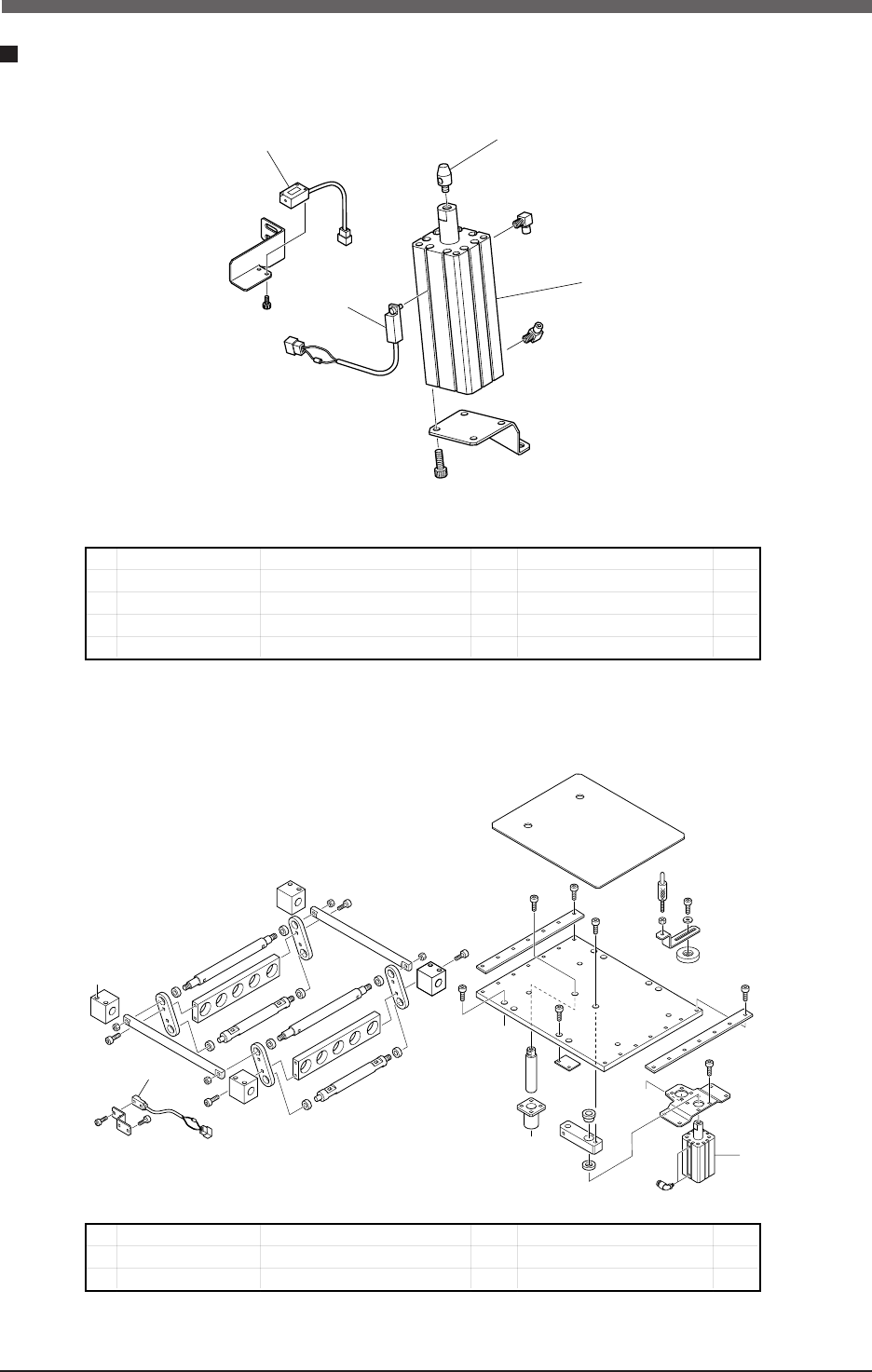

Maintenance Parts
DEC./2003
Conveyor
Main Stopper
4
3
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9162-01X CYLINDER 1 B
2 LC2-M9161-00X STOPPER 1 B
3 LC2-M653F-00X SENSOR, 3 ASSY 1 B
4 LC2-M653K-00X SENSOR, SET POSITION 1 B
Push Up
A
A
B
B
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653G-00X SENSOR ASSY 1 B
2 LC2-M9209-00X CYLINDER 1 B
8
Maintenance Parts
DEC./2003
ANC Station (Option)
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653N-00X SENSOR 10 ASSY 2 B
2 LC2-M9603-00X CYLINDER 1 BDAS10x5 B

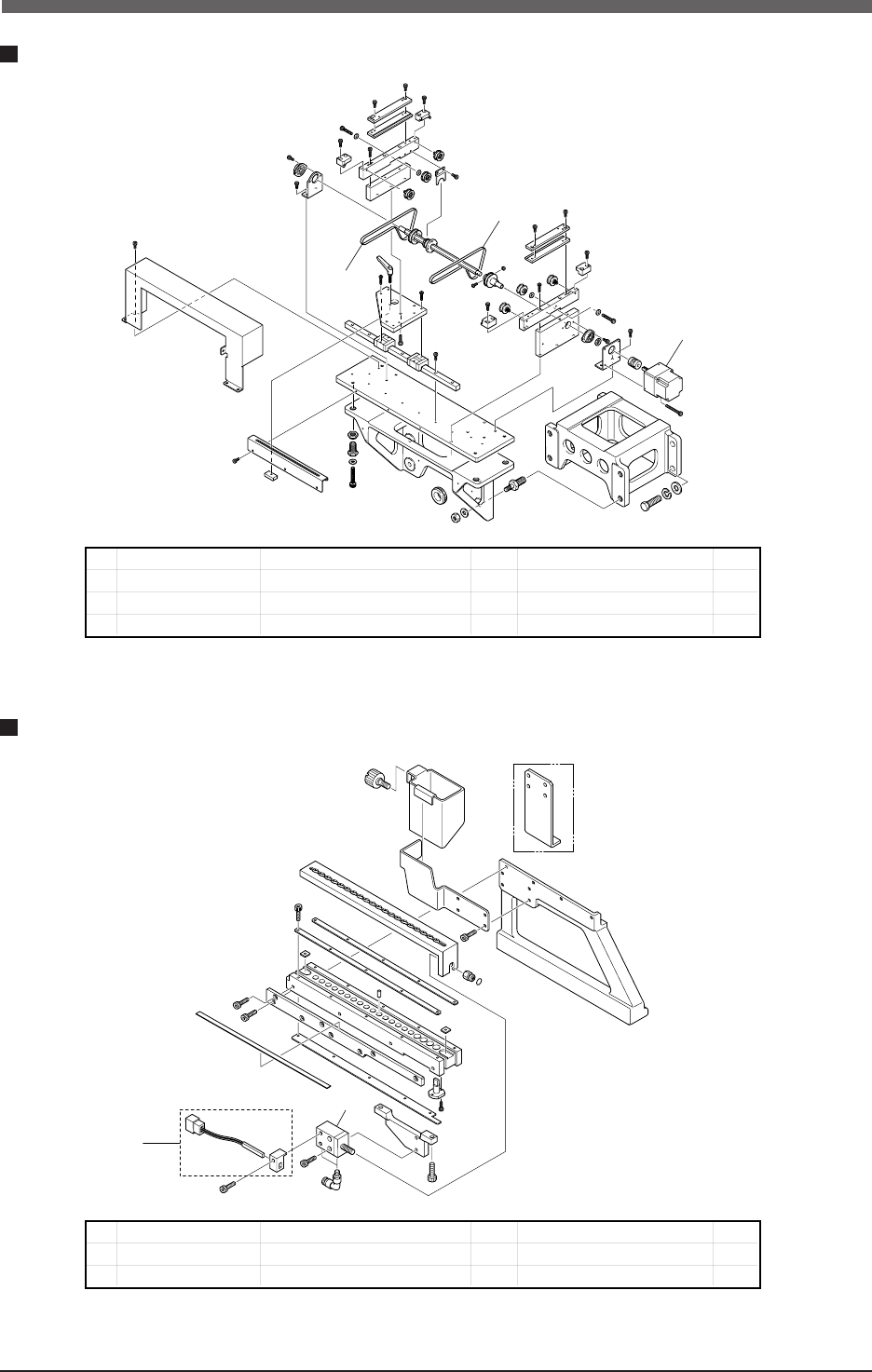

Conveyor
Extention Conveyor (Option)
1
2,3
2,3
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9130-00X DC MOTOR COMB. 1 B
2 LC2-M9545-00X BELT 2 L=200MM A
3 LC2-M9555-00X BELT 2 L=400MM A
9
Maintenance Parts
■

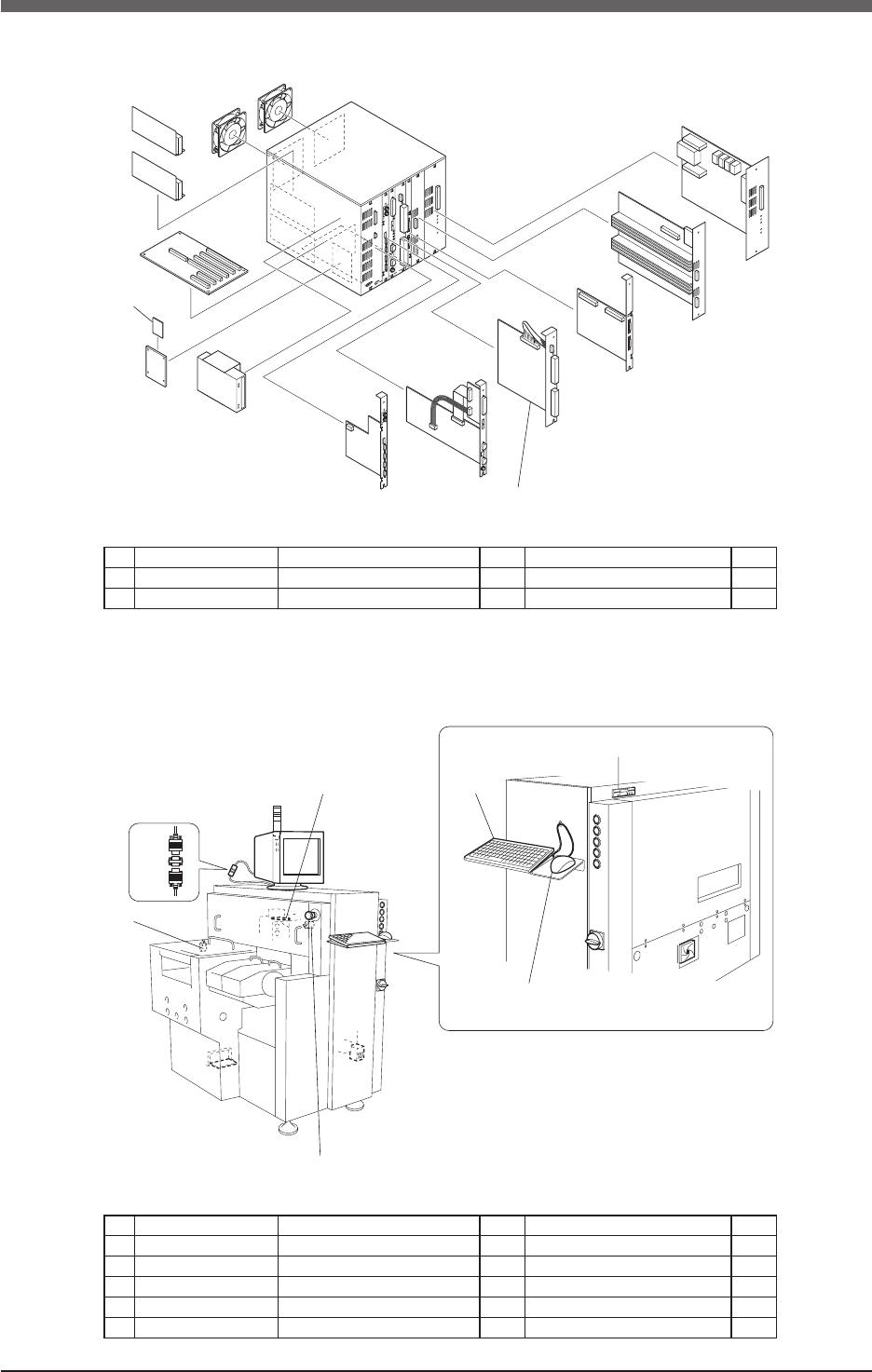

Control Box
■
Exterior, etc
2
1
5
5
1
3
2
4
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M6522-20X SPARE RELAY 1 A
2 KGN-M4255-20X FLASH DISK 1 B
No. Part No. Part Name Q'ty Remarks Rank
1 KGN-M4570-00X I/O BOARD HEAD ASSY 1 P21 B
2 KG7-M530H-02X FLOPPY DISK DRIVE 1 A14 B
3
KW3-M5150-50(60)X
KEY BOARD J (E) 1 A10 (J/E) C
4 KW3-M5169-04X MOUSE 1 A12 C
5 KH4-M668R-00X HNS , COVER SW 2 J198, J199 C
