MODEL TCM-X300S 0306-001 108 X ゲޔ Y ゲ X AXIS, Y AXIS Fig. JB-2 X ࠹ࡉ࡞ᬌㇱ X T able Detector 102 103 109 107 105 104 See Fig.JB-1 Key No.1 11 0 108 106 108 11 0 104 101 109 107 105 103 106
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
107
JB-1
1 630 107 7185 BASE 1 814JB-010-001
2 630 109 2843 BRACKET,LOCATE 1 814JB-010-002
3 630 064 5460 BRACKET 1 814JB-010-003
4 630 064 5569 HOLDER 1 814JB-010-004
6 630 066 1408 COVER 1 814JB-010-006
7 630 053 2104 COVER 1 814JB-010-007
8 630 064 4005 BRACKET,LOCATE 1 814JB-010-008
9 630 117 7304 MECH PARTS 1 814JB-010-009
10 630 119 7913 MECH PARTS 1 814JB-010-010
11 630 117 8110 COLLAR 1 814JB-010-011
12 630 120 6110 COLLAR 1 814JB-010-012
13 630 119 8217 BALL SCREW 1 814JB-010-013
14 630 083 7292 GUIDE,LINEAR 1 814JB-010-014
15 630 063 9278 COUPLING 1 814JB-010-015
16 630 086 3529 MOTOR,AC-SERVO 1 MSVM6(X),#SGMSH-30ACA-TV11
814JB-010-016
17 630 037 6647 BEARING,UNIT 1 WBK 20-11 814JB-010-017
18 630 000 7770 BOLT,HEX-SCT 38 814JB-010-018
19 630 000 7909 BOLT,HEX-SCT 8 814JB-010-019
20 630 000 7916 BOLT,HEX-SCT 2 814JB-010-020
21 630 000 8104 BOLT,HEX-SCT 1 814JB-010-021
22 630 000 8036 BOLT,HEX-SCT 4 814JB-010-022
23 630 000 8098 BOLT,HEX-SCT 1 814JB-010-023
24 630 000 8159 BOLT,HEX-SCT 4 814JB-010-024
25 630 000 8166 BOLT,HEX-SCT 10 814JB-010-025
26 630 000 8180 BOLT,HEX-SCT 2 814JB-010-026
28 411 141 3001 WASHER SPR 6 6 814JB-010-028
29 411 141 3100 WASHER SPR 8 4 814JB-010-029
30 411 141 3209 WASHER SPR 10 16 814JB-010-030
31 411 141 4305 WASHER V 6X12.5X1.6 6 814JB-010-031
32 411 141 4503 WASHER V 8X17X1.6 4 814JB-010-032
33 411 141 4701 WASHER V 10X21X2 6 814JB-010-033
34 630 001 0251 WASHER 10 814JB-010-034
36 630 110 3754 COVER 1 814JB-010-036
38 630 000 7602 BOLT,HEX-SCT 4 814JB-010-038
39 411 141 2905 WASHER SPR 4 4 814JB-010-039
40 411 141 4008 WASHER V 4X9X0.8 4 814JB-010-040
41 630 111 3906 BOLT,HEX-SCT(BUTTON HEAD) 6 814JB-010-041
42 411 141 3100 WASHER SPR 8 1 814JB-010-042
43 411 141 6101 WASHER F 8X15.5X1.6 1 814JB-010-043
44 411 141 3100 WASHER SPR 8 1 814JB-010-044
45 411 141 6101 WASHER F 8X15.5X1.6 1 814JB-010-045
MODEL TCM-X300S
0306-001
108
X ゲޔY ゲ X AXIS, Y AXIS

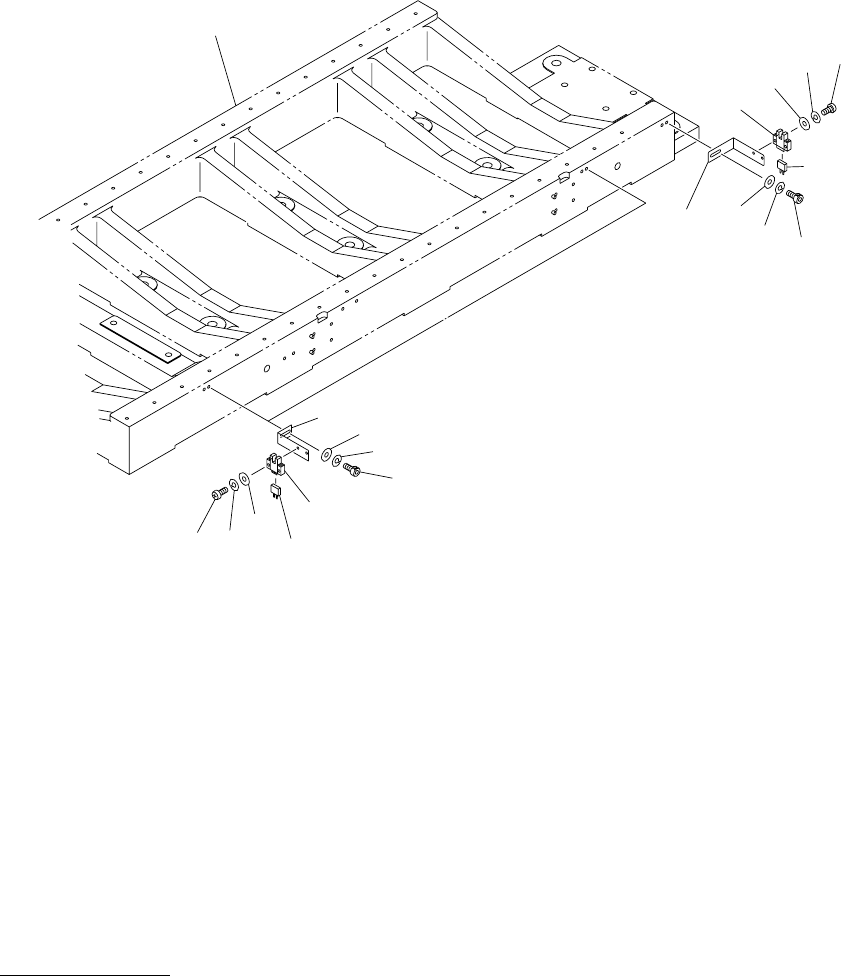

Fig. JB-2 X ࠹ࡉ࡞ᬌㇱ X Table Detector
102
103
109
107
105
104
See Fig.JB-1
Key No.1
110
108
106
108
110
104
101
109
107
105
103
106
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
109
JB-2
101 630 059 7981 BRACKET 2 814JB-010-101
102 630 097 2764 BRACKET 1 814JB-010-102
103 630 000 0245 SENSOR,PHOTO 3 BPH41,BPH42,BPH43,EE-SX670
814JB-010-103
104 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 EE-1001 814JB-010-104
105 630 000 7640 BOLT,HEX-SCT 6 814JB-010-105
106 411 040 7803 SCR PAN 3X12 6 814JB-010-106
107 411 141 2905 WASHER SPR 4 6 814JB-010-107
108 411 086 4408 WASHER SPR 3 6 814JB-010-108
109 411 141 4008 WASHER V 4X9X0.8 6 814JB-010-109
110 411 119 1909 WASHER V 3X7X0.5 6 814JB-010-110
