P-183-001 - 第139页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 137 JD-7 60 9 630 093 2560 HOLDER 2 814JD-010-609 61 1 630 076 3072 RI NG 2 814 JD-010 -61 1 612 630 076 3089 C OL LA R 2 814JD-010-612 613 630 0…
MODEL TCM-X300S
0306-001
136
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

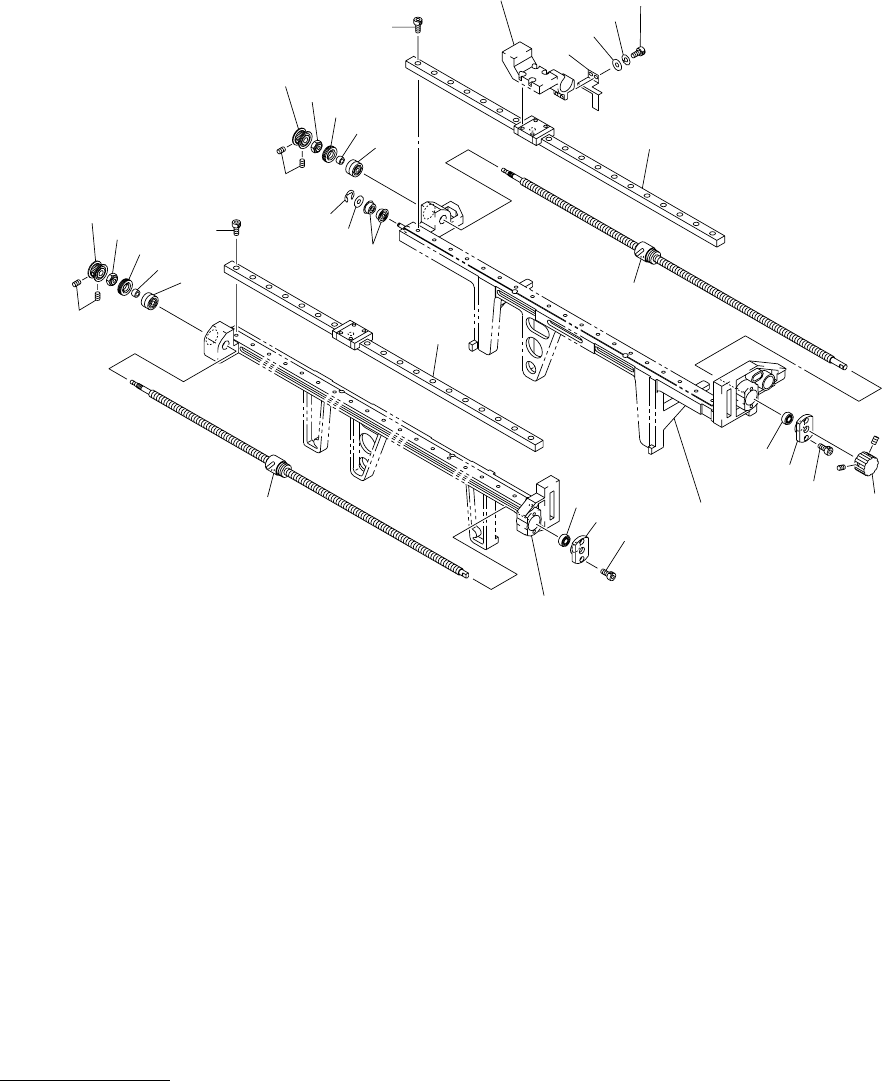

Fig. JD-7 XY ࠪࡘ࠻ᄌᦝㇱ XY Chute Width Changer
See Fig.JD-4
Key No.303
See Fig.JD-4
Key No.307
See Fig.JD-4
Key No.306
613
625
617
616
611
612
623
622
622
635
637
625
632
618
615
624
609
626
624
636
616
617
637
611
612
623
609
626
614
633
630
625
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JD-7
609 630 093 2560 HOLDER 2 814JD-010-609
611 630 076 3072 RING 2 814JD-010-611
612 630 076 3089 COLLAR 2 814JD-010-612
613 630 093 1792 PLATE 1 814JD-010-613
614 630 059 6779 GRIP 1 814JD-010-614
615 630 108 4992 BALL SCREW 1 814JD-010-615
616 630 059 6809 NUT 2 814JD-010-616
617 630 059 6755 PULLEY,TIMING 2 814JD-010-617
618 630 093 7008 BEARING,RADIAL 2 F624 2RS 814JD-010-618
622 630 108 4954 GUIDE,LINEAR 2 814JD-010-622
623 630 071 0359 BEARING,RADIAL 2 #HBX0900 814JD-010-623
624 630 007 1719 BEARING,RADIAL 2 L-1360ZZ 814JD-010-624
625 630 000 7503 BOLT,HEX-SCT 40 814JD-010-625
626 630 000 7510 BOLT,HEX-SCT 4 814JD-010-626
630 411 141 2806 WASHER SPR 3 2 814JD-010-630
632 411 141 5906 WASHER F 4X8X0.8 1 814JD-010-632
633 411 141 3902 WASHER V 3X7X0.5 2 814JD-010-633
635 411 001 0201 RING E 5 1 814JD-010-635
636 630 108 5043 BALL SCREW 1 814JD-010-636
637 630 094 3528 SET SCREW 4 814JD-010-637
MODEL TCM-X300S
0306-001
138

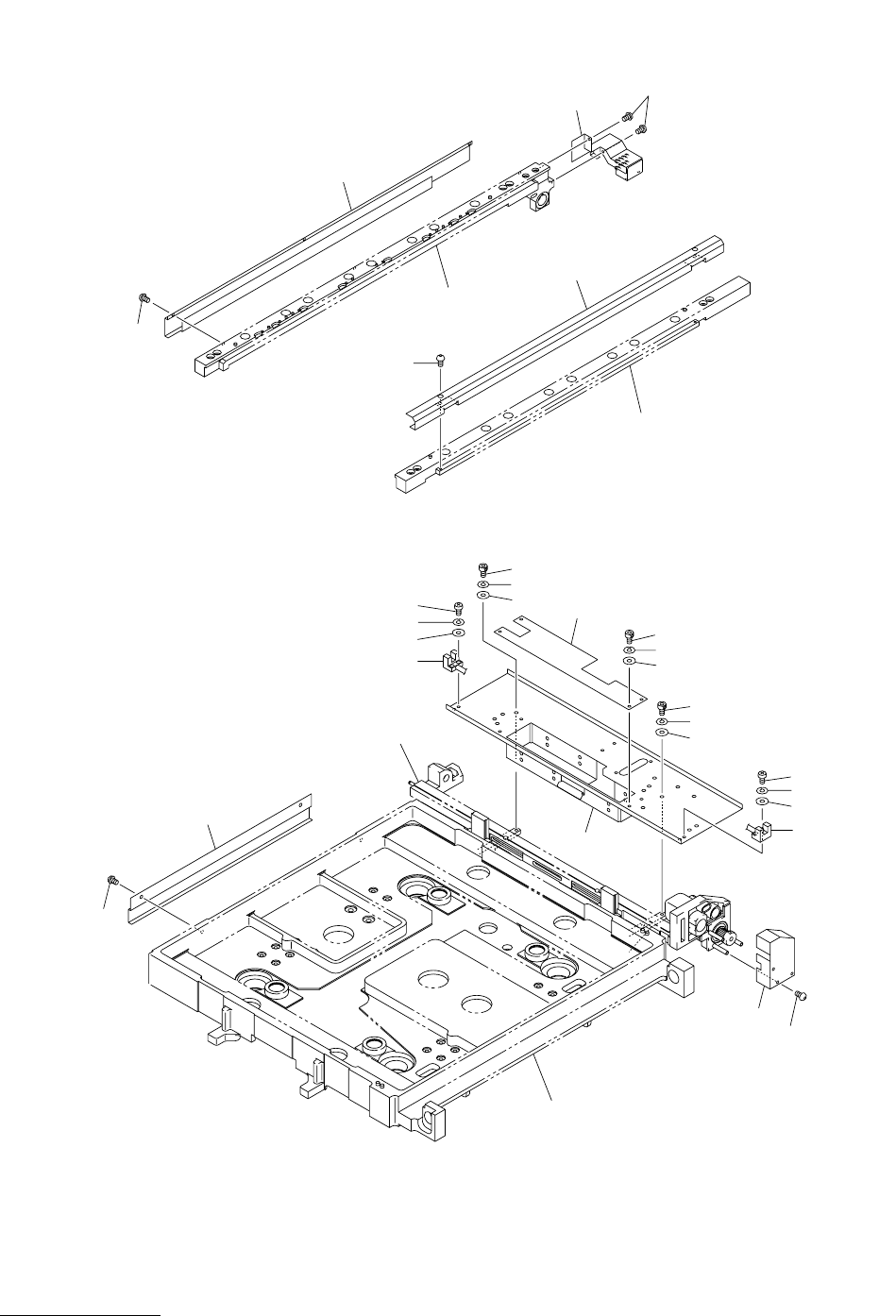

XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-1 XY ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JD-4
Key No.306
See Fig.JC-1
Key No.4
27
1
27
7
27
5
16
11
19
18
14
21
17
12
26
20
18
14
21
16
11
19
10
2
6
27
10
29
23
