MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 143 JE-3 20 1 630 109 0948 BR AC KET 1 814JE-010-201 20 2 630 1 10 7950 BRA CK ET 1 814JE-010-202 20 3 630 1 10 7967 BRA CK ET 1 814JE-010-203 20…
MODEL TCM-X300S
0306-001
142
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

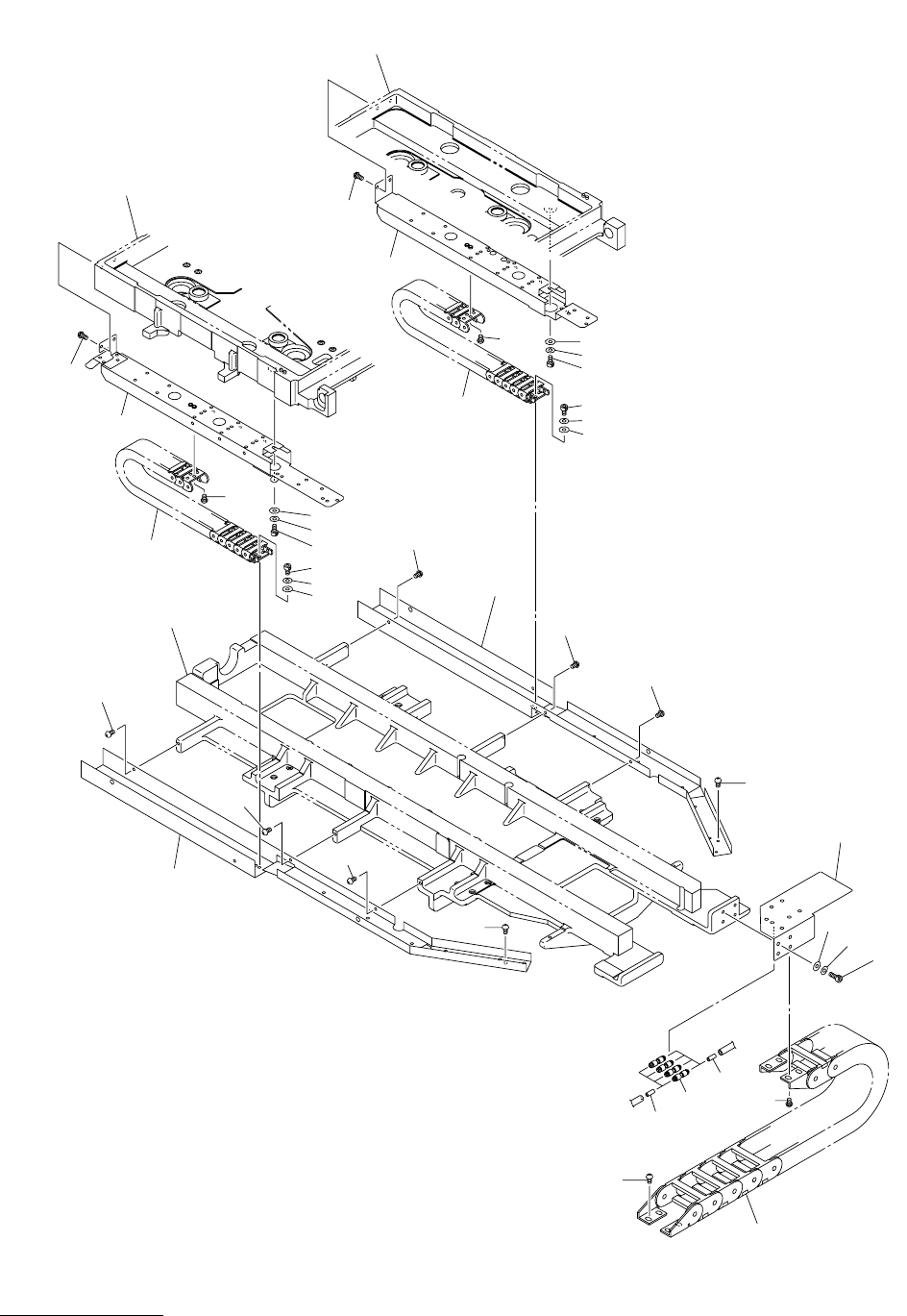

Fig. JE-3 ㈩▤ޔ㈩✢ᡰᜬㇱ Piping, Wiring Supporter
See Fig.JC-1
Key No.4
See Fig.JC-1
Key No.4
See Fig.JB-4
Key No.301
233
205
233
204
209
213
221
218
211
224
225
226
233
233
233
201
222
219
212
227
216
216
208
206
227
203
233
233
233
233
233
202
209
221
213
218
211
224
225
226
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
143
JE-3
201 630 109 0948 BRACKET 1 814JE-010-201
202 630 110 7950 BRACKET 1 814JE-010-202
203 630 110 7967 BRACKET 1 814JE-010-203
204 630 109 0955 PLATE 1 814JE-010-204
205 630 119 7500 PLATE 1 814JE-010-205
206 630 112 7224 MECH PARTS(GUIDE CABLE) 1 814JE-010-206
208 630 076 8916 PIPE FITTINGS 4 814JE-010-208
209 630 112 7231 MECH PARTS(GUIDE CABLE) 2 814JE-010-209
211 630 000 7626 BOLT,HEX-SCT 2 814JE-010-211
212 630 000 7763 BOLT,HEX-SCT 4 814JE-010-212
213 411 050 5004 SCR TRS 3X6 4 814JE-010-213
216 411 140 8007 SCR TRS 5X6 8 814JE-010-216
218 411 141 2905 WASHER SPR 4 2 814JE-010-218
219 411 141 6705 WASHER SPR 5 4 814JE-010-219
221 411 141 4008 WASHER V 4X9X0.8 2 814JE-010-221
222 411 141 4107 WASHER V 5X10X1 4 814JE-010-222
224 630 000 7503 BOLT,HEX-SCT 4 814JE-010-224
225 411 141 2806 WASHER SPR 3 4 814JE-010-225
226 411 141 3902 WASHER V 3X7X0.5 4 814JE-010-226
227 630 079 8432 AIR LINE EQPT 8 814JE-010-227
233 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 12 814JE-010-233
MODEL TCM-X300S
0306-001
144
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-4 Z ࠢࡦࡊ㈩▤ - 㧞 Z Clamp Piping-2
308
309
310
306
311
305
302
303
307
309
312
304
