MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 217 MB-1 1 630 120 3515 F R A M E 1 814MB-010-001 2 630 120 3522 F R A M E 1 814MB-010-002 6 630 120 0873 F R A M E 1 814MB-010-006 9 630 120 088…

100%1 / 306
MODEL TCM-X300S
0306-001
216
ࡈࠖ࡯࠳ࠠࡖ࡝࠶ࠫࠞࡃ࡯ㇱ FEEDER CARRIAGE COVER SECTION

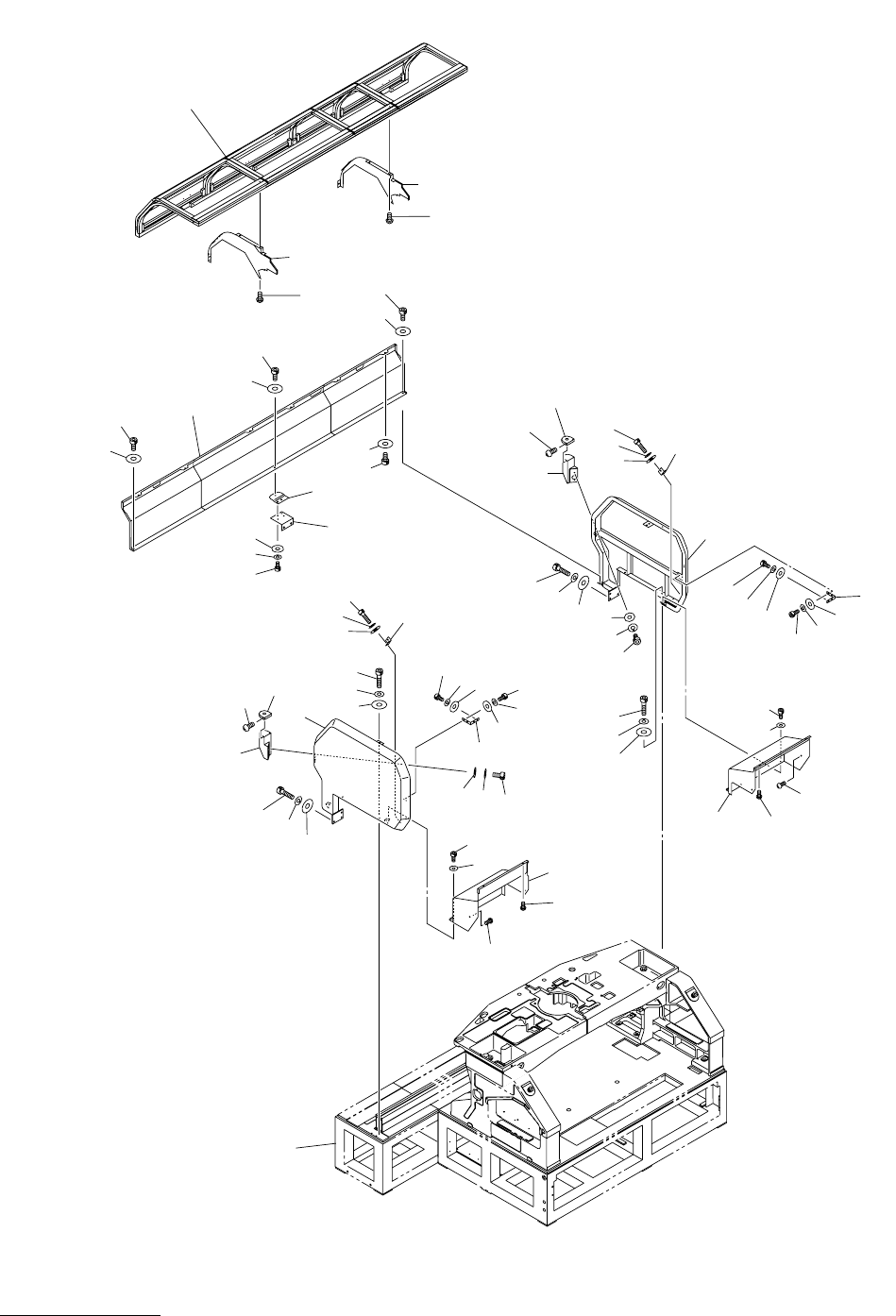

Fig. MB-1 ᓟ㕙ࠞࡃ࡯ Rear Cover
21
46
44
27
38
44
38
26
46
21
36
44
35
See Fig.L-1
Key No.9
44
See Fig.MB-7
Key No.601
See Fig.C-3
Key No.211
1
40
41
42
6
38
20
48
41
42
49
45
43
21
21
21
30
46
46
21
46
21
46
47
45
46
46
24
45
47
47
24
46
45
47
45
46
49
45
37
43
45
46
34
43
45
46
34
40
41
42
9
38
20
2
48
41
42
49
45
43
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
217
MB-1
1 630 120 3515 FRAME 1 814MB-010-001
2 630 120 3522 FRAME 1 814MB-010-002
6 630 120 0873 FRAME 1 814MB-010-006
9 630 120 0880 FRAME 1 814MB-010-009
20 630 102 5476 BRACKET(STOP) 2 814MB-010-020
21 630 000 8456 BOLT,HEX-SCT 12 814MB-010-021
24 630 097 3723 SUPPORT 2 814MB-010-024
26 630 120 1528 COVER 1 814MB-010-026
27 630 120 1535 COVER 1 814MB-010-027
30 630 120 9173 COVER 1 814MB-010-030
31 630 122 1465 BRACKET 1 814MB-010-031
34 630 119 4233 BRACKET 2 814MB-010-034
35 630 117 1920 PLATE(L) 1 814MB-010-035
36 630 117 1937 PLATE(R) 1 814MB-010-036
37 630 000 7749 BOLT,HEX-SCT 2 814MB-010-037
38 411 113 9000 SCR TRS 5X8 6 814MB-010-038
40 630 000 7893 BOLT,HEX-SCT 6 814MB-010-040
41 411 141 3001 WASHER SPR 6 10 814MB-010-041
42 630 001 0237 WASHER 10 814MB-010-042
43 630 000 7756 BOLT,HEX-SCT 8 814MB-010-043
44 411 113 9109 SCR TRS 5X10 12 814MB-010-044
45 411 141 6705 WASHER SPR 5 26 814MB-010-045
46 630 001 0220 WASHER 24 814MB-010-046
47 630 000 7763 BOLT,HEX-SCT 8 814MB-010-047
48 630 000 7909 BOLT,HEX-SCT 4 814MB-010-048
49 411 141 4107 WASHER V 5X10X1 6 814MB-010-049
MODEL TCM-X300S
0306-001
218
ࡈࠖ࡯࠳ࠠࡖ࡝࠶ࠫࠞࡃ࡯ㇱ FEEDER CARRIAGE COVER SECTION

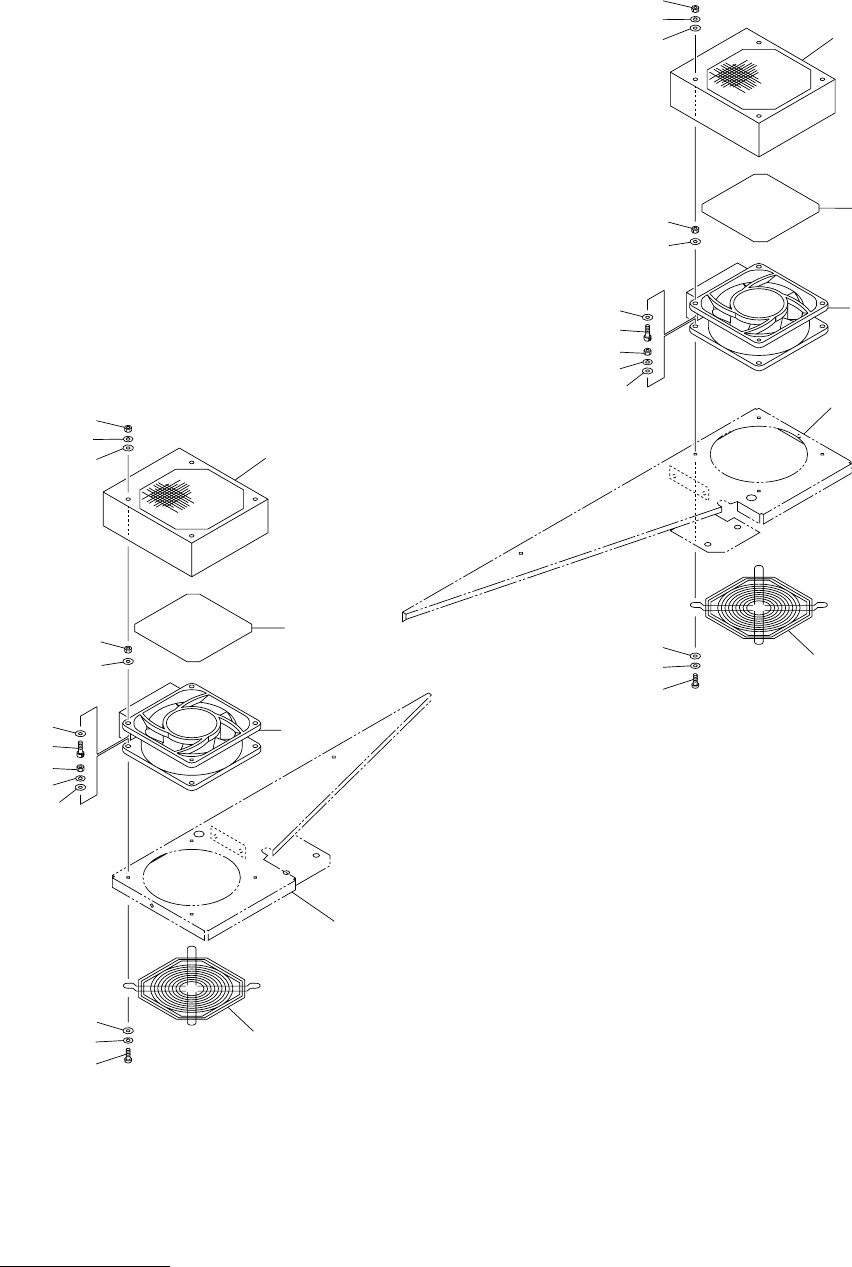

Fig. MB-2 F ゲ಄ළࡈࠔࡦ F Axis Cooling Fan
See Fig.MB-3
Key No.221
107
110
138
108
130
133
132
135
137
136
134
132
132
131
134
133
132
108
130
133
132
107
See Fig.MB-3
Key No.222
132
131
134
133
132
134
132
110
138
135
137
136
