P-183-001 - 第233页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 231 MC-3 20 1 630 1 19 1638 MEC H P AR TS (F R AME) 1 20 2 630 1 19 1645 MEC H P AR TS (F R AME) 1 21 1 630 1 19 1652 ME CH P A R TS (F R AME) 2 …
MODEL TCM-X300S
0306-001
230
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover

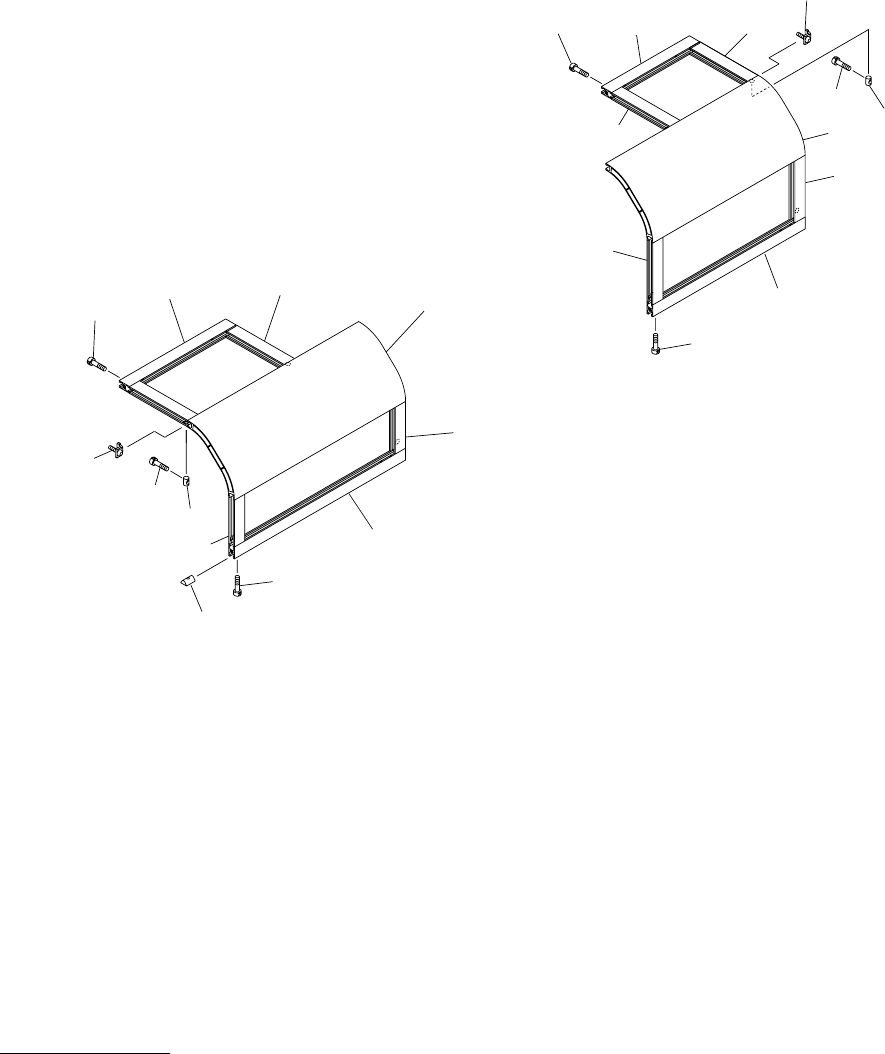

Fig. MC-3 ೨ࠞࡃࡈࡓ Front Side Cover Frame
291
279
275
291
279
234
275
281
284
202
211
222
233
242
284
284
221
231
241
284
232
212
201
211
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
231
MC-3
201 630 119 1638 MECH PARTS(FRAME) 1
202 630 119 1645 MECH PARTS(FRAME) 1
211 630 119 1652 MECH PARTS(FRAME) 2
212 630 119 1669 MECH PARTS(FRAME) 2
221 630 119 1676 MECH PARTS(FRAME) 1
222 630 119 1683 MECH PARTS(FRAME) 1
231 630 119 1690 MECH PARTS(FRAME) 1
232 630 119 1737 MECH PARTS(FRAME) 1
233 630 119 1744 MECH PARTS(FRAME) 1
234 630 119 1751 MECH PARTS(FRAME) 1
241 630 119 1768 MECH PARTS(FRAME) 1
242 630 119 1775 MECH PARTS(FRAME) 1
275 630 098 1988 MECH PARTS(NUT) 8
279 630 098 2008 MECH PARTS(NUT) 8
281 630 103 4256 NUT 6
284 630 000 7794 BOLT,HEX-SCT 8
291 630 000 7909 BOLT,HEX-SCT 8
MODEL TCM-X300S
0306-001
232
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover

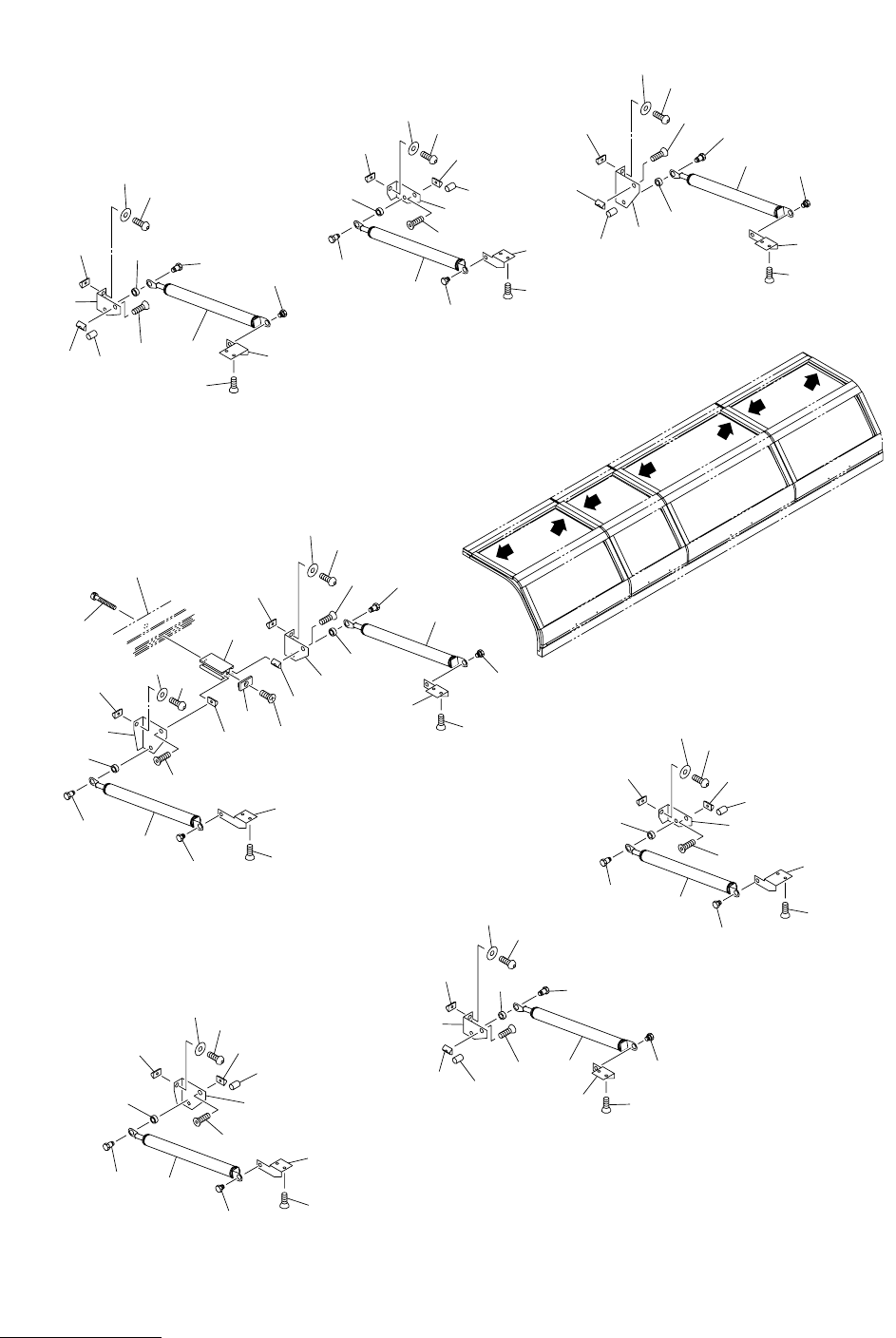

Fig. MC-4 ࠟࠬ࠳ࡦࡄ Gas Spring
DETAIL "J"
326
394
304
324
392
302
303
301
305
381
396
399
381
DETAIL "H"
329
325
305
302
301
304
303
396
394
381
392
399
381
DETAIL "M"
329
303
394
394
396
396
399
399
301
304
392
302
381
See Fig.MC-2
Key No.104
381
381
331
381
336
302
393
366
339
390
303
392
304
330
301
DETAIL "E"
302
303
304
330
392
396
381
381
394
399
301
305
326
DETAIL "D"
303
302
305
301
304
323
392
381
381
399
396
394
325
DETAIL "F"
329
303
394
396
399
301
304
392
302
381
381
335
305
302
303
301
305
304
330
392
381
332
394
396
399
381
DETAIL "G"
D
E
F
G
H
M
J
