MODEL TCM-X300S 0306-001 238 ৻ᰴ㔚Ḯㇱ MAIN POWER SUPPL Y SECTION Fig. RA-1 ৻ᰴ㔚Ḯ Main Power Supply 64 60 83 69 88 99 98 97 86 85 93 54 92 91 90 92 91 90 92 66 65 51 92 91 89 53 62 61 55 65 63 . 68 . 91 90 52 98 99 97 56 56 5…
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
237
MC-6
501 630 119 1782 COVER 1
502 630 119 1799 COVER 1
503 630 119 1805 COVER 1
504 630 119 1812 COVER 1
MODEL TCM-X300S
0306-001
238

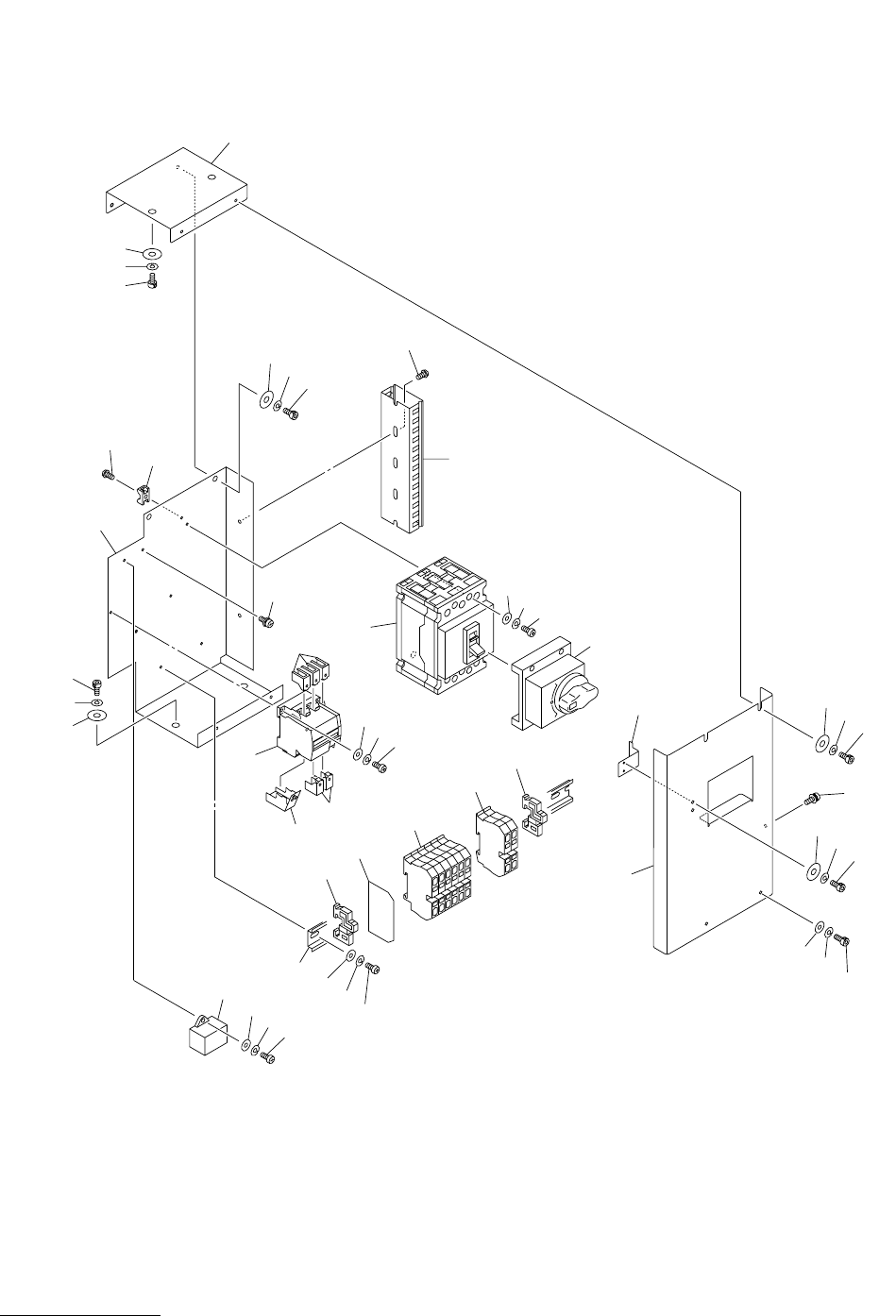

৻ᰴ㔚Ḯㇱ MAIN POWER SUPPLY SECTION
Fig. RA-1 ৻ᰴ㔚Ḯ Main Power Supply
64
60
83
69
88
99
98
97
86
85
93
54
92
91
90
92
91
90
92
66
65
51
92
91
89
53
62
61
55
65
63
.
68
.
91
90
52
98
99
97
56
56
57
84
59
58
93
67
88
86
85
96
95
94
87
86
85
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
239
RA-1
51 630 086 3857 BREAKER 1 Q200 814RA-010-051
52 630 094 1500 CIRCUIT PROTECTOR 1 Q204 814RA-010-052
53 630 083 5441 HANDLE 1 814RA-010-053
54 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 814RA-010-054
55 630 092 2875 TERMINAL 2 814RA-010-055
56 630 071 3343 COVER 5 814RA-010-056
57 630 071 3350 COVER 1 814RA-010-057
58 630 115 5760 COVER 1 814RA-010-058
59 630 115 4480 BRACKET 1 814RA-010-059
60 630 115 5777 PANEL 1 814RA-010-060
61 630 092 2844 TERMINAL 6 814RA-010-061
62 630 092 2851 ACCESSORY,WIRING 1 814RA-010-062
63 630 092 2868 ACCESSORY,WIRING 3 814RA-010-063
64 630 089 5377 ACCESSORY,WIRING 1 814RA-010-064
65 630 091 1749 BRACKET,WIRING 2 814RA-010-065
66 630 093 0764 RAIL,WIRING 1 814RA-010-066
67 630 115 5883 BRACKET 1 814RA-010-067
68 630 051 1512 ACCESSORY,WIRING 1 814RA-010-068
69 630 048 3833 MECH PARTS(MOUNTING BASES 1 814RA-010-069
83 411 113 7501 SCR TRS 4X10 1 814RA-010-083
84 411 140 8007 SCR TRS 5X6 2 814RA-010-084
85 630 000 7626 BOLT,HEX-SCT 6 814RA-010-085
86 411 141 2905 WASHER SPR 4 6 814RA-010-086
87 411 141 4008 WASHER V 4X9X0.8 2 814RA-010-087
88 630 001 0213 WASHER 4 814RA-010-088
89 411 042 3001 SCR PAN 4X10 2 814RA-010-089
90 411 043 5004 SCR PAN 4X8 5 814RA-010-090
91 411 008 1706 WASHER SPR 4 7 814RA-010-091
92 411 119 2104 WASHER V 4X9X0.8 7 814RA-010-092
93 411 174 6604 SCR PAN+SW+W 5X10 2 814RA-010-093
94 630 000 7510 BOLT,HEX-SCT 2 814RA-010-094
95 411 141 2806 WASHER SPR 3 2 814RA-010-095
96 630 001 0206 WASHER 2 814RA-010-096
97 630 000 7756 BOLT,HEX-SCT 4 814RA-010-097
98 411 141 6705 WASHER SPR 5 4 814RA-010-098
99 630 001 0220 WASHER 4 814RA-010-099
