MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 247 RC-4 35 1 630 120 6998 BR AC K ET 1 814RC-010-351 35 2 630 1 16 8814 FIL TER , N OI S E 1 ZN F 3 814RC-010-352 35 3 630 1 16 3123 UNIT ,D RIV…
MODEL TCM-X300S
0306-001
246
200V 㔚Ḯㇱ㧝 200V POWER SUPPLY SECTION 1
Fig. RC-4 200V 㔚Ḯ㧠 200V Power Supply 4
394
396
352
395
399
398
397
351
393
392
391
394
395
396
353
354
390
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
247
RC-4
351 630 120 6998 BRACKET 1 814RC-010-351
352 630 116 8814 FILTER,NOISE 1 ZNF3 814RC-010-352
353 630 116 3123 UNIT,DRIVER 1 FVR0.75C11S-2 814RC-010-353
354 630 120 7001 COVER 1 814RC-010-354
390 411 051 1708 SCR TRS 4X6 6 814RC-010-390
391 630 000 7619 BOLT,HEX-SCT 2 814RC-010-391
392 411 141 2905 WASHER SPR 4 2 814RC-010-392
393 630 001 0213 WASHER 2 814RC-010-393
394 411 113 1400 SCR PAN 4X6 8 814RC-010-394
395 411 008 1706 WASHER SPR 4 8 814RC-010-395
396 411 119 2104 WASHER V 4X9X0.8 8 814RC-010-396
397 630 000 7756 BOLT,HEX-SCT 3 814RC-010-397
398 411 141 6705 WASHER SPR 5 3 814RC-010-398
399 630 001 0220 WASHER 3 814RC-010-399
MODEL TCM-X300S
0306-001
248

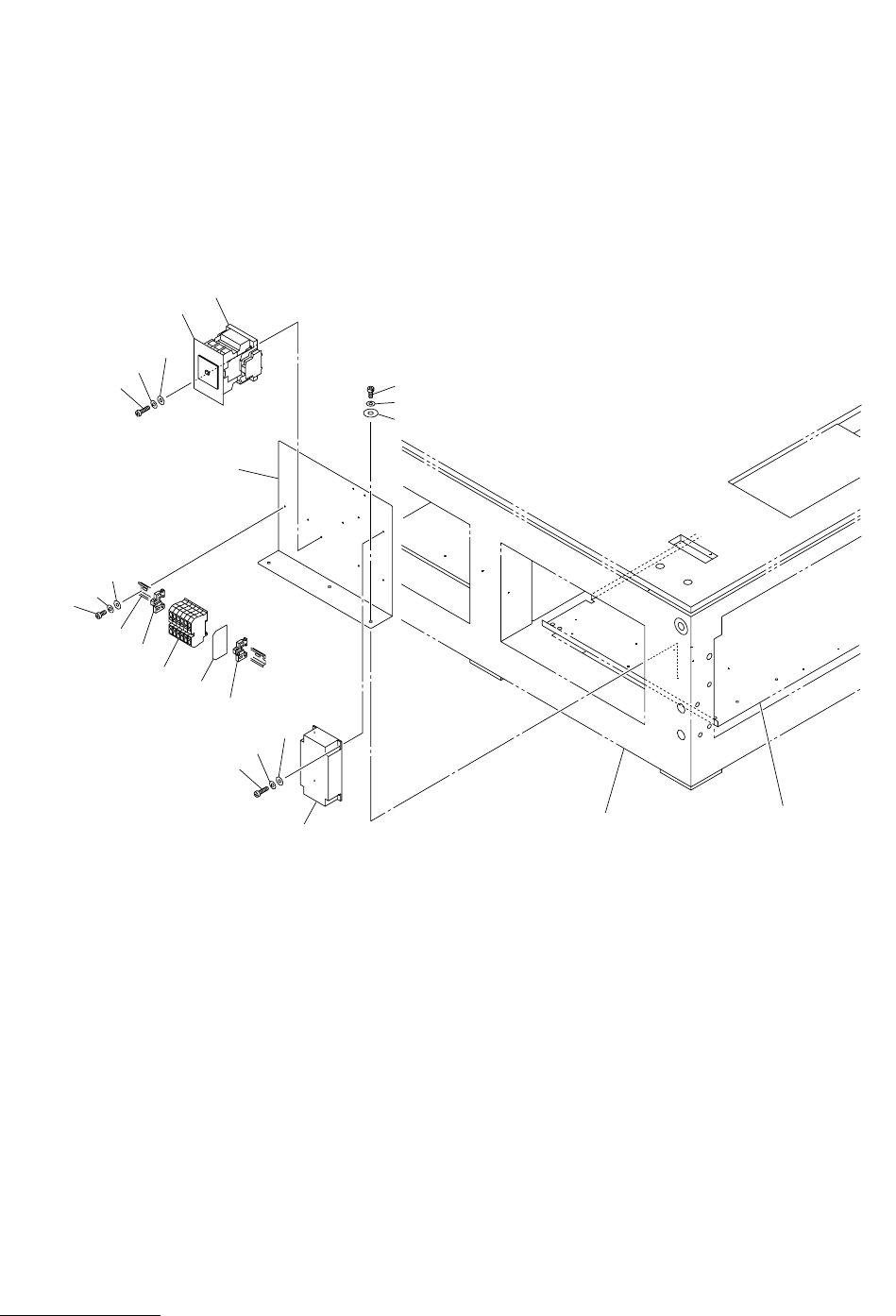

200V 㔚Ḯㇱ㧞 200V POWER SUPPLY SECTION 2
Fig. RD-1 200V 㔚Ḯ㧡 200V Power Supply 5
See Fig.RL-2
Key No.156
51
99
See Fig.L-1
Key No.9
98
97
94
96
95
96
60
59
56
58
.
59
95
94
57
55
93
53
54
96
95
52
.
