MODEL TCM-X300S 0306-001 250 100V 㔚Ḯㇱ 100V POWER SUPPL Y SECTION F i g . R E - 1 100V 㔚Ḯ㧝 100V Power Supply 1 70 95 98 97 99 65 96 98 99 64 54 54 53 66 55 66 56 66 51 64 52 63 67 66 66 59 66 67 69 68 58 57 . 62 60 . 61 6…
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
249
RD-1
51 630 115 3230 PANEL 1 814RD-010-051
52 630 114 7697 EM-CONTACTOR 1 KM1 814RD-010-052
53 630 114 7765 COVER 1 814RD-010-053
54 630 100 1357 COMP,CR 1 814RD-010-054
55 630 116 8821 FILTER,NOISE 1 ZNF1 814RD-010-055
56 630 092 2844 TERMINAL 6 814RD-010-056
57 630 092 2851 ACCESSORY,WIRING 1 814RD-010-057
58 630 092 2868 ACCESSORY,WIRING 3 814RD-010-058
59 630 091 1749 BRACKET,WIRING 2 814RD-010-059
60 630 089 6480 RAIL,WIRING 1 814RD-010-060
93 411 162 1505 SCR PAN 4X20 2 814RD-010-093
94 411 042 3001 SCR PAN 4X10 6 814RD-010-094
95 411 008 1706 WASHER SPR 4 8 814RD-010-095
96 411 119 2104 WASHER V 4X9X0.8 8 814RD-010-096
97 630 000 7633 BOLT,HEX-SCT 3 814RD-010-097
98 411 141 2905 WASHER SPR 4 3 814RD-010-098
99 630 001 0213 WASHER 3 814RD-010-099
MODEL TCM-X300S
0306-001
250
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

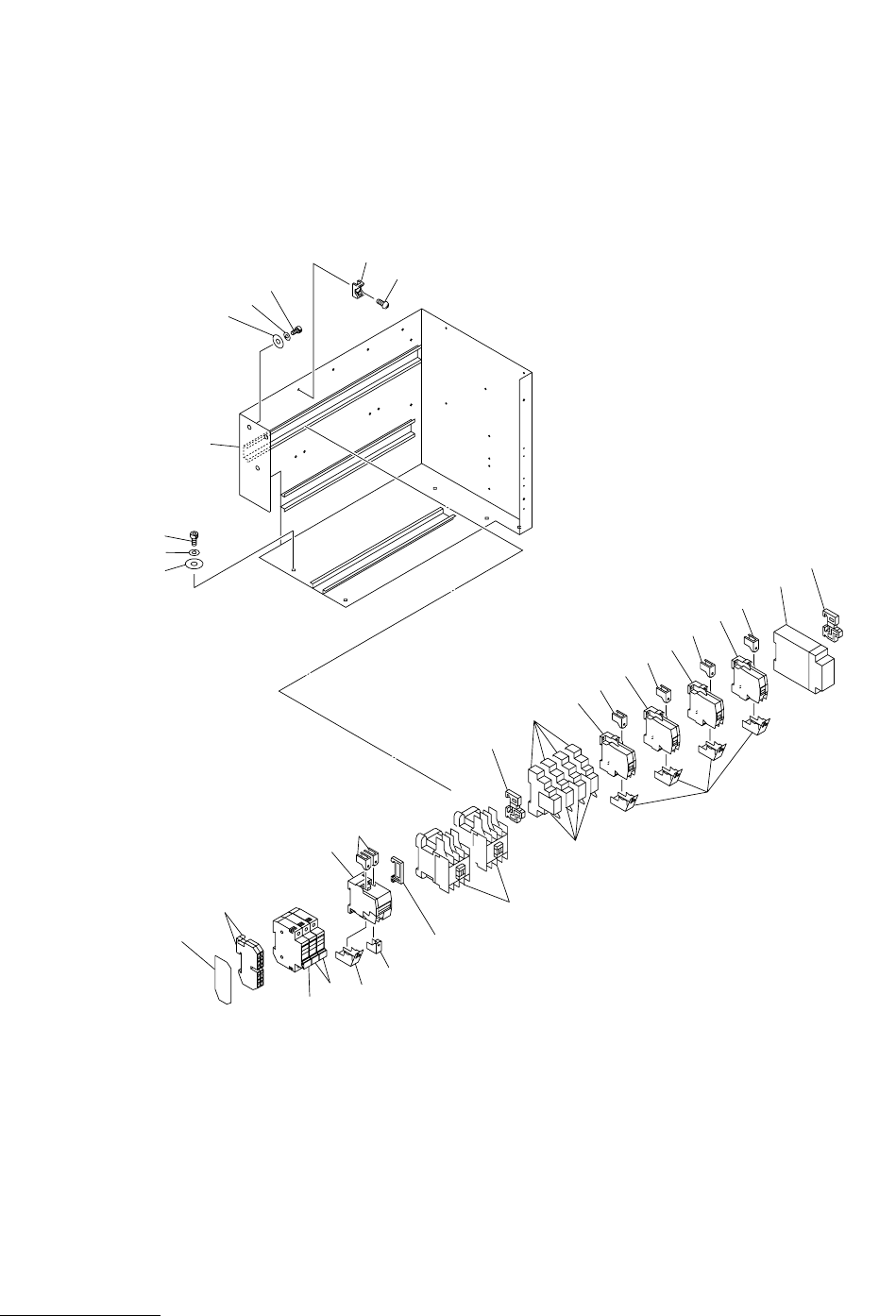

Fig. RE-1 100V 㔚Ḯ㧝 100V Power Supply 1
70
95
98
97
99
65
96
98
99
64
54
54
53
66
55
66
56
66
51
64
52
63
67
66
66
59
66
67
69
68
58
57
.
62
60
.
61
60
.
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
RE-1
51 630 116 8760 RELAY 1 K10 814RE-010-051
52 630 116 9569 RELAY 4 K29,K41,K60,K61 814RE-010-052
53 630 049 2064 SOCKET 4 814RE-010-053
54 630 099 1765 CIRCUIT PROTECTOR 2 Q110,Q111 814RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 814RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 814RE-010-056
57 630 053 8588 EM-CONTACTOR 2 KM3,KM4 814RE-010-057
58 630 100 1357 COMP,CR 2 814RE-010-058
59 630 116 8838 CIRCUIT PROTECTOR 1 Q205 814RE-010-059
60 630 109 1488 FUSE HOLDER 3 814RE-010-060
61 424 005 9408 FUSE 600V 20A 1 F120 814RE-010-061
62 424 005 9408 FUSE 600V 20A 2 F201,F203 814RE-010-062
63 630 000 1273 ACCESSORY,WIRING 1 814RE-010-063
64 630 091 1749 BRACKET,WIRING 2 814RE-010-064
65 630 119 5148 PANEL 1 814RE-010-065
66 630 071 3343 COVER 7 814RE-010-066
67 630 071 3350 COVER 5 814RE-010-067
68 630 083 5465 TERMINAL 2 814RE-010-068
69 630 083 5533 ACCESSORY,WIRING 1 814RE-010-069
70 630 048 3833 MECH PARTS(MOUNTING BASES 6 814RE-010-070
95 411 113 7501 SCR TRS 4X10 6 814RE-010-095
96 630 000 7602 BOLT,HEX-SCT 2 814RE-010-096
97 630 000 7633 BOLT,HEX-SCT 4 814RE-010-097
98 411 141 2905 WASHER SPR 4 6 814RE-010-098
99 630 001 0213 WASHER 6 814RE-010-099
