MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 253 RE-2 15 1 630 083 5496 FUSE HOLDER 1 0 8 14R E-0 10-1 51 15 2 630 059 6632 AC C ESSORY ,WIRING 1 8 1 4 R E - 0 1 0 - 1 5 2 15 3 630 051 1512 …
MODEL TCM-X300S
0306-001
252
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

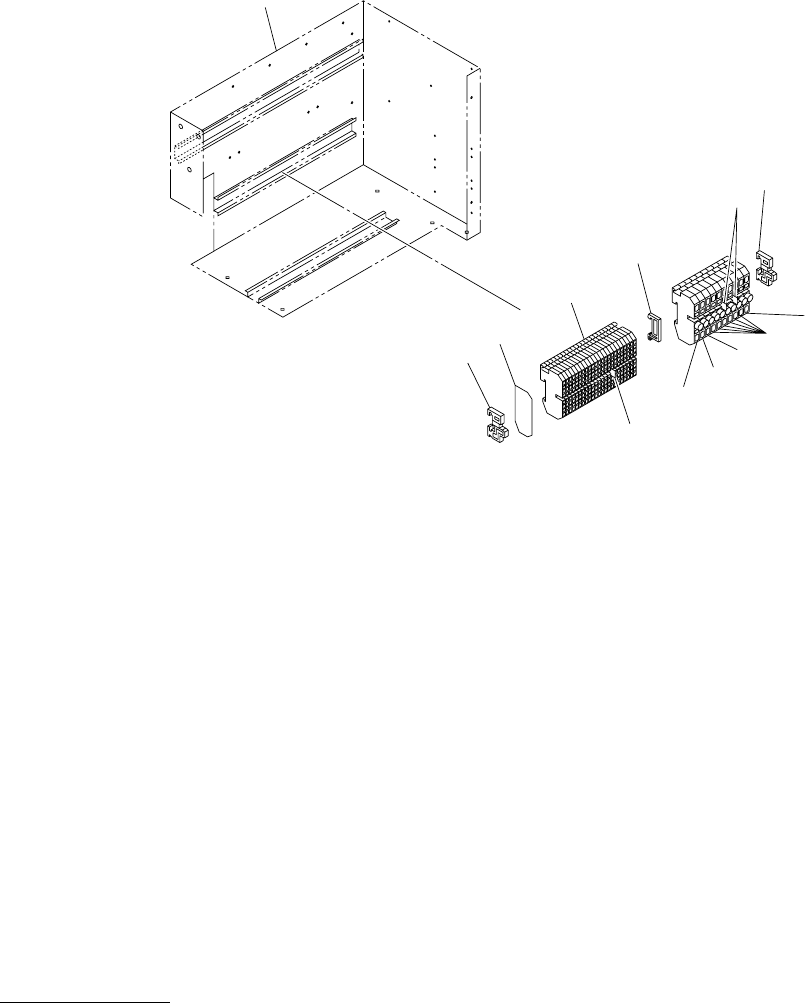

Fig. RE-2 100V 㔚Ḯ㧞 100V Power Supply 2
158
155
166
154
163
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
167
See Fig.RE-1
Key No.65
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
253
RE-2
151 630 083 5496 FUSE HOLDER 10 814RE-010-151
152 630 059 6632 ACCESSORY,WIRING 1 814RE-010-152
153 630 051 1512 ACCESSORY,WIRING 1 814RE-010-153
154 630 083 5465 TERMINAL 23 814RE-010-154
155 630 083 5533 ACCESSORY,WIRING 1 814RE-010-155
156 630 072 8408 ACCESSORY,WIRING 1 814RE-010-156
157 630 058 8460 ACCESSORY,WIRING 3 814RE-010-157
158 630 091 1749 BRACKET,WIRING 2 814RE-010-158
159 423 022 8005 FUSE 250V 1A 1 F105 814RE-010-159
160 423 022 8104 FUSE 250V 2A 1 F100 814RE-010-160
161 423 025 2109 FUSE 250V 6.3A 6 F106,F107,F108,F104,F110,F111
814RE-010-161
162 423 022 8500 FUSE 250V 10A 1 F101 814RE-010-162
163 630 000 1273 ACCESSORY,WIRING 2 814RE-010-163
166 630 083 5564 ACCESSORY,WIRING 1 814RE-010-166
167 630 058 8415 ACCESSORY,WIRING 3 814RE-010-167
MODEL TCM-X300S
0306-001
254
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION
Fig. RE-3 100V 㔚Ḯ㧟 100V Power Supply 3
See Fig.RE-1
Key No.65
296
297
298
299
251
252
257
260
259
257
253
255
.
258
.
254
257
261
