P-183-001 - 第287页
MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 285 RM-3 25 1 630 083 5465 TE R MI N AL 8 814RM-010-251 25 2 630 083 5489 TE R MI N AL 4 814RM-010-252 25 3 630 083 5533 AC C ESSORY ,WIRING 1 8 …
MODEL TCM-X300S
0306-001
284
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

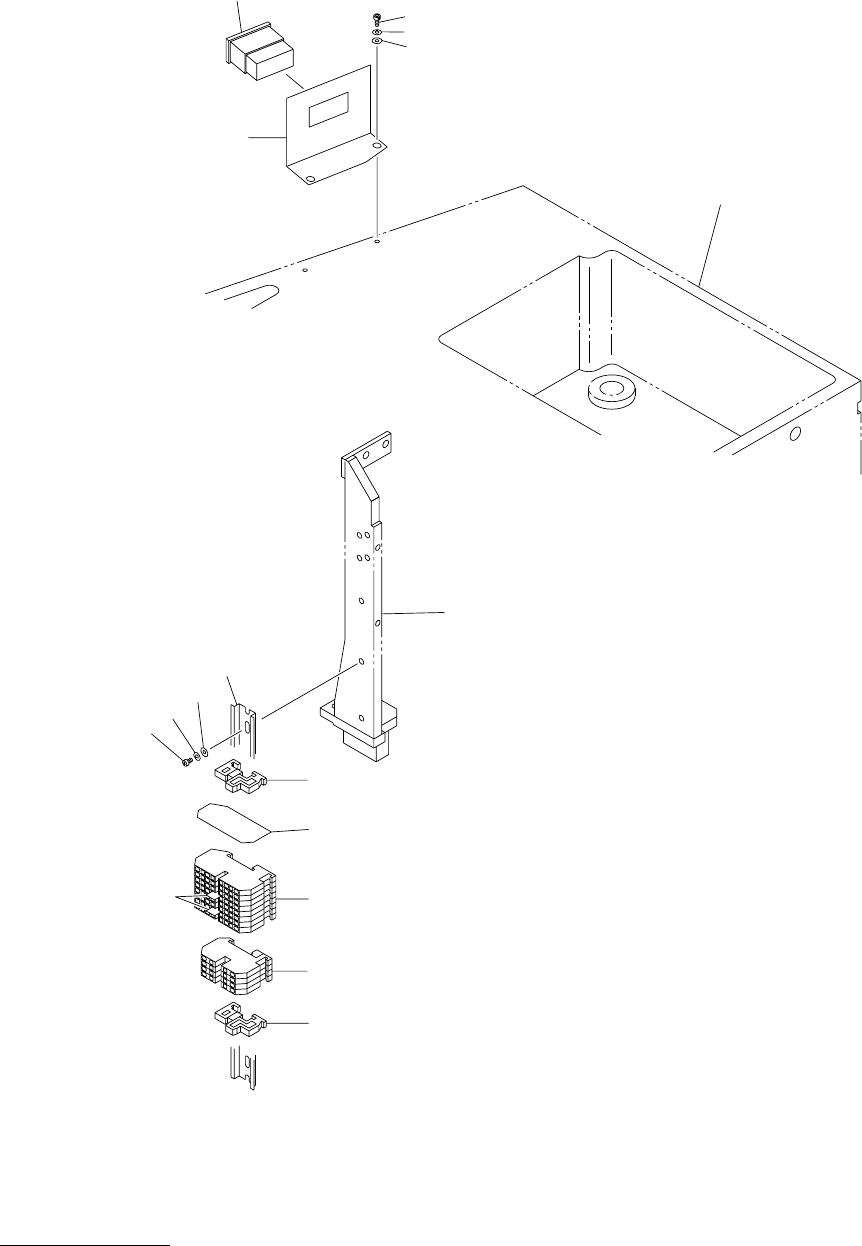

Fig. RM-3
ࠨࠗࠢ࡞ࠞ࠙ࡦ࠲ޔ࠲ࡒ࠽࡞
Cycle Counter, Terminals
256
299
298
297
254
294
295
296
See Fig.L-1
Key No.12
See Fig.MA-2
Key No.131
260
259
251
.
255
.
257
258
252
254
253
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
285
RM-3
251 630 083 5465 TERMINAL 8 814RM-010-251
252 630 083 5489 TERMINAL 4 814RM-010-252
253 630 083 5533 ACCESSORY,WIRING 1 814RM-010-253
254 630 091 1749 BRACKET,WIRING 2 814RM-010-254
255 630 058 8460 ACCESSORY,WIRING 1 814RM-010-255
256 630 093 0764 RAIL,WIRING 1 814RM-010-256
257 630 072 8408 ACCESSORY,WIRING 1 814RM-010-257
258 630 083 5564 ACCESSORY,WIRING 2 814RM-010-258
259 630 120 3911 COUNTER 1 814RM-010-259
260 630 110 7110 BRACKET 1 814RM-010-260
294 630 000 7732 BOLT,HEX-SCT 2 814RM-010-294
295 411 141 6705 WASHER SPR 5 2 814RM-010-295
296 630 001 0220 WASHER 2 814RM-010-296
297 411 042 3001 SCR PAN 4X10 2 814RM-010-297
298 411 008 1706 WASHER SPR 4 2 814RM-010-298
299 411 119 2104 WASHER V 4X9X0.8 2 814RM-010-299
MODEL TCM-X300S
0306-001
286
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

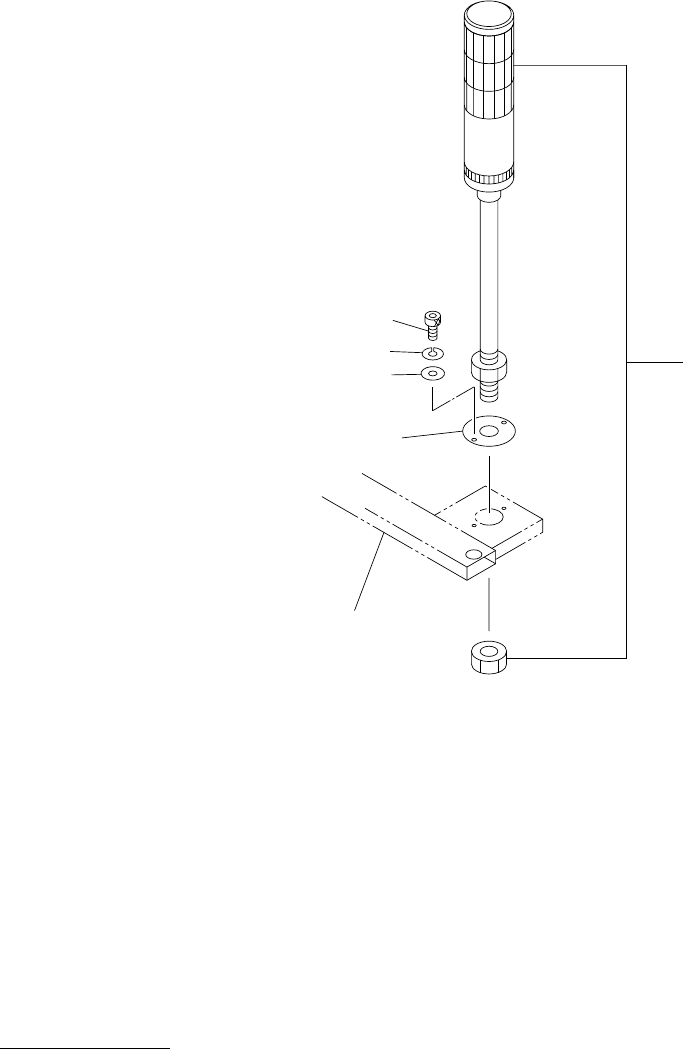

Fig. RM-4 ࠲ࡢἮ Light Tower
351
302
See Fig.MA-2
Key No.109
305
304
303
