MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 29 C-5 401 630 1 14 7994 PLA TE 2 814C--010-401 402 41 1 141 4107 WASHER V 5X10X1 4 814C--010-402 403 41 1 141 6705 WASHER SPR 5 4 814C--010-403 4…
MODEL TCM-X300S
0306-001
28
ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION

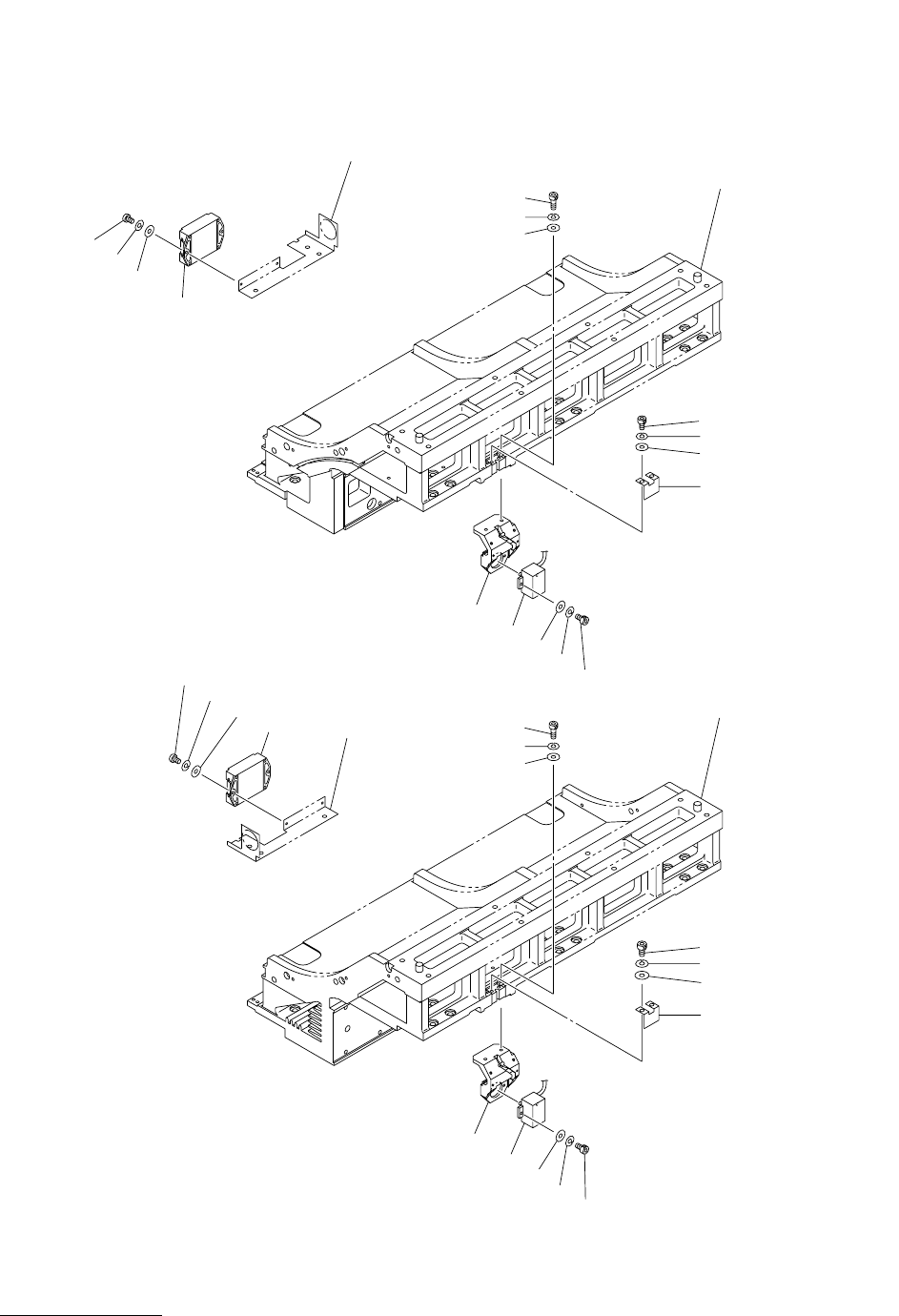

Fig. C-5 ࠬࠤ࡞ࡋ࠶࠼ Scale Head
403
402
404
415
414
413
401
405
406
407
408
416
403
402
404
415
414
413
401
405
406
407
408
416
409
410
411
412
409
410
411
412
See Fig.C-4
Key No.335
See Fig.C-1
Key No.9
See Fig.C-1
Key No.11
See Fig.C-4
Key No.336
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
29
C-5
401 630 114 7994 PLATE 2 814C--010-401
402 411 141 4107 WASHER V 5X10X1 4 814C--010-402
403 411 141 6705 WASHER SPR 5 4 814C--010-403
404 630 000 7787 BOLT,HEX-SCT 8 814C--010-404
405 630 093 3956 ENCODER 2 814C--010-405
406 630 099 6166 WASHER 4 814C--010-406
407 411 008 1706 WASHER SPR 4 4 814C--010-407
408 630 000 7619 BOLT,HEX-SCT 4 814C--010-408
409 630 119 8378 ENCODER 2 814C--010-409
410 411 119 2104 WASHER V 4X9X0.8 4 814C--010-410
411 411 008 1706 WASHER SPR 4 4 814C--010-411
412 411 043 5004 SCR PAN 4X8 4 814C--010-412
413 630 116 2614 BRACKET 2 814C--010-413
414 411 141 4008 WASHER V 4X9X0.8 4 814C--010-414
415 411 141 2905 WASHER SPR 4 4 814C--010-415
416 630 000 7619 BOLT,HEX-SCT 4 814C--010-416
MODEL TCM-X300S
0306-001
30
ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION
Fig. C-6 ࡈࠖ࠳ࠠࡖ࠶ࠫ Feeder Carriage
516
515
517
512
511
513
514
510
506
508
507
509
504
503
502
530
529
528
527
530
529
528
527
See Fig.C-1
Key No.11
See Fig.C-1
Key No.9
505
516
515
517
512
511
513
508
507
506
502
509
514
510
504
503
505
