MODEL TCM-X300S 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 37 D-2 10 2 630 003 7890 PI P E FITTINGS 1 8 1 4D - - 010-102 103 630 1 18 9109 AI R L IN E E QP T 1 814D--010-103 10 3 -02 630 121 4467 AI R LI …
MODEL TCM-X300S
0306-001
36
ⓨᓮㇱ PNEUMATIC SECTION

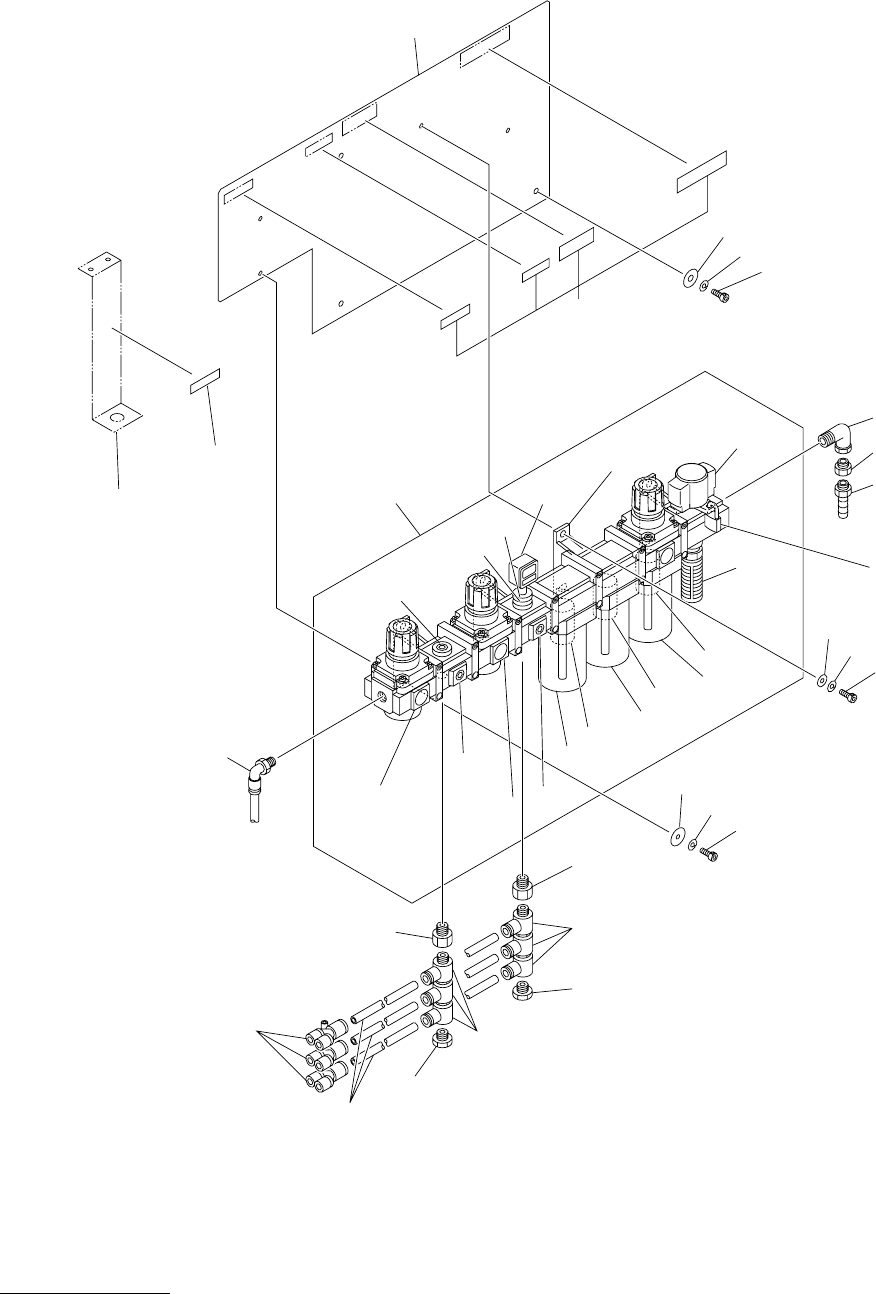

Fig. D-2 ࠛࠕࡐ࠻㈩▤ Air Port Piping
111
112
113
122
121
119
118
116
123
112
113
115
See Fig.D-1
Key No.11
103
103-05
103-11
103-41
103-40
103-31
103-30
103-21
103-20
103-07
103-10
103-09
103-14
103-06
103-08
103-13
103-12
103-02
102
104
105
114
106
107
107
108
108
117
109
109
124
MODEL TCM-X300S
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
37
D-2
102 630 003 7890 PIPE FITTINGS 1 814D--010-102
103 630 118 9109 AIR LINE EQPT 1 814D--010-103
103 -02 630 121 4467 AIR LINE EQPT 1
103 -05 630 121 4481 VALVE 1
103 -06 630 105 7606 SWITCH,PRESSURE 1 SP1
103 -07 630 105 7538 PIPE FITTINGS 2
103 -08 630 121 4504 AIR LINE EQPT 4
103 -09 630 121 4498 AIR LINE EQPT 3
103 -10 630 121 4474 AIR LINE EQPT 1
103 -11 630 105 7521 AIR LINE EQPT 1
103 -12 630 121 4535 PIPE FITTINGS 1
103 -13 630 105 7545 PIPE FITTINGS 1
103 -14 630 105 7569 PIPE FITTINGS 5
103 -20 630 121 4436 AIR LINE EQPT 1
103 -21 630 121 5648 AIR LINE EQPT(ELEMENT) 1
103 -30 630 121 4443 AIR CLEAN EQPT 1
103 -31 630 121 5655 AIR LINE EQPT(ELEMENT) 1
103 -40 630 121 4450 AIR CLEAN EQPT 1
103 -41 630 121 5662 AIR LINE EQPT(ELEMENT) 1
104 630 003 8033 PIPE FITTINGS 1 814D--010-104
105 630 008 0285 PIPE FITTINGS 1 814D--010-105
106 630 003 7364 PIPE FITTINGS 1 814D--010-106
107 630 003 8231 PIPE FITTINGS 2 814D--010-107
108 630 003 8224 PIPE FITTINGS 6 814D--010-108
109 630 003 8248 PIPE FITTINGS 2 814D--010-109
111 411 141 4305 WASHER V 6X12.5X1.6 2 814D--010-111
112 411 141 3001 WASHER SPR 6 4 814D--010-112
113 630 000 7893 BOLT,HEX-SCT 4 814D--010-113
114 630 053 4917 MECH PARTS (PADLOCK) 1 814D--010-114
115 630 119 9481 COVER 1 814D--010-115
116 630 000 7763 BOLT,HEX-SCT 3 814D--010-116
117 630 089 9559 PIPE FITTINGS 3 814D--010-117
118 411 141 6705 WASHER SPR 5 3 814D--010-118
119 630 001 0220 WASHER 3 814D--010-119
121 630 101 4593 NAME PLATE,PARTS 1 814D--010-121
122 630 101 4609 NAME PLATE,PARTS 1 814D--010-122
123 630 003 7890 PIPE FITTINGS 1 814D--010-123
124 630 119 6848 TUBE 1 814D--010-124
MODEL TCM-X300S
0306-001
38
ⓨᓮㇱ PNEUMATIC SECTION

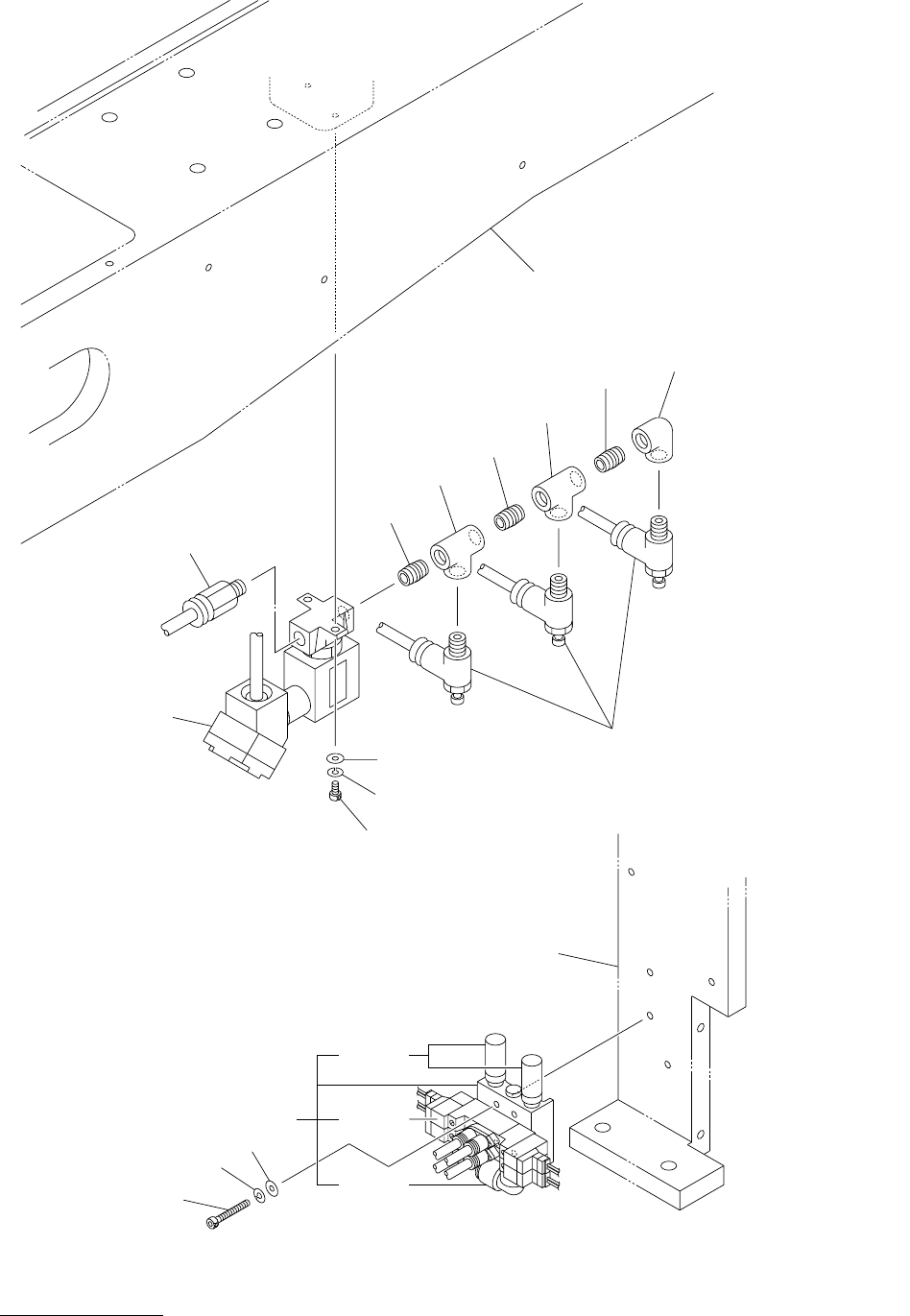

Fig. D-3 ࠛࠕ㈩▤ Air Piping
213
205
209
208
206
210
207
206
207
206
212
211
202
201-03
201-02201
201-04
203
204
See Fig.L-1
Key No.12
See Fig.F-1
Key No.1
