Page
SAMSUNG TECHWIN
10
SM321
Docking Cart Ass’y (2/2)
10
9
11
14
13
12
Page
SAMSUNG TECHWIN
11
SM321
Docking Cart Ass’y
P art L is t
Reference
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 .1 J90570180C DOCKING CART ASSY
1
J9057180B
2 ...3 J9083003A D-CART INNER I/F CABLE ASSY[SM-DC003]
1
SM-DC003 ○
○
○
○
○
○
○
○
○
○
3 ...3 J9060354A FEEDER BASE RIGHT COVER PCB, DOCKING CAR
1
REV 1.0 ○
4 ...3 J9060353A FEEDER BASE LEFT COVER PCB, DOCKING CART
1
REV 1.0 ○
5 ...3 J9060350D FEEDER BASE RIGHT BOARD, DOCKING CART[RE
1
REV 2.1
6 ...3 J9060349D FEEDER BASE LEFT BOARD, DOCKING CART[REV
1
REV 2.1
7 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5]
2
KQ2L04-M5/PL4-M5M/SQL04-M5
8 J6711245A COUPLING[KD-M5-SA]
60
KD-M5-SA
9 ...3 J7057258B ROLLER COVER-L[J7057258B]
1
J7057258B
10 ...3 J7057257B ROLLER COVER-R[J7057257B]
1
J7057257B
11 ...3 J7057253A SIDE COVER[J7057253A]
2
J7057253A
12 ...3 J6109007A SWIVEL CASTER[TP5040-23-HDP-TLB]
2
TP5040-23-HDP-TLB
13 ...3 J6109006A URETAN WHEEL[TP8015-PLY]
10
TP8015-PLY
14 ...3 J6109008A SWIVEL CASTER[105N]
2
105N
15 ..2 J7057261B TOP PLATE-DC[J7057261B]
1
J7057261B
16
17
...3 J7057219C BOARD COVER[J7057219C]
1
J7057219C
18
...3 J3501029A RELAY[MY2N-D2 24VDC]
1
MY2N-D2 24VDC
19
...3 J9083004B D-CART INNER DEVICE NET CABLE ASSY[SM-DC
1
SM-DC004 No.1 at115 page
20
...3 J9080857B FDR INPUT EXT CABLE ASSY, D-CART[SM_FD01
1
SM_FD017 No.2 at115 page
21
...3 J9080856C D-CART INNER PWR/CAN CABLE ASSY, D-CART[
1
SM_FD016 No.3 at115 page
22
...3 J9080855B RIGHT FDR SENOR INPUT CABLE ASSY, D-CART
1
SM_FD015 No.4 at115 page
23
...3 J9080854C LEFT FDR SENOR INPUT CABLE ASSY, D-CART[
1
SM_FD014 No.5 at115 page
24
...3 J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY, D-CART[
1
SM_FD013 No.6 at115 page
25
...3 J9080852D LEFT FDR SOL OUTPUT CABLE ASSY, D-CART[S
1
SM_FD012 No.7 at115 page
26
..2 J90800749C FFDR-RFDR CAN CABLE ASSY
1
SM-CA002 No.3 at 83, 84 page
27
Page
SAMSUNG TECHWIN
12
SM321

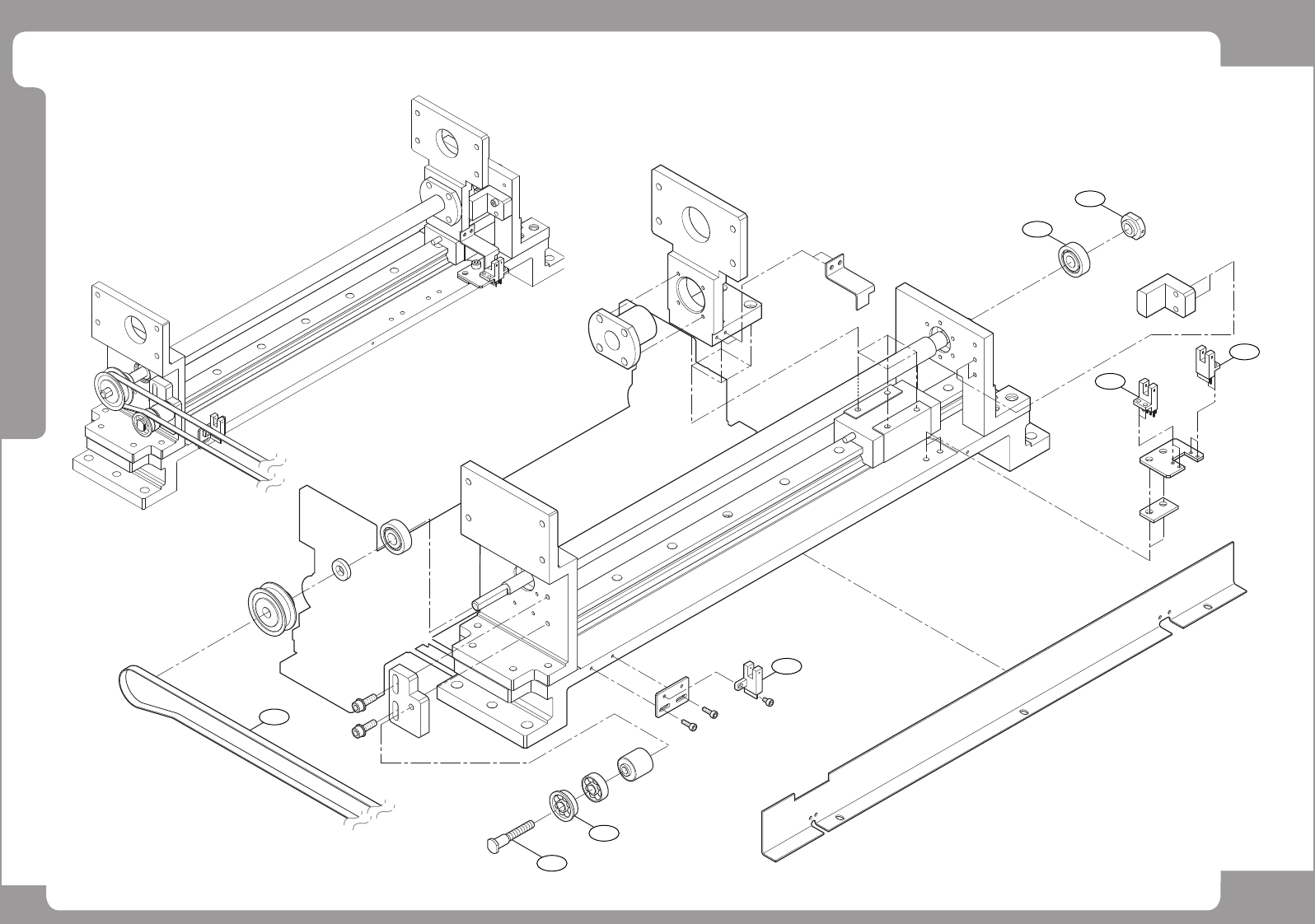

Conveyor Ass’y (1/5)
