SM321 Technical Reference_Ver3 - 第25页
Page SAMSUNG TECHWIN 25 SM321 F ly C ame ra Ass’ y_ 4F 4 1 C A ME R A A S S ' Y ( F 2 5 , ME G A - F 2 5 ) C A ME R A A S S ' Y ( F 1 0 , F 1 5 ) 6 8 3 2
Page
SAMSUNG TECHWIN
24
SM321
Base Frame Ass’y
P art L is t
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 J9053342A BASE_FRAME_ASSY-H900
1
J9053342A
2 ...3 J6079000236S C-RING(SHAFT)
4
DIA22 ○
3 ...3 J2100018 NUT FOOT [0131-611026]
4
0131-611026 ○
4 ...3 J7351001A CUSHION FOOT
4
0131-611025-P1 ○
5 ...3 J7051008C BASE-FOOT[J7051008C]
4
J7051008C ○
6 ...3 J7051009C BOLT-FOOT[J7051009C]
4
J7051009C
1 J91831002A BASE_FRAME_ASSY-H950
1
J91831002A
2 ...3 J6079000236S C-RING(SHAFT)
4
DIA22
○
3 ...3 J2100018 NUT FOOT [0131-611026]
4
0131-611026
○
4 ...3 J7351001A CUSHION FOOT
4
0131-611025-P1
○
5 ...3 J7051009C BOLT-FOOT[J7051009C]
4
J7051009C
6 ...3 J7051008C BASE-FOOT[J7051008C]
4
J7051008C
○
Reference
Page
SAMSUNG TECHWIN
25
SM321

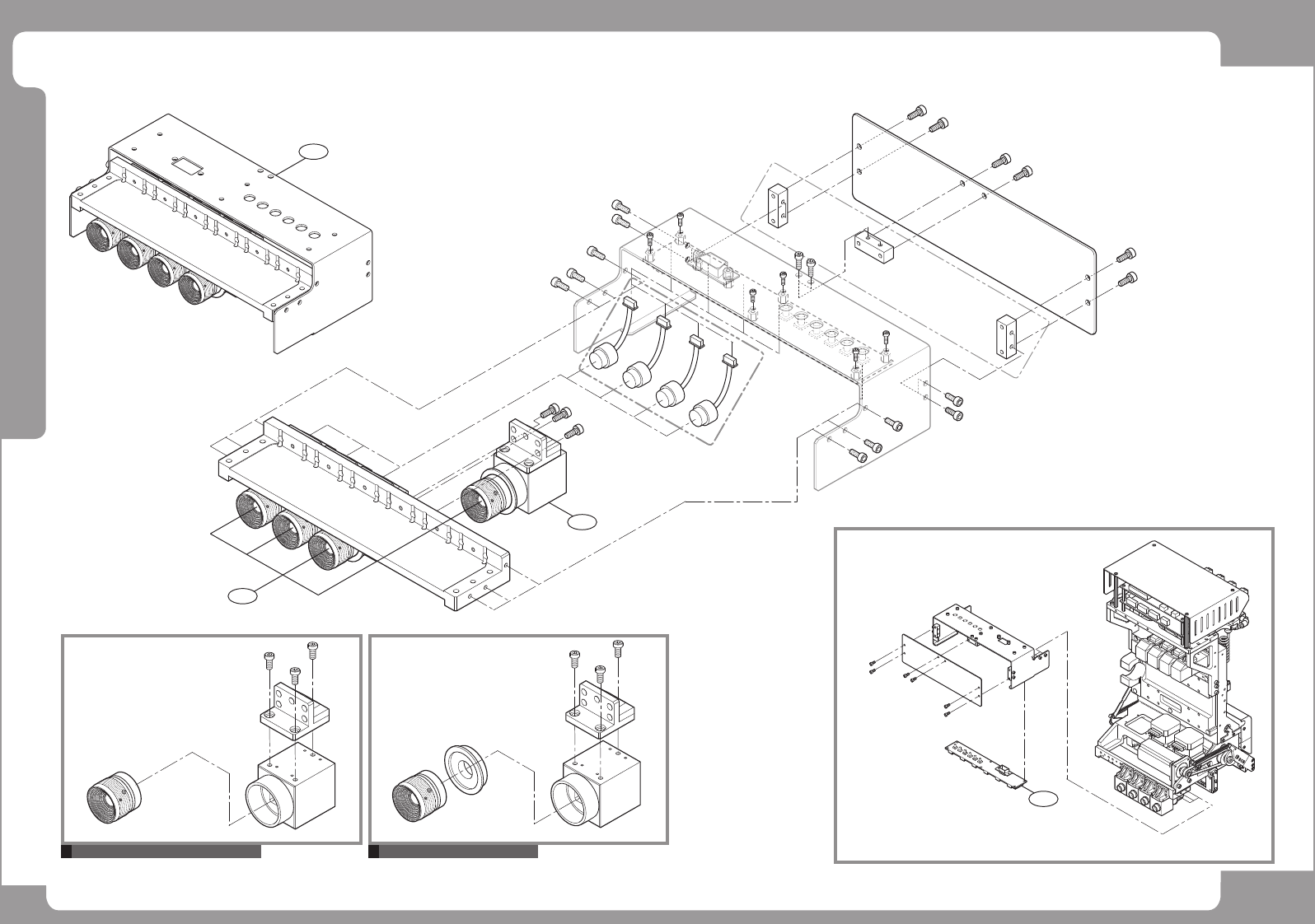

Fly Camera Ass’y_4F
4
1
C A ME R A AS S 'Y (F 25, ME GA -F 25) C A ME R A AS S 'Y (F 10, F15)
6
8
3
2
Page
SAMSUNG TECHWIN
26
SM321
Fly Camera Ass’y_4F
P art L is t
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 J90551085A FLY_VISION_ASSY_4F25 J90551085A
1
J90551085A
2 ...3 J90551093A FLY_CAM_ASSY_4F25 J90551093A
1
J90551093A
3 ....4 J9055349A FLY CAMERA ONE KITASSY(F25)
6
J9055349A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
7 J90551086A FLY_VISION_ASSY_4F15 J90551086A
1
J90551086A
2 ...3 J90551094A FLY_CAM_ASSY_4F15 J90551094A
1
J90551094A
3 ....4 J9055350A FLY CAMERA ONE KITASSY(F15)
6
J9055350A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
8 J90551087A FLY_VISION_ASSY_4F10 J90551087A
1
J90551087A
2 ...3 J90551095A FLY_CAM_ASSY_4F10 J90551095A
1
J90551095A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
9 J90551088A FLY_VISION_ASSY_MEGA-4F25 J90551088A
1
J90551088A
2 ...3 J90551096A FLY_CAM_ASSY_MEGA-4F25 J90551096A
1
J90551096A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
7 ....4 J91741025A J90551016AMEGA_CAMERA_IO_BOARDD VER1.0
1
VER1.0
○
6 ..2 J9083207A NEXTEYE B/D I/F CABLE ASSY,MEGA[SM21-VIS
1
SM21-VIS012
○
