SM321 Technical Reference_Ver3 - 第28页
Page SAMSUNG TECHWIN 28 SM321 F ly C ame ra Ass’ y_ 6F P a r t L i s t J90551009A NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock 10 J90551025A FLY_VISION_ASSY_F25 1 J90551025A 2 ..2 J90551003A FLY_CAMERA_ASSY_…
Page
SAMSUNG TECHWIN
27
SM321

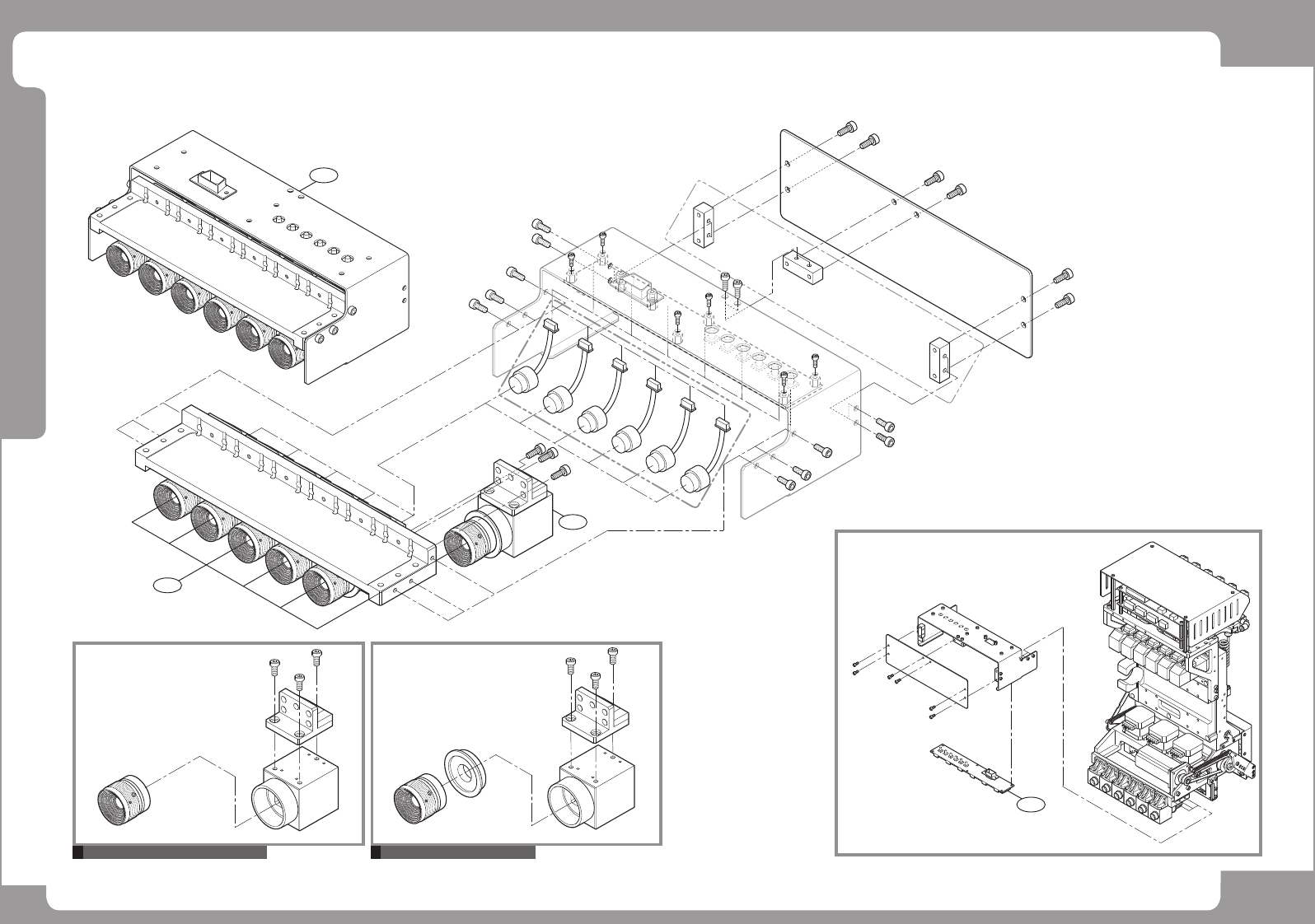

Fly Camera Ass’y_6F
4
3
1
C A ME R A AS S 'Y (F 25, ME GA-F 25) C A ME R A AS S 'Y (F 10, F 15)
6
8
2
Page
SAMSUNG TECHWIN
28
SM321

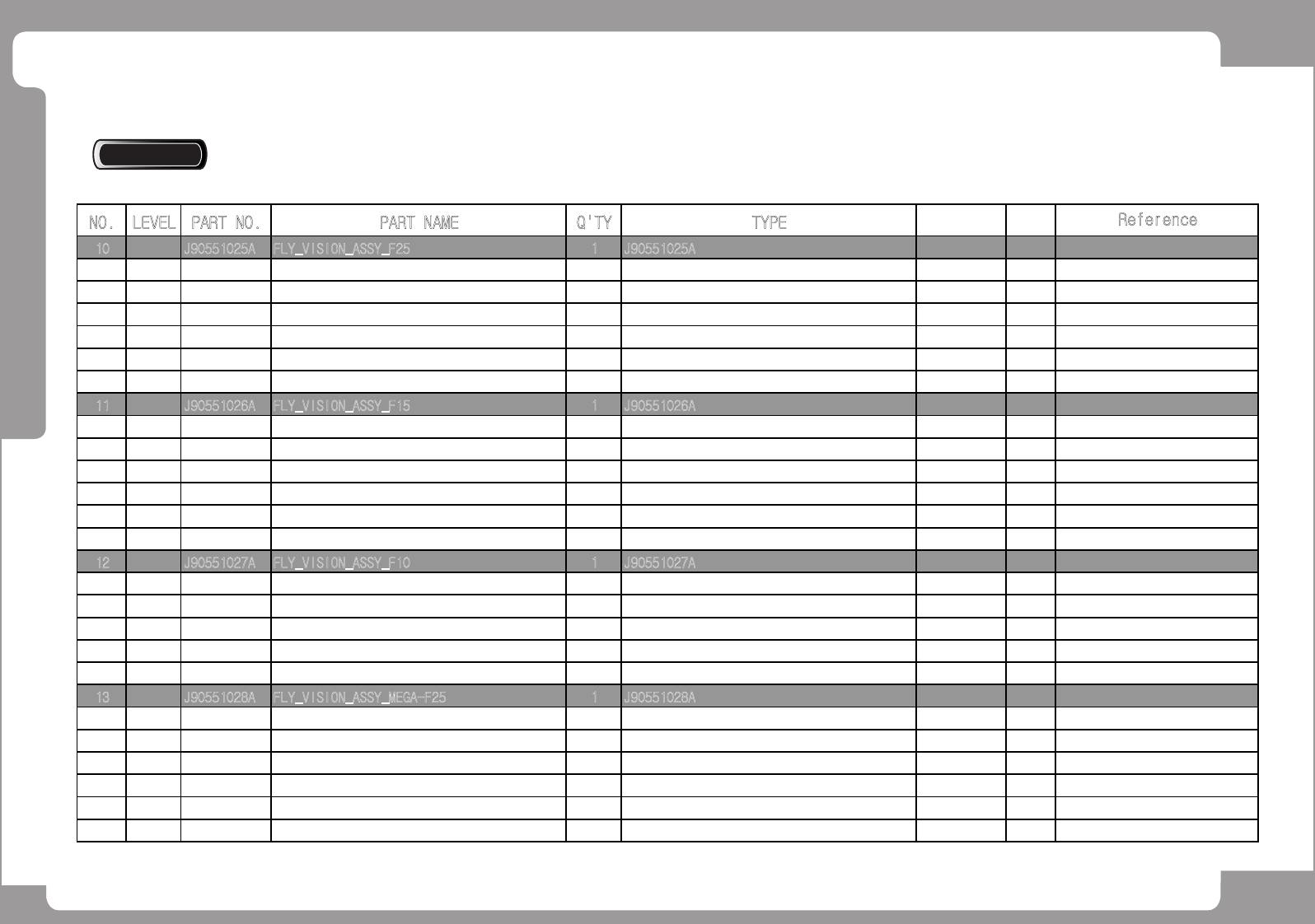

Fly Camera Ass’y_6F
P art L is t
J90551009A
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
10 J90551025A FLY_VISION_ASSY_F25
1
J90551025A
2 ..2 J90551003A FLY_CAMERA_ASSY_F25
1
J90551003A
3 ....4 J9055349A FLY CAMERA ONE KITASSY(F25)
6
J9055349A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
11 J90551026A FLY_VISION_ASSY_F15
1
J90551026A
2 ...3 J90551018A FLY_CAM_ASSY_F15
1
J90551018A
3 ....4 J9055350A FLY CAMERA ONE KITASSY(F15)
6
J9055350A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
12 J90551027A FLY_VISION_ASSY_F10
1
J90551027A
2 ...3 J90551020A FLY_CAM_ASSY_F10
1
J90551020A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
6 ..2 J9083159A NEXTEYE B/D I/F CABLE ASSY,HR70[SM21-VIS
1
SM21-VIS004
○
13 J90551028A FLY_VISION_ASSY_MEGA-F25
1
J90551028A
2 ...3 J90551021A FLY_CAM_ASSY_MEGA-F25
1
J90551021A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
○
6 ..2 J90830207B NEXTEYE B/D I/F CABLE ASSY,MEGA SM21-VIS
1
SM21-VIS012
Reference
Page
SAMSUNG TECHWIN
29
SM321

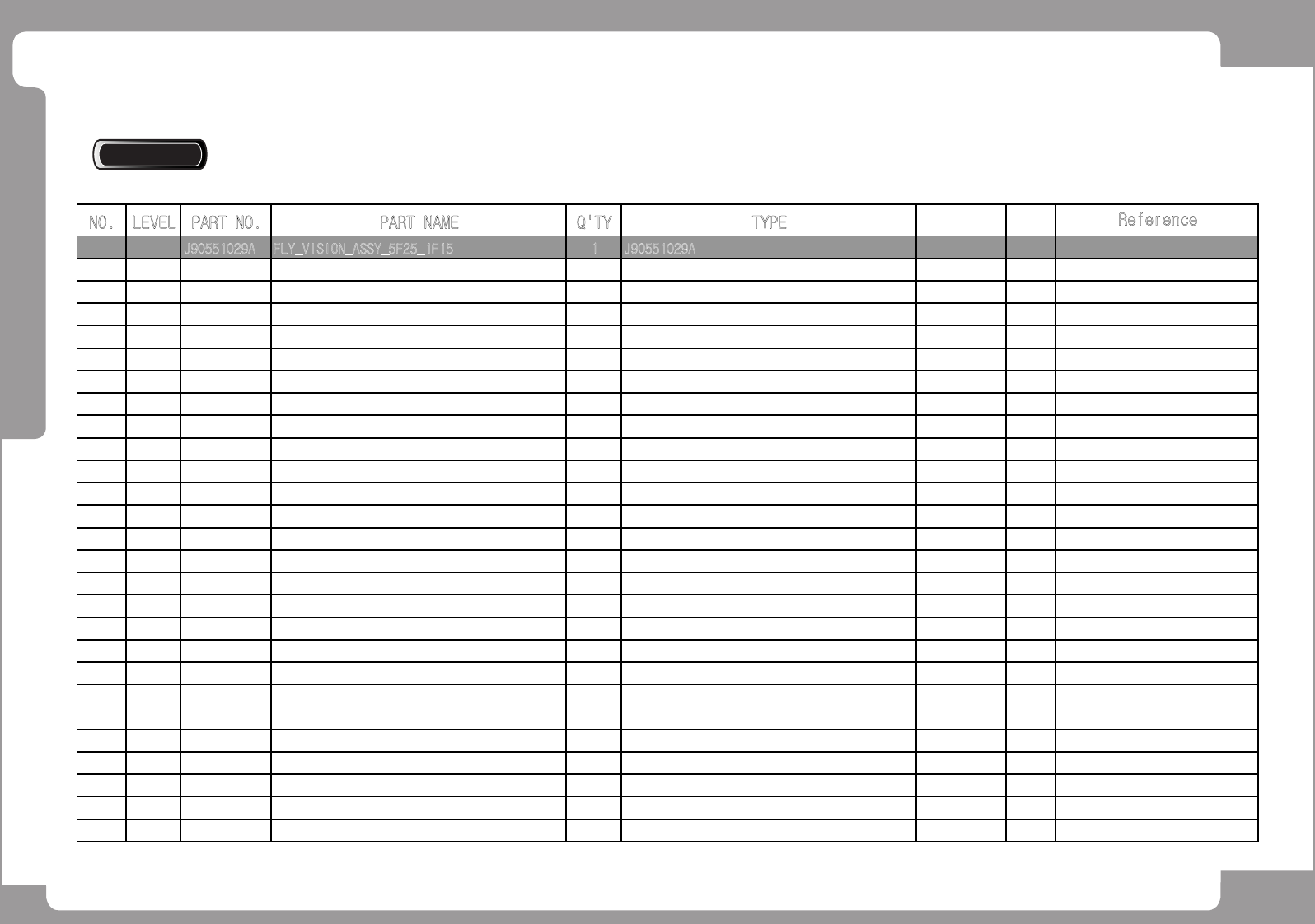

Fly Camera Ass’y_6F
Reference
P art L is t
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
14 J90551029A FLY_VISION_ASSY_5F25_1F15
1
J90551029A
2 ...3 J90551023A FLY_CAM_ASSY_5F25_1F15
1
J90551023A
4 ....4 J9060411A SM321 CAMERA I/O BOARD[J9060411A]
1
J9060411A
○
5 ...3 J9083161A FLYING CAMERA I/F CABLE ASSY[SM21-VIS011
6
SM21-VIS011
○
○
6 ..2 J90830207B NEXTEYE B/D I/F CABLE ASSY,MEGA SM21-VIS
1
SM21-VIS012
