Head Ass’y_6Spindle (5/5)
7
8
2
Page
SAMSUNG TECHWIN
45
SM321

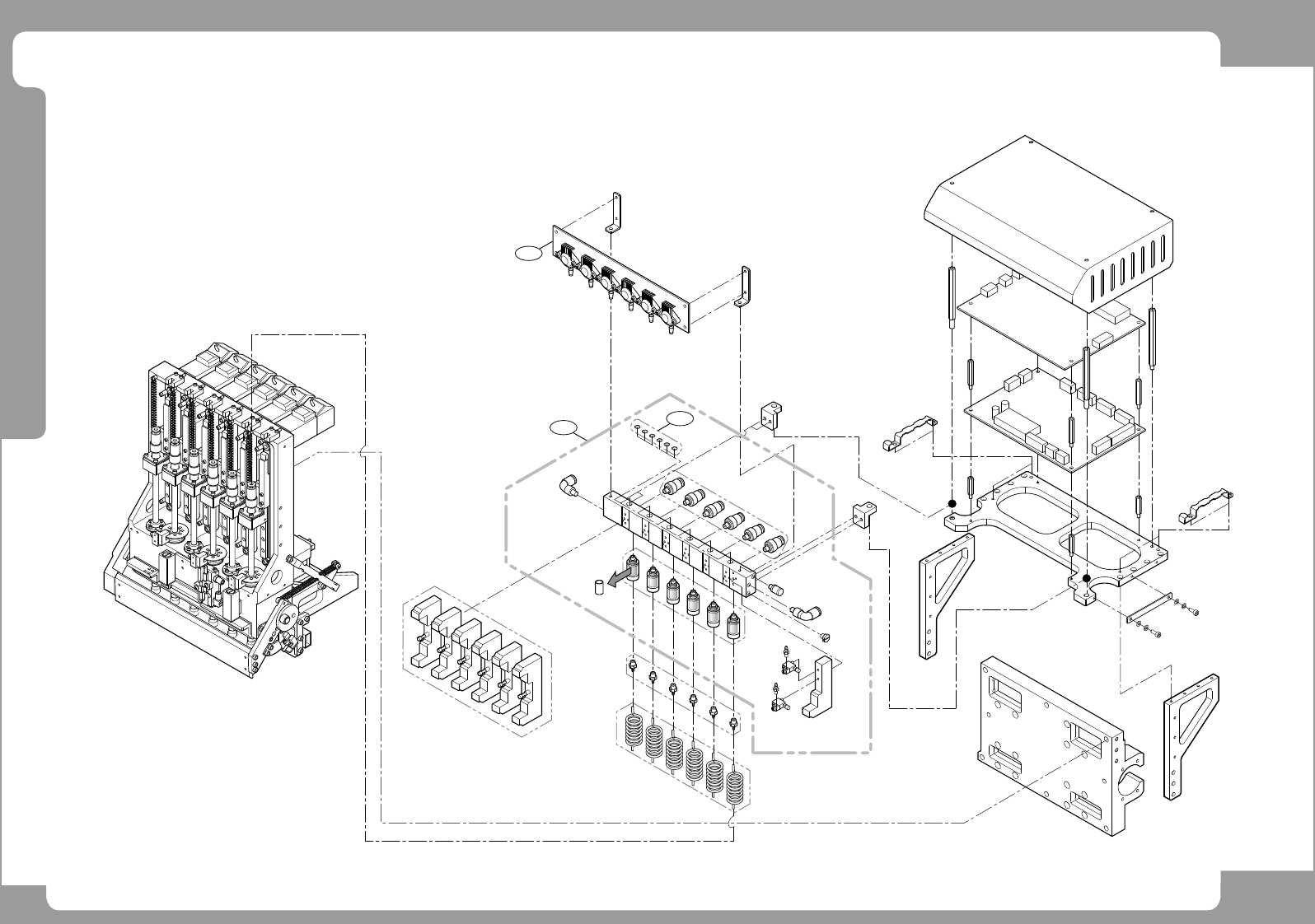

Head Ass’y_6Spindle
P art L is t
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 J9055353A HEAD ASSY[J9055353A]
1
J9055353A
2 ...3 J7155546A INSERT[J7155546A] 6 J7155546A
3 ..2 J9083184A R HOME SENSOR CABLE ASSY[SM21-HD013]
1
SM21-HD013
○
No.5 at 92 page
4 ..2 J90831010A R56_MOTOR_CABLE_ASSY
1
SM21-MD040
○
5 ..2 J9080827A Z5 MOTOR CABLE ASSY[SM_MD030]
1
SM_MD030
○
6 ..2 J9080828A Z6 MOTOR CABLE ASSY[SM_MD031]
1
SM_MD031
○
7 ..2 J9060412A SM321 VACUUM SENSOR BOARD[J9060412A]
1
J9060412A
○
8 ..2 J90550246E AIR MODULE
1
J90550246E
○
9 ..2 J90551007A SPLINE_HOUSING_ASSY
6
J90551007A
○
10 ..2 J6107044A SPRING[AWY 6-50]
2
AWY 6-50
○
11 ..2 J6601079A BALL BEARING [695ZZ]
2
695ZZ
○
12 ..2 J6601088A BALL BEARING [605ZZ]
12
605ZZ
○
13 ..2 J66021024A TIMING_BELT 232-2GT-4
3
232-2GT-4
○
14 ..2 J6751014A CCD CAMERA[VCC-G20E20]
1
VCC-G20E20
○
15 ..2 J7055143B CAM [J7055143B]
1
J7055143B
○
16 ....4 J9060415A SM321 SIDE LED BOARD[J9060415A] 1 J9060415A
17 ...3 J6601081A CAM FOLLOWER [CF3UU-A] 1 CF3UU-A
18 ..2 J9055357A PULLEY ASSY (Z-AXIS 2) 4 J9055357A
19 ...3 J7055658A PULLEY PIN[J7055658A] 1 J7055658A
20 ...3 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1 J7155565A
21 ..2 J90591004A F-MOVING_12058_LENS_ASSY 1 J90591004A
22 ...3 J6601140A
J90831191A
J6602077A
J7055550A
J7155519A
J6601128ABALL BEARING[MR684ZZ] 2 MR684ZZ
23 ..2 J9083180A Z HOME SENSOR CABLE ASSY[SM21-HD008]
1
SM21-HD008
24 ..2 J90830178B R AUX SENSOR CABLE ASSY SM21-HD003
1
SM21-HD003 No.7 at 92 page
25 ...3 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1]
1
REV 1.1
○
26 ...3 J9060404A HEAD SIDE LED ASSY[SM21-HEAD-SIDE]
1
SM21-HEAD-SIDE
○
○
27 .....5 J90800806D Z1 MOTOR ENC CABLE ASSY SM_MD009
1
SM_MD009 No.1 at 98 page
Reference
Page
SAMSUNG TECHWIN
46
SM321
Head Ass’y_6Spindle
P art L is t
Reference
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
28 .....5 J90800808D Z2 MOTOR ENC CABLE ASSY SM_MD011
1
SM_MD011 No.2 at 98 page
29 .....5 J90800810D Z3 MOTOR ENC CABLE ASSY SM_MD013
1
SM_MD013 No.1 at 99 page
30 .....5 J90800813D Z5 MOTOR PWR CABLE ASSY SM_MD016 1 SM_MD016 No.4 at 100 page
31 .....5 J90800814D Z5 MOTOR ENC CABLE ASSY SM_MD017
1
SM_MD017 No.1 at 100 page
32 .....5 J90800815D Z6 MOTOR PWR CABLE ASSY SM_MD018 1 SM_MD018 No.5 at 100 page
33 .....5 J90800816D Z6 MOTOR ENC CABLE ASSY SM_MD019
1
SM_MD019 No.2 at 100 page
34 .....5 J90800818D SWING MOTOR ENC CABLE ASSY SM_MD021
1
SM_MD021 No.1 at 101 page
35 .....5 J90800812D Z4 MOTOR ENC CABLE ASSY SM_MD015
1
SM_MD015 No.2 at 99 page
36 ..2 J9083182A HEAD VAC SENSOR CABLE ASSY[SM21-HD011]
1
SM21-HD011
○
○
○
○
○
○
○
○
○
No.2 at 93 page
37 ..2 J9083183A HEAD BLOW SOL CABLE ASSY[SM21-HD012]
1
SM21-HD012
○
No.1 at 93 page
38 ..2 J9083160A FLY CAM SIG CABLE ASSY[SM21-VIS010]
1
SM21-VIS010
○
39 ..2 J90830189B R STEP MOTOR PWR CABLE ASSY
1
SM21-MD033
○
○
No.3 at 102 page
40 ..2 J90800708E FLAT_FIDUCIAL CAMERA CABLE ASSY SM-VIS00
1
SM-VIS006
