Page SAMSUNG TECHWIN 55 SM321 X -B al l S cr ew As s’ y P a r t L i s t Reference NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock 1 ...3 J90541002A X-BALL_SCREW_MODULE 1 J90541002A 2 ....4 J66060037B BALL SCREW…
Page
SAMSUNG TECHWIN
54
SM321

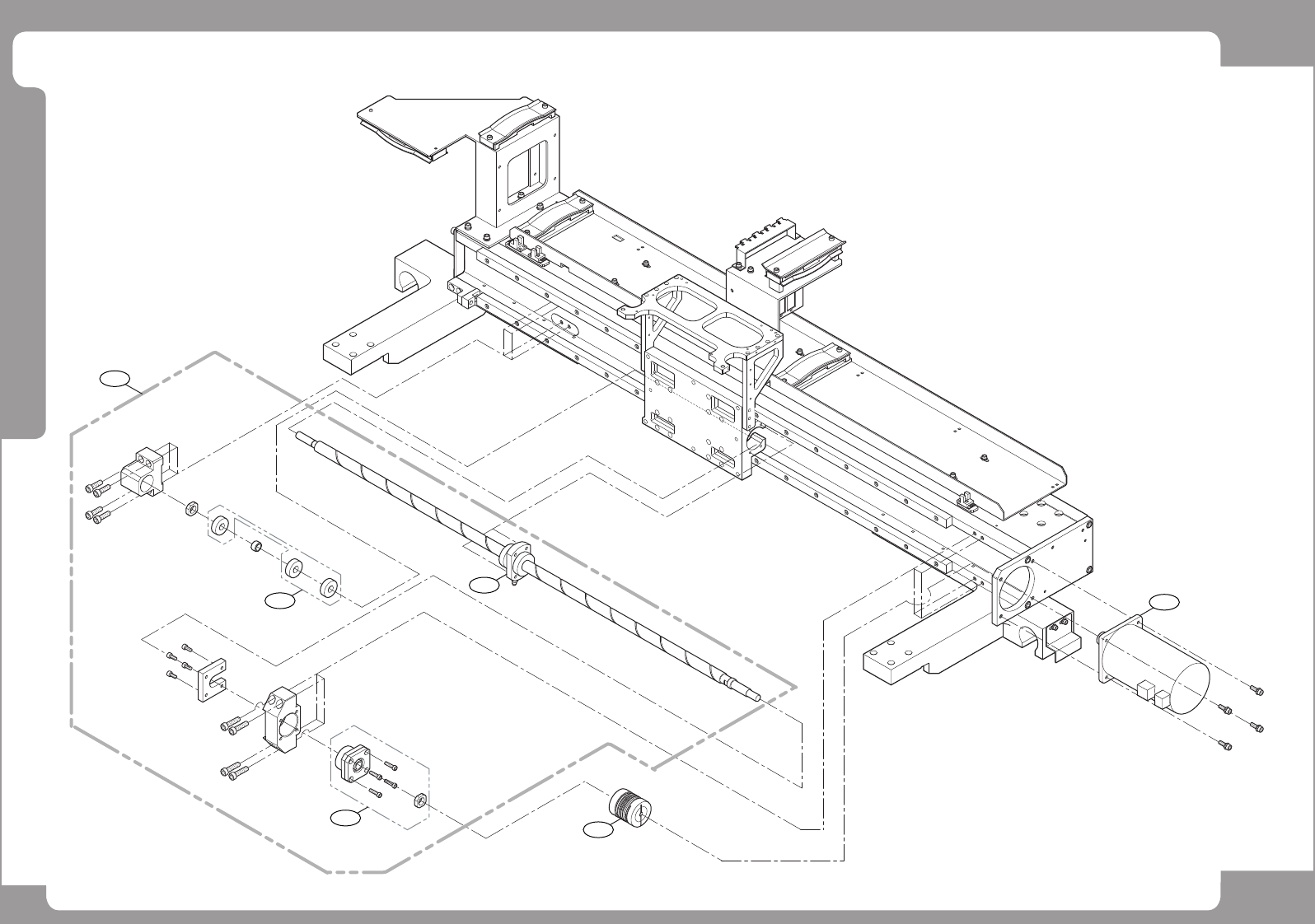

X-Ball Screw Ass’y (2/2)
7
6
2
5
1
12
Page
SAMSUNG TECHWIN
55
SM321
X-Ball Screw Ass’y
P art L is t
Reference
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 ...3 J90541002A X-BALL_SCREW_MODULE
1
J90541002A
2 ....4 J66060037B BALL SCREW HG1632QS-HEZR-0922X0812-C5F 1 HG1632QS-HEZR-0922X0812-C5F
3 ...3 J66070076B LM_GUIDE [SSR15X2W2UUC1+940LHY-II] 2 SSR15XW2UUC1+940LHY-II
4 ..2 J7254016D INNER GUIDE-MAT[J7254016D] 3 J7254016D
5 ....4 J1300509 BALL BEARING [6000ZZ]
2
6000ZZ
○
6 ....4 J6601138A SUPPORT UNIT[FK12 MP5]
1
FK12 MP5
○
7 ..2 J3108063A SERVO MOTOR[MSMA082P1A01]
1
MSMA082P1A01
○
8 ...3 J7354024A CABLE CUSHION Y[J7354024A]
1
J7354024A
○
9 ...3 J7054256A CUSHION BRACKET Y[J7054256A]
1
J7054256A
○
10 ...3 J7054255A CUSHION BRACKET X[J7054255A] 4 J7054255A
11 ...3 J7354023A CABLE CUSHION X[J7354023A] 4 J7354023A
12 ..2 J6612035A COUPLING[SFC 040DA 10B-19B (TYPE B)]
1
SFC 040DA 10B-19B (TYPE B)
○
13 ...3 J3212022A LIMIT SENSOR [EE-SX674]
3
EE-SX674
○
14
15
16
17
18
19
20
21
22
23
24
25
26
27
