Page SAMSUNG TECHWIN 61 SM321 A NC Ass ’y Reference P a r t L i s t NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock 1 J9056038A ANC ASSY[J9056038A] 1 J9056038A 2 ..2 J6703028A SPEED CONTROLLER [SS4-M5MA] 2 SS4-…
Page
SAMSUNG TECHWIN
60
SM321

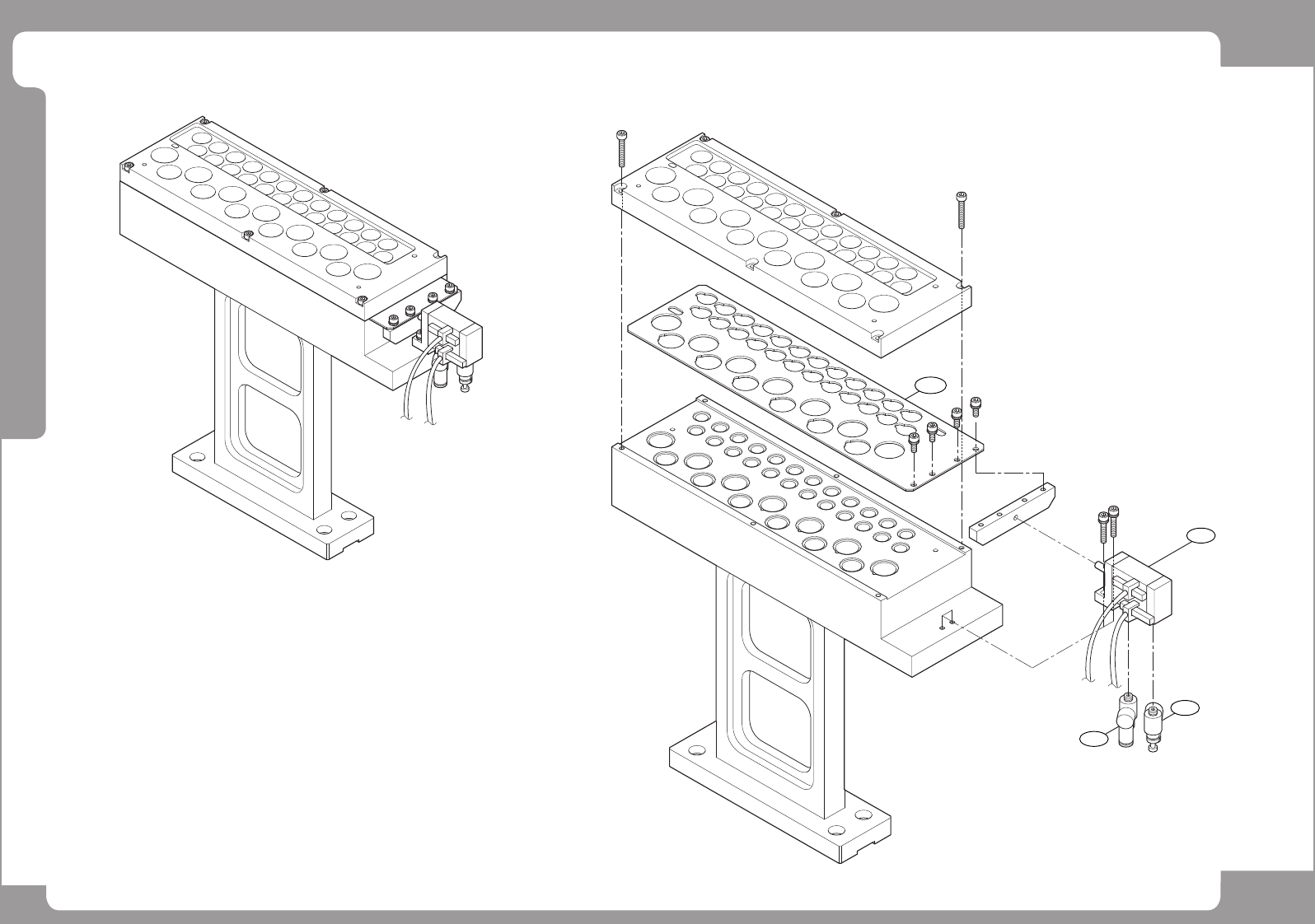

ANC Ass’y
2
4
2
3
Page
SAMSUNG TECHWIN
61
SM321
ANC Ass’y
Reference
P art L is t
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock
1 J9056038A ANC ASSY[J9056038A]
1
J9056038A
2 ..2 J6703028A SPEED CONTROLLER [SS4-M5MA] 2 SS4-M5MA
3 ..2 J7156094A NOZZLE SHUTTER[J7156094A]
1
J7156094A
○
4 ..2 J9080778B ANC SENSOR CABLE ASSY[SM-CV010]
1
SM-CV010
○
No.1 at 87 page
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
