B01 Shape Data (B01_13)
0107-001 2-81 Tg0502-PM-CL
Fig.B175
# of Rows
[pcs.]
−99.999
Grp
No.
1
# of Cols
[pcs.]
−99.999

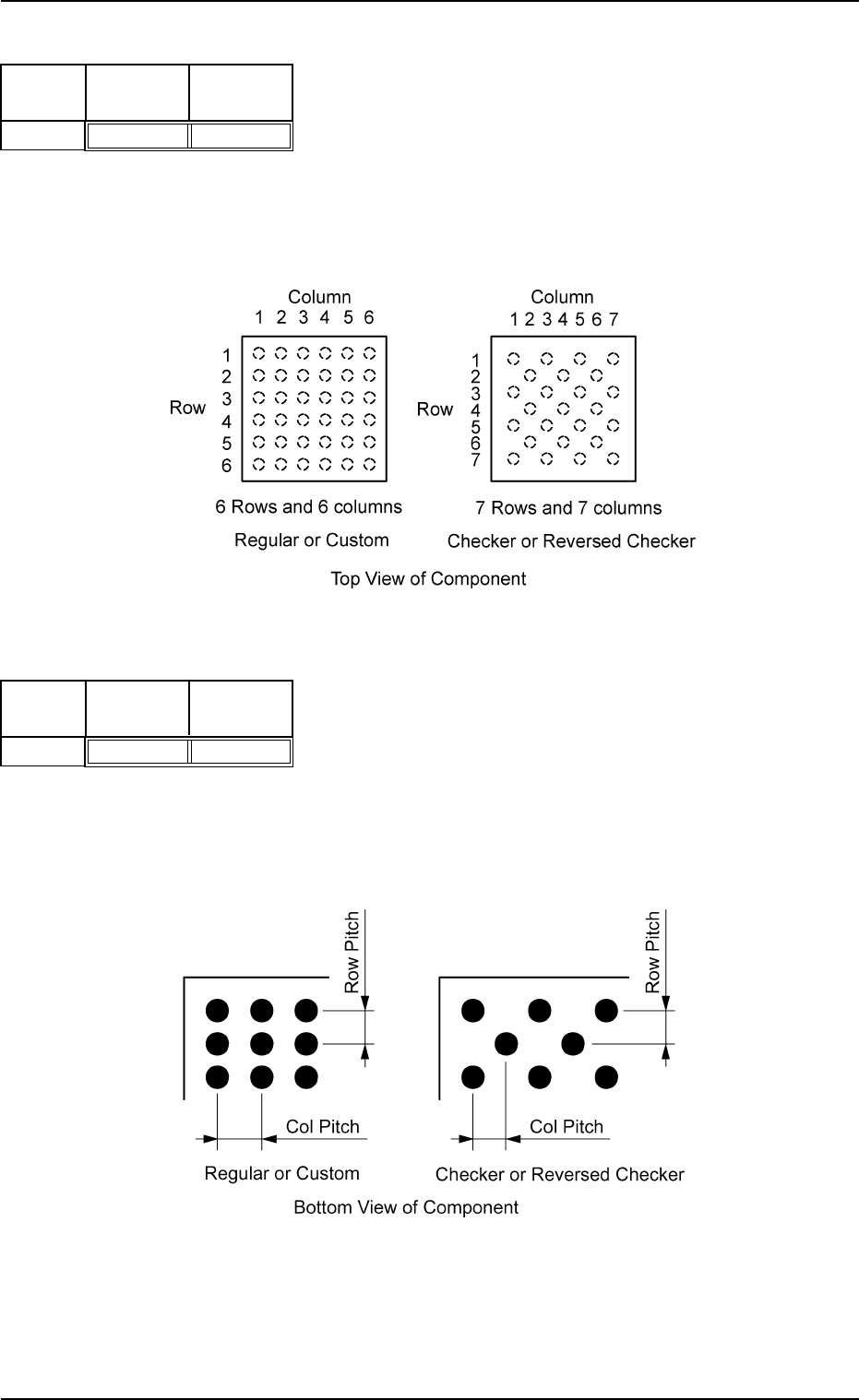

(3) Electrical Group # of Rows [pcs.], # of Cols [pcs.]
Set the number of rows and columns in which balls are arrayed.
Unit: pieces
Data Input Range: 1 to 255
Fig.B177
Row Pitch
[mm]
00.000
Grp
No.
1
Col Pitch
[mm]
00.000
(4) Electrical Group Row Pitch [mm], Col Pitch [mm]
Set the pitches at which balls are arrayed in each row and column.
Unit: mm
Data Input Range: 0 to 99.999
Fig. B176
Fig. B178
B01 Shape Data (B01_13)
0111-002 2-82 Tg0502-PM-CL

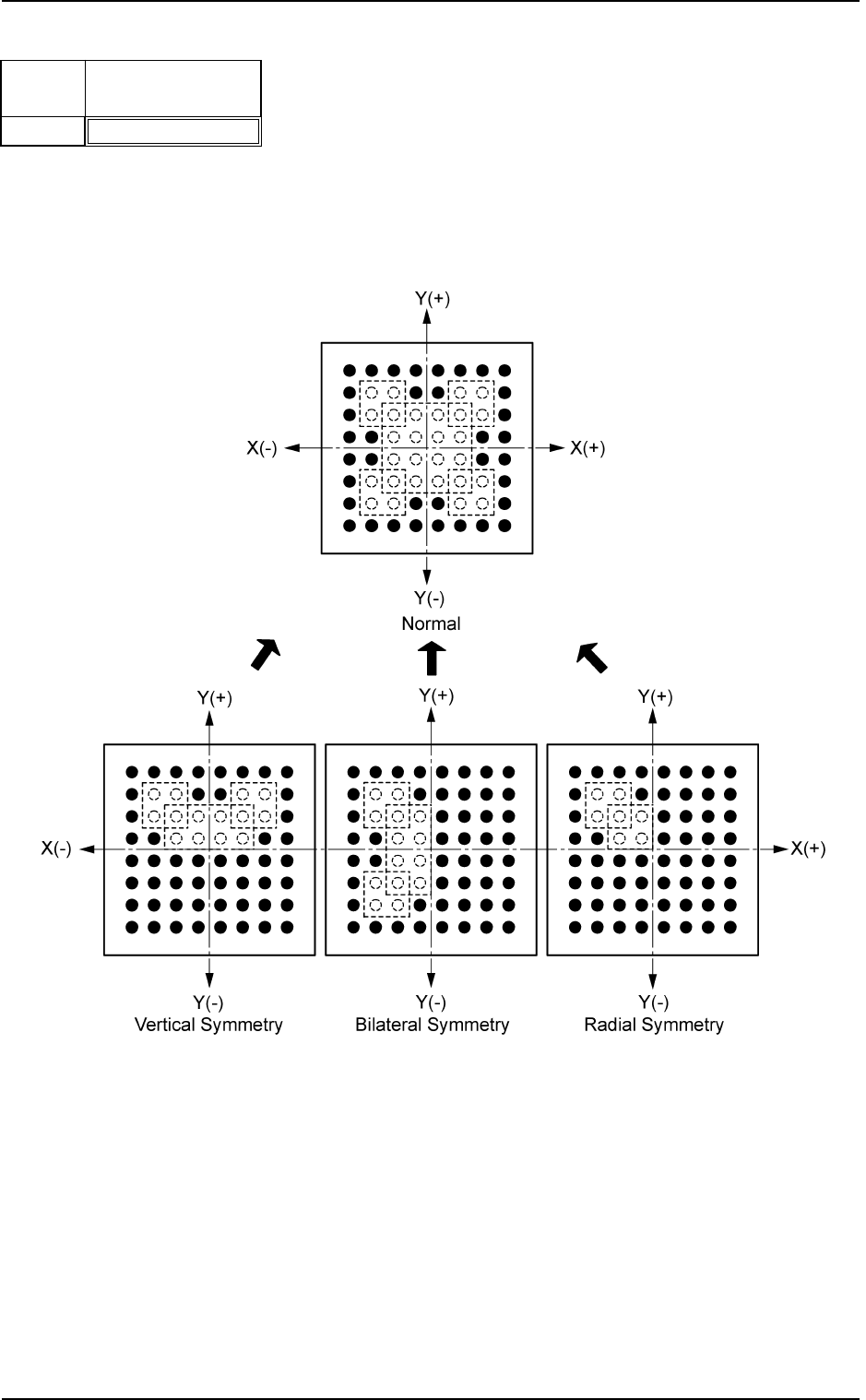

(5) Electrical Group Missing Elctd Set
Select the missing pattern of the electrical contacts from the fol-
lowing options.
No Missing Cmpnt Normal Vertical Symmetry
Bilateral Symmetry Radial Symmetry
Setting this data, the instruction for the missing electrode block
can be simplified
Fig.B179
Missing
Elctd Set
No Missing Cmpnt
Grp
No.
1
Converted in the
internal recognition
Fig. B180
B01 Shape Data (B01_13)
0206-002 2-83 Tg0502-PM-CL
(6) Electrical Group # of Missing
Set the number of missing electrode blocks.
When there are any missing electrodes in the electrode arrangement,
set it using block (missing electrode array).
Data Input Range: 0 to 40
Blocks can be overlapped.
Fig.B181
# of Missing
00
Grp
No.
1
