Corresponding T able for Component Name and Component Abbreviation Basic Form for Component ID (first 8 characters) {{{{ ...... shows the component size. T  .......... shows the component thickness. T able C1 Component…

3.1 General Components (ICs excluded)

3.1.1 Component Name, Component Size, Component Thick-

ness, Manufacturer's Model No. and No. of Leads

The characters from the first to the eighth show the component name,

component size, component thickness, manufacturer's model No. and

number of leads.

The first character should be an English letter (A to Z).

(1) Component Name (Abbreviation for Component Name)

Each component name is expressed using its specified compo-

nent abbreviation.

Example: "C1608T08---"

Capacitor of 1.6 × 0.8 mm in Size and 0.8 mm in Thick-

ness

3.1 General Components (ICs excluded)

0206-003 3-2 Tg0502-PM-CL

Component ID:

13121110987654321 15 16

3.1.1 Component Name, Component

Size, Component Thickness,

Manufacturer's Model No. and

No. of Leads

3.1.2 Serial No.

3.1.3 Abbreviated Name of

Component Makers

Fig. C1

3.1.4 Taping

Specifications

Corresponding Table for Component Name and Component

Abbreviation

Basic Form for Component ID (first 8 characters)

{{{{ ...... shows the component size.

T .......... shows the component thickness.

Table C1

Component Type Abbr. Part Name ID (First 8 Digits) Remarks

R R Resistor (Square) R{{{{T

R Resistor (Cylindrical) R{{{{M - -

RW Resistor W Chip RW{{{{ - -

RN Resistor Network RN{{{{X

 : Number of Resistors

C C Capacitor (Square) C{{{{T

C Capacitor (Cylindrical) C{{{{M - -

ALC Aluminum Electrolytic Capacitor ALC{{{{ -

TAN Tantalum Capacitor TAN{{{{  : Case Name

L I Inductor I{{{{T

COIL Coil COIL{{{{

VL Variable Coil VL{{{{ - -

FL F Filter F{{{{T

AMF AM Filter AMF{{{{ -

FMF FM Filter FMF{{{{ -

LCF LC Filter LCF{{{{ -

DI DI Diode DI{{{{ - 

DI Diode (Cylindrical) DI{{{{M -

TR TR Transistor TR{{{{ - 

PTR Power Transistor PTR{{{{ -

CPTR Compact Power Transistor CPTR{{{{

MPTR Mini Power Transistor MPTR{{{{

HEMT Cross-Shaped Component HEMT{{{{

VR VR Semi-Fixed Variable Resistor VR{{{{ - -

LED LED LED LED{{{{ -

TC TC Trimmer Capacitor TC{{{{ - -

CN CN Connector CN{{PIN - {: # of Pins

SW SSW Slide Switch SSW{{{{ -

PSW Push Switch PSW{{{{ -

TSW Tact Switch TSW{{{{ -

CSA CSA Oscillator CSA{{{{ -

SMG Frequency Synthesizer SMG{{{{ -

ETC EMIS EMI Suppressor EMIS{{{{

LCT LC Trap LCT{{{{ -

SUG Surge Absorber SUG{{{{ -

THM Thermistor THM{{{{ -

CHE Check Terminal CHE{{{{ -

DIS Discriminator DIS{{{{ -

PHC Photocoupler PHC{{{{ -

HOL Hall Terminal HOL{{{{ -

PC Mini Probe Terminal PC{{{{ - -

IFT Chip IFT IFT{{{{ -

3.1 General Components (ICs excluded)

0111-002 3-3 Tg0502-PM-CL

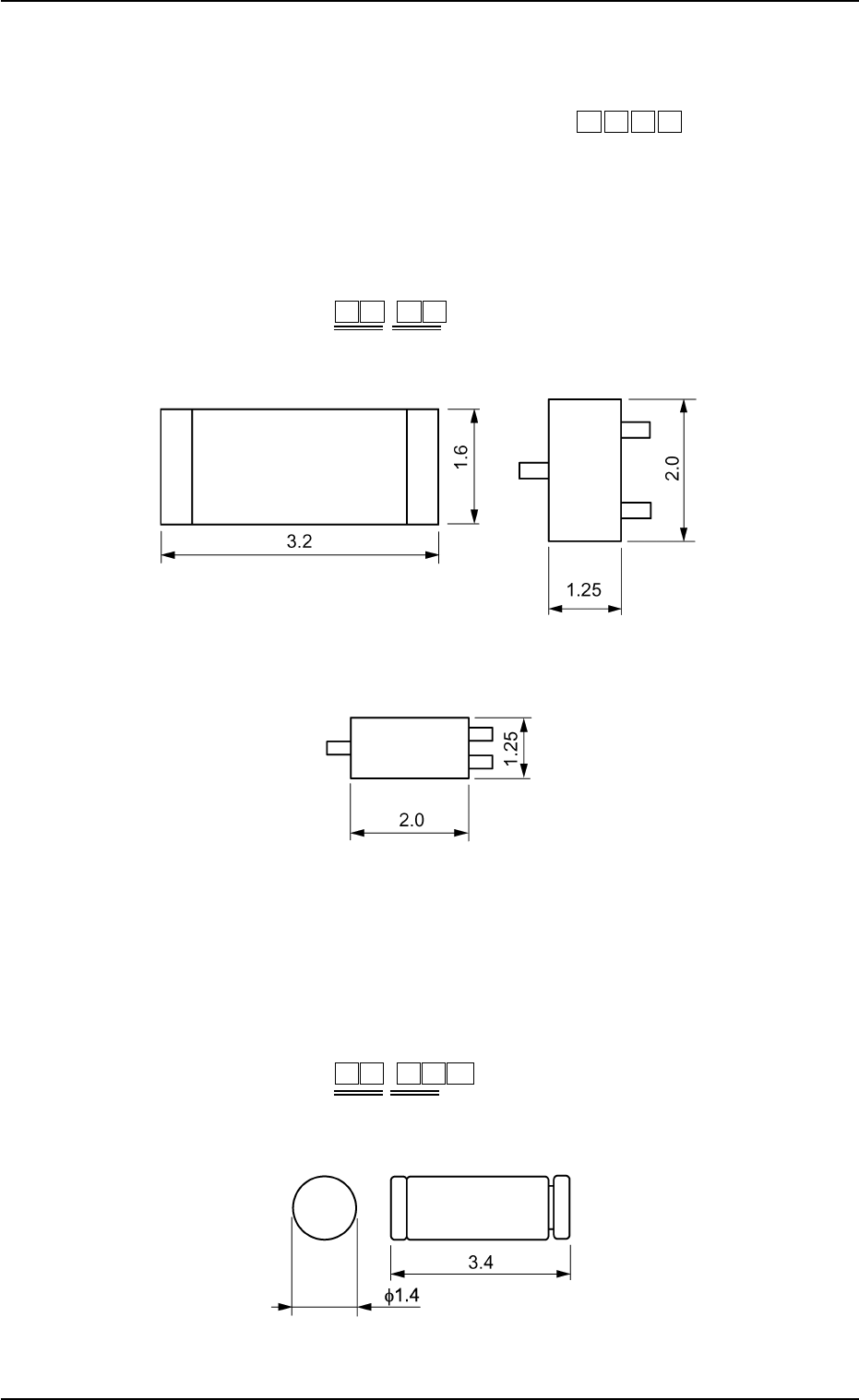

(2) Component Size, Thickness, Maker's Component Type No., and

(2.1) (Component Size)

Component dimensions are specified in X X X X after the

abbreviated component name.

Example: (a) Components other than cylindrical ones

Component's longer side is regarded as "a" and

the shorter side as "b".

X X X X

For Condenser "C3216T07B0---"

Unit: mm

For Transistor "TR2012-3B0SAN-L1"

Unit: mm

(b) Cylindrical Components

The long side of the component is assumed to be

"c", the diameter "d" and the mark for the cylinder

"M".

X X X X M

For Diode "DI3414M"

3.1 General Components (ICs excluded)

0111-002 3-4 Tg0502-PM-CL

Fig. C2

Fig. C4

a b

Fig. C3

x d

Unit: mm
