3.1 General Components (ICs excluded)
0107-001 3-8 Tg0502-PM-CL
Fig. C7
3.1.4 Taping Specifications
(1) Applicable Components
Component Type Abbreviations Part Name
DI DI Diode
TR HEMT HEMT (Cross-Shaped Components)
TR Transistor
CPTR Compact Power Transistor
MPTR Mini Power Transistor
PTR Power Transistor
TC TC Trimmer Capacitor
VR VR Semi-Fixed Variable Resistor
(2) How to Determine Packaging Direction
Packaging directions are determined as shown below, following
"JIS C0806 Taping of Electronic Components".
Table C3
3.1 General Components (ICs excluded)
0107-001 3-9 Tg0502-PM-CL
(3) Taping Specifications
15th and 16th cells are added in the component ID, representing
the taping specifications. Each character in the cells represents
the following.
Component ID: 15 16
15th Cell : The specified character represents the location
(direction) of leads.
L : This represents that leads are located on the left side
in the user direction of component feed.
R : This represents that leads are located on the right side
in the user direction of component feed.
F : User Direction of Component Feed
B : Backward Direction
16th Cell : The specified character represents the number or
thickness of leads.
1 : 1 pc.
2 : 2 pcs.
3 : 3 pcs.
B: Thick Lead
Example:(a)
TR1608-3B0SAN- L 1
This represents that there is a lead on the "L" side
in the user direction of component feed.
(b)
TR2915-4B0SAN- R B
This represents that there is a thick lead(s) on the
"R" side in the user direction of component feed.
3.1 General Components (ICs excluded)
0107-001 3-10 Tg0502-PM-CL
Fig. C8
Fig. C9
Fig. C10
Fig. C11
Fig. C12

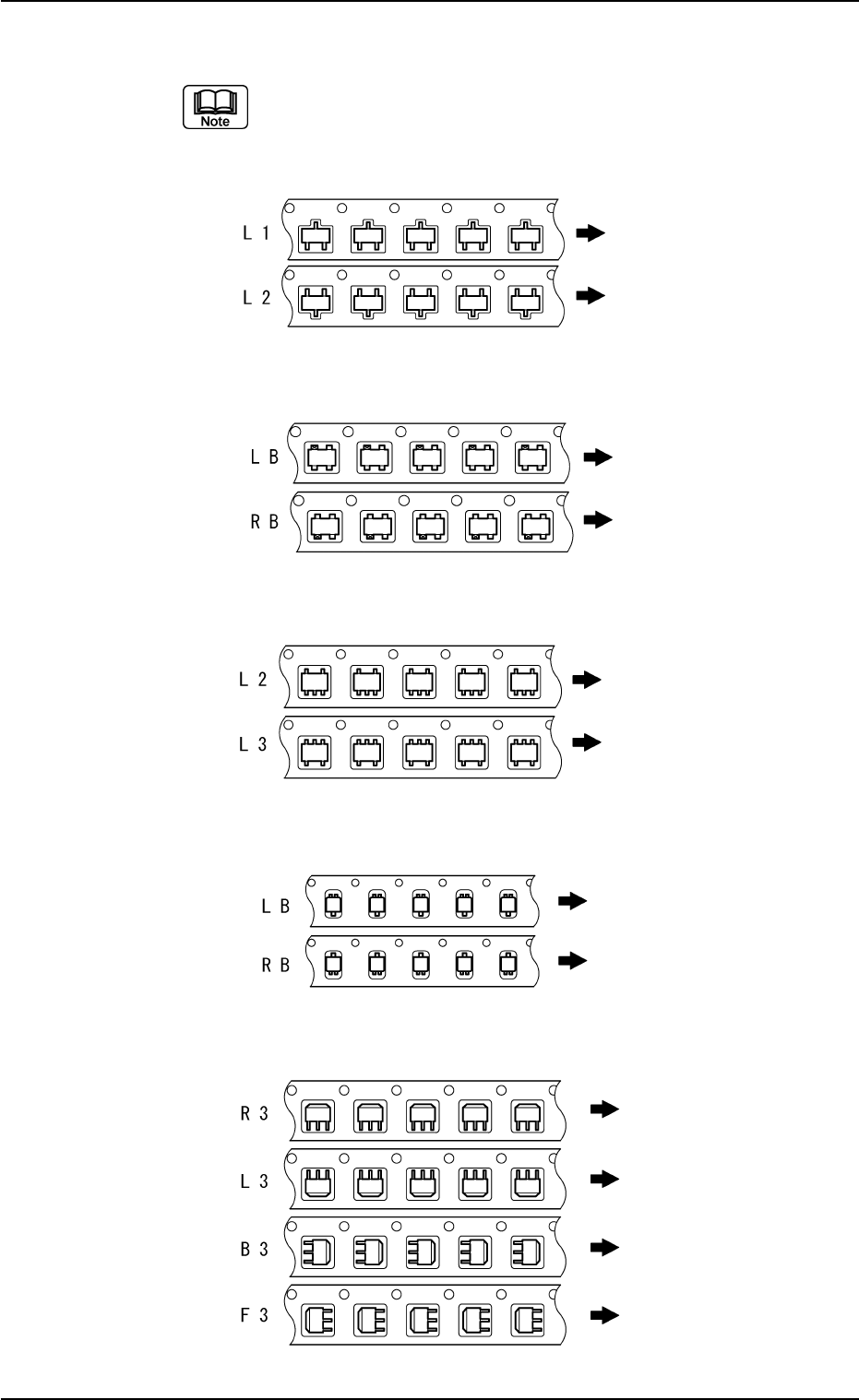

(4) Examples of Taping (Specifications)
The arrows in the figures represent the user direction of
component feed.
TR and DI with 3 Terminals
TR and DI with 4 Terminals
TR and DI with 5 Terminals
DI with 2 Terminals
PTR, CPTR, and MPTR
