0107-001 3-11 Tg0502-PM-CL 3.1 General Components (ICs excluded) Fig. C13 Fig. C14 Fig. C15 Semi-Fixed V ariable Resistor (2 terminals on one side) Semi-Fixed V ariable Resistor and TC (3 terminals on one side) HEMT

3.1 General Components (ICs excluded)

0107-001 3-10 Tg0502-PM-CL

Fig. C8

Fig. C9

Fig. C10

Fig. C11

Fig. C12

(4) Examples of Taping (Specifications)

The arrows in the figures represent the user direction of

component feed.

TR and DI with 3 Terminals

TR and DI with 4 Terminals

TR and DI with 5 Terminals

DI with 2 Terminals

PTR, CPTR, and MPTR

0107-001 3-11 Tg0502-PM-CL

3.1 General Components (ICs excluded)

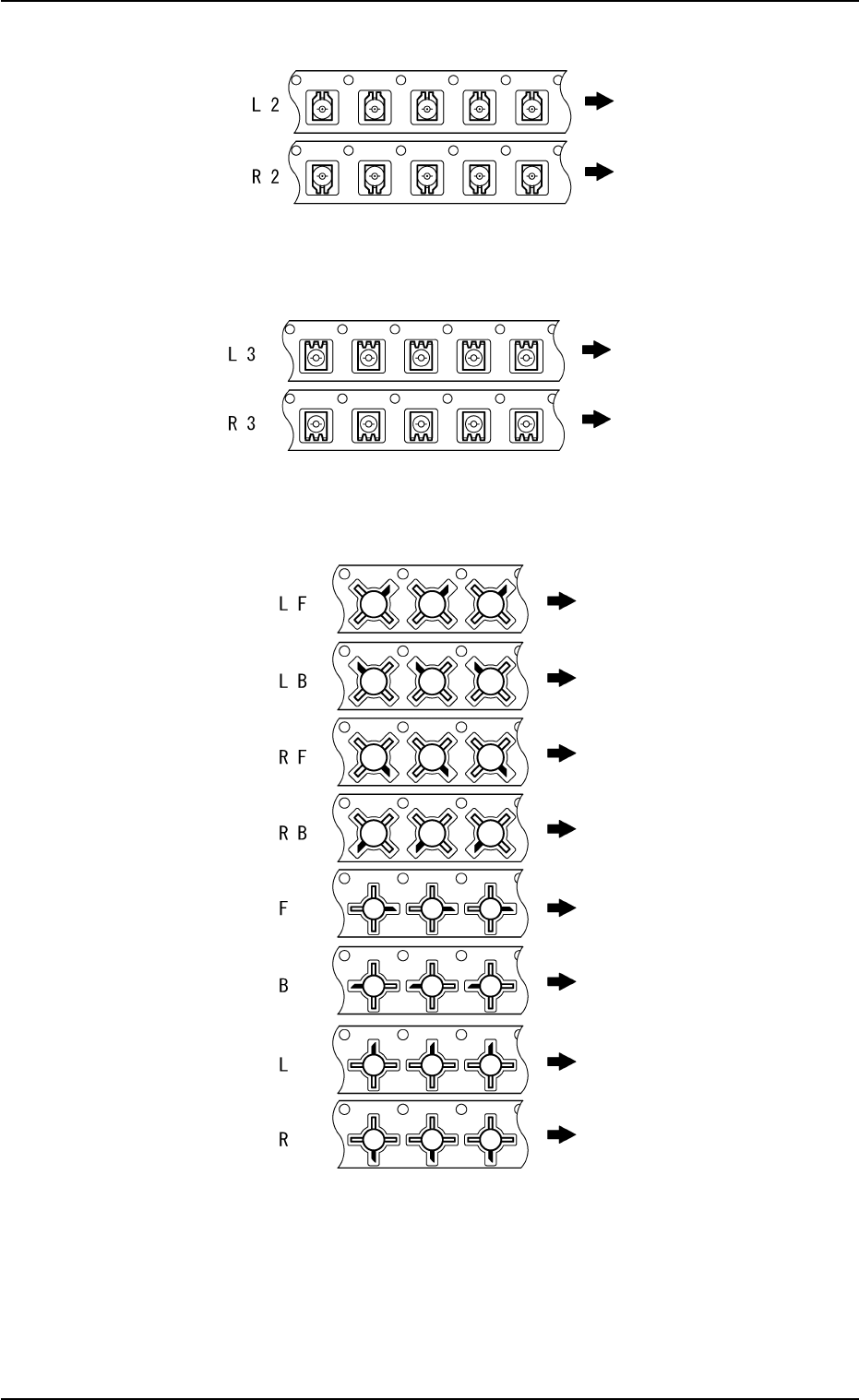

Fig. C13

Fig. C14

Fig. C15

Semi-Fixed Variable Resistor (2 terminals on one side)

Semi-Fixed Variable Resistor and TC (3 terminals on one

side)

HEMT

3.2 ICs

3.2.1 Component Name and No. of Leads

The characters from the first to the seventh show the component name

and number of leads.

Be sure to use an English letter (A to Z) in the 1st cell.

(1) Component Names (Abbreviated Ones)

Each component name is expressed using its specified compo-

nent abbreviation.

Example: "SOP008-"

SOP-Type IC with 8 Leads

3.2 ICs

Component ID:

13121110987654321 15 16

3.2.1 Component Name and No

of Leads

3.2.2 Serial No.

3.2.3 Abbreviated Name of

Component Makers

3.2.4 Taping

Specifications

0111-002 3-12 Tg0502-PM-CL

Fig. C16
