Section 2
Component Library Data
0107-001 2-A Tg0502-PM-CL
This section shows the list of component library data and
describes the details of each data.
0107-001 2-B Tg0502-PM-CL

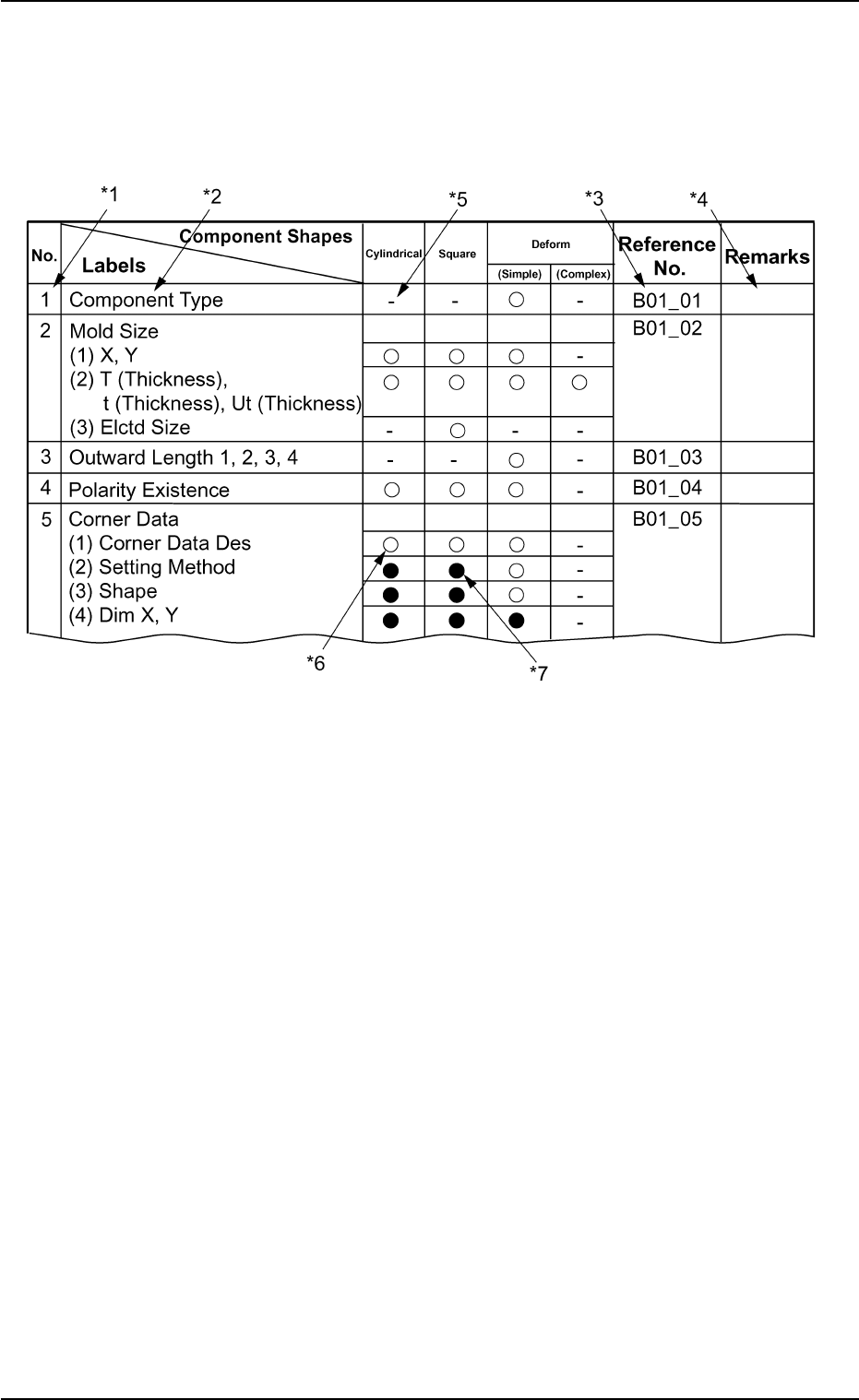

1. List of Data
The following list is made to distinguish each data by component shapes.
How to view the list
*1 No. : Serial Nos.
*2 Labels : Names of Data in Component Library
*3 Reference No. : Item Nos. to be referred to for the data described
in "2. Data Explanation"
Common Component Data
A01: Identification Data
A02: Control Data
A03: Carrier Data
Individual Component Data
B01: Shape Data
B02: Recognition Data
*4 Remarks : Special Items
*5 - : It is not necessary to set any data.
*6 { : Standard Data
Data setting is required.
*7 z : Extended Data
Data setting is required for special components.
0107-001 2-1
Tg0502-PM-CL
1. List of Data
Fig. B1
