B02 List of Recognition Data T able B9 1.2 List of Individual Component Data 0206-003 2-10 Tg0502-PM-CL No. Component Shapes Labels Reference No. Remarks 1 Lighting system 2 Recognition data set 3 Recognition level 4 Bac…
1.2 List of Individual Component Data
0111-002 2-9 Tg0502-PM-CL
1.2.3 Area Array Components
B01 List of Shape Data
Table B8
No.
Component Shape
Labels
Reference
No.
Remarks
1 Mold size
(1)X,Y
(2)T(Thickness),
t(Thickness),
Ut(Thickness),
2 Polarity existence
3 Electrical Contact Data
(1)Grid Type
(2)Image
(3)# of types
(4)# of groups
(5)Extended setting
4 Electrical Type Data
(1)Shape
(2)Dim1
5 Electrical Group Data
(1)Type No.
(2)Grp Posn X,Y
(3)# of Rows,# of Cols
(4)Row Pitch,Col Pitch
(5)Missing Elctd Set
(6)# of Missing
6 Missing Elctrode Data
(1)Missing Elctd No.
(2)Missing Stg Row,
Missing Stg Col
(3)# of Missing Rows,
# of Missing Cols
BGA/CSP
{ B01_02
{ B01_04
B01_11
{
z
z
z
{
B01_12
{
{
B01_13
z
z
{
{
z
z
z B01_14
B02 List of Recognition Data
Table B9
1.2 List of Individual Component Data
0206-003 2-10 Tg0502-PM-CL
No.
Component Shapes
Labels
Reference
No.
Remarks
1 Lighting system
2 Recognition data set
3 Recognition level
4 Back ltg recog algo,
Front ltg recog algo
5 Lighting Pattern
(1)Ltg pattern designation
(2)Back ltg
(3)Front ltg(Up)
(4)Front ltg(Mid)
(5)Front ltg(Dn)
6 View range set
7 Electd pos detn/
Electd pos tol
8 Electd size detn/
Electd size tol
9 Polarity detn Data
(1)Plarity detn
(2)Inspection method
(3)Polarity position X, Y
(4)Inspection range
(5)Inspection range image
BGA/CSP
{ B02_01
{ B02_02
z B02_03
z B02_04
z B02_05
z B02_06
z B02_13
z B02_14
z B02_16
2. Data Explanation
A01 Identification Data
(A01_01) Component ID
Set a name of the component library data.
The component library data is classified according to the set name.
Set the name according to the following requirements.
Number of Characters : Up to 32 characters
Alphanumerics : A to Z, a to z, 0 to 9
Marks : Any marks on the keyboard excluding fol-
lowing ones. [ ' ] [ : ] [ * ] [ , ] [ ? ]
(a) No blank can be set between characters.
(b) No blank can be set before and after a component ID (a string of
characters).
(c) No component ID can be specified, using only hyphens (-).
Component ID
Fig. B5
C1610M--BOYUD
0111-002 2-11 Tg0502-PM-CL
2. Data Explanation (A01_01)

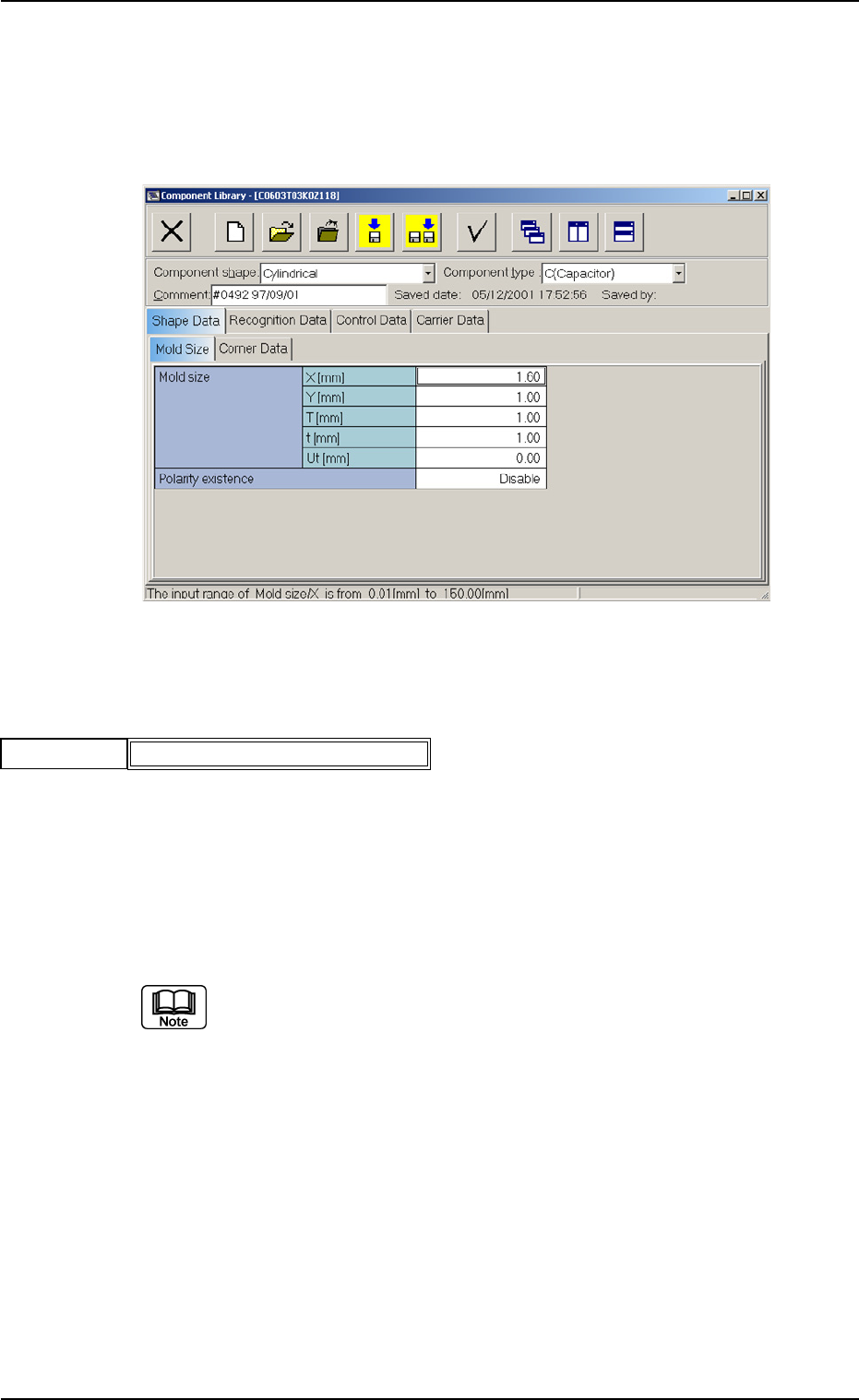

Fig. B4 Edit Window (Example) for Cylindrical Components
