A02 Control Data A02 Control Data 01 11-002 2-13 Tg0502-PM-CL Fig. B9 Edit Window (Example) for Cylindrical Components

(A01_02) Comment

Set a special item, etc.

Set the comment according to the following requirements.

Number of Characters : Up to 32 characters.

Alphanumerics : A to Z, a to z, 0 to 9

Marks : Any marks on the keyboard excluding fol-

lowing ones. [ ' ] [ : ] [ * ] [ , ] [ ? ]

(A01_03) Component Shape

Set the shape of a component.

Select one of the following options.

Table B10

Leadless Components • Cylindrical

• Square

• Deform (Simple)

• Deform (Complex)

Leaded Components • IC (Simple)

• IC (Complex)

• Connector (Simple)

• Connector (Complex)

• Other Leaded (Simple)

• Other Leaded (Complex)

Area Array • BGA/CSP

(A01_04) Component Type

Set the type of a component.

Select one of the following options.

• R (Resistor) • IC (Integrated Circuit)

• SW (Switch) • C (Capacitor)

• VR (Variable Resistor) • CSA (

Ceramic Sense Amplifier Oscillator

)

• L (Coil) • LED (Light Emitting Diode)

• ETC (Others) • FL (Filter)

• TC (Trimmer Capacitor) • DI (Diode)

• T (Transformer) • TR (Transistor)

• CN (Connector)

Comment

Fig. B6

Cylindrical

Component Shape

Fig. B7

C (Capacitor)

Component Type

Fig. B8

0107-001 2-12 Tg0502-PM-CL

A01 Identification Data (A01_02), (A01_03), (A01_04)

A02 Control Data

0111-002 2-13 Tg0502-PM-CL

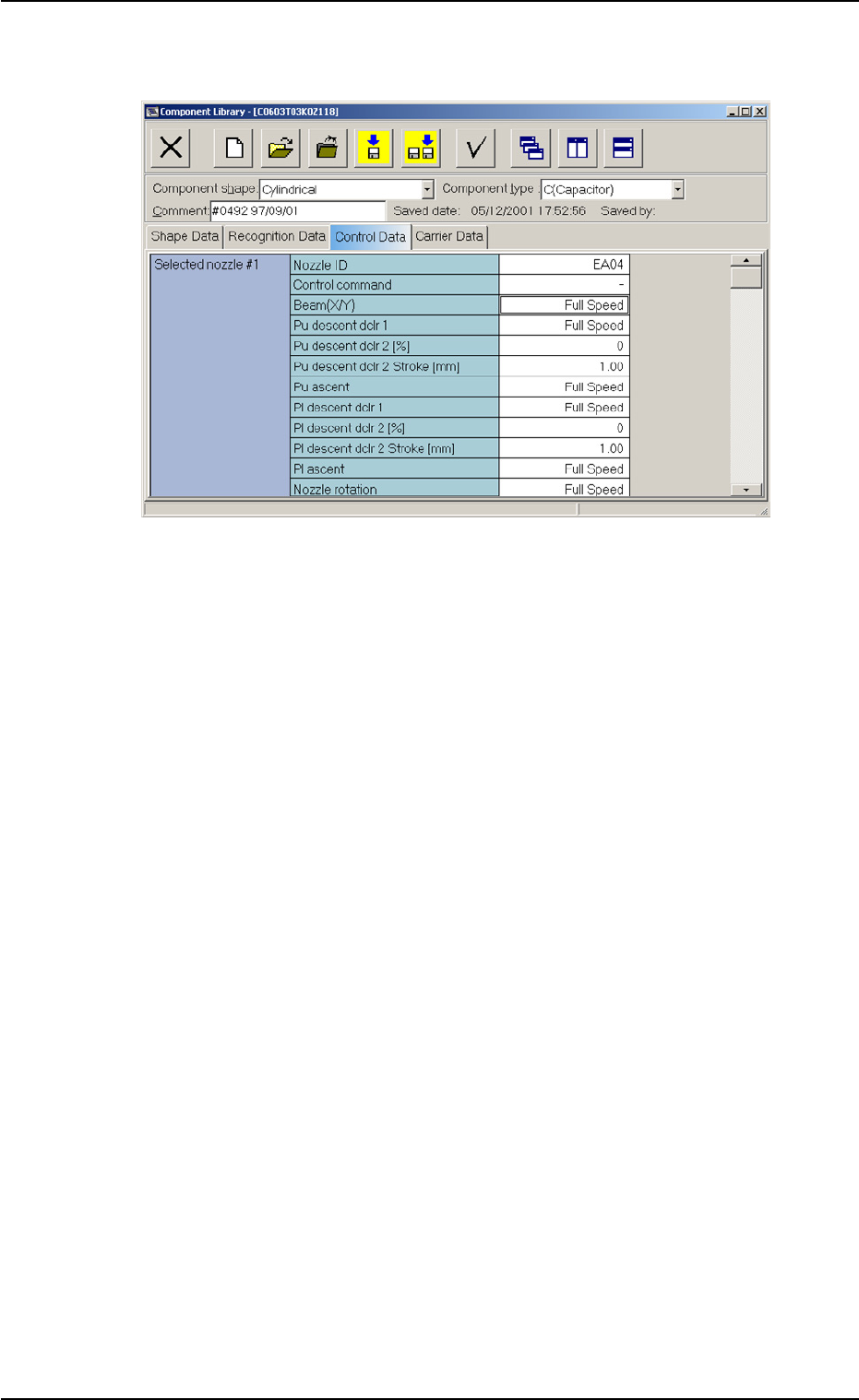

Fig. B9 Edit Window (Example) for Cylindrical Components

Set the "Selected Nozzle #1" to be used for component pick-up.

The nozzles are distinguished by the differences in end size, shape, length,

etc., and managed by using the nozzle IDs.

(1) Nozzle ID

Set the nozzle ID for the nozzle to be used.

(2) Control Command

Set a parameter to determine whether or not this nozzle should be

used.

Select one of the following options.

−−

− : Select this when this nozzle is used.

S: Select this when this nozzle is not used.

(3) Beam (X/Y)

Select one of the following options to designate the rate of the X/Y

beam speed reduction during component pick-up.

Full Speed 10% Decr 20% Decr 30% Decr 40% Decr

50% Decr 60% Decr 70% Decr 80% Decr 90% Decr

(A02_01) Selected nozzle #1

A02 Control Data (A02_01)

0111-002 2-14 Tg0502-PM-CL

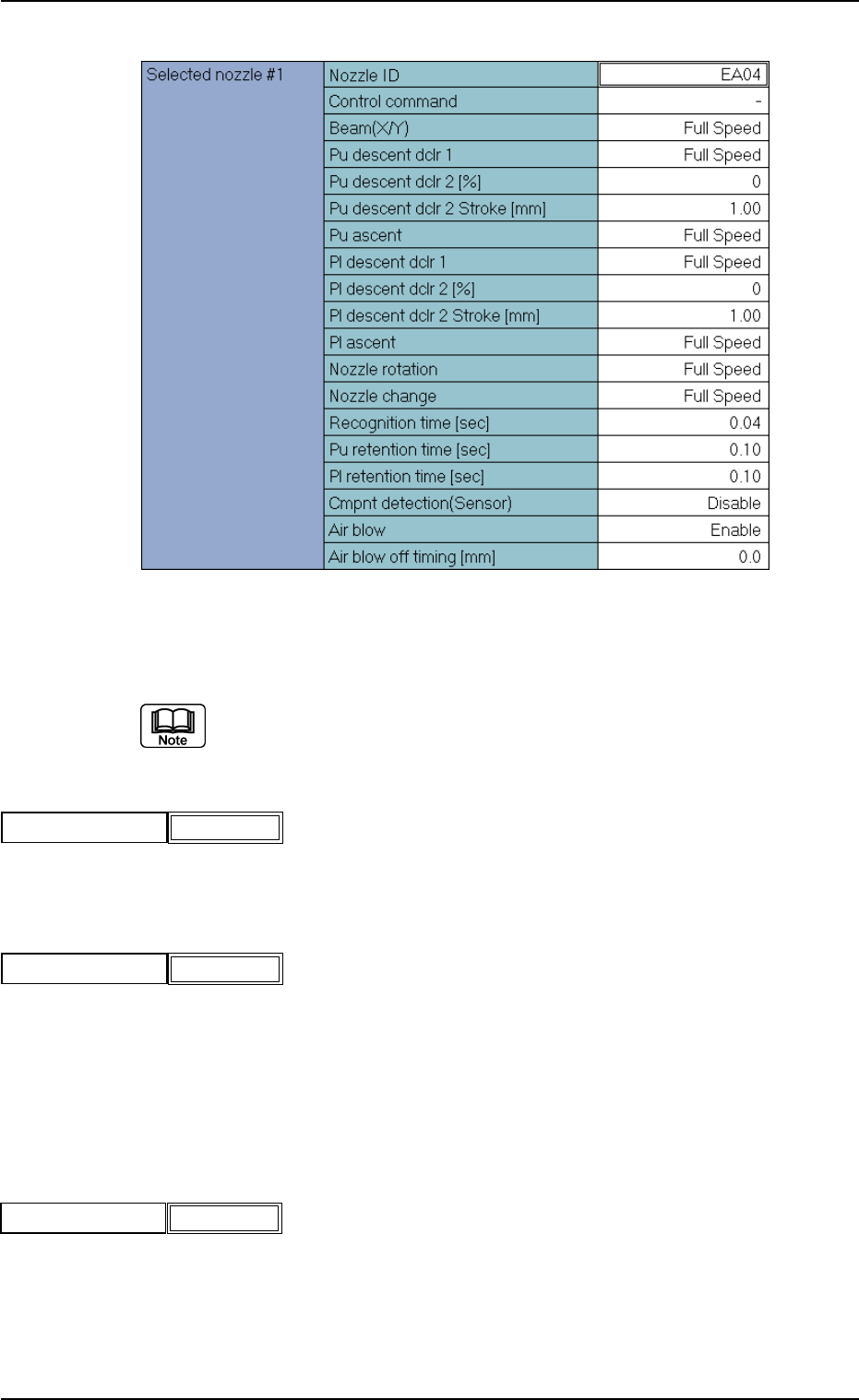

Fig. B10 Edit Window (Example) for Cylindrical Components

Fig.B11

Nozzle ID

Fig.B12

Control command

Fig.B13

Beam(X/Y) Full Speed
